Honeywell ControlEdge 2020 SC-TEPR01 User Manual

85
from the toolbar. Click Make.
14.

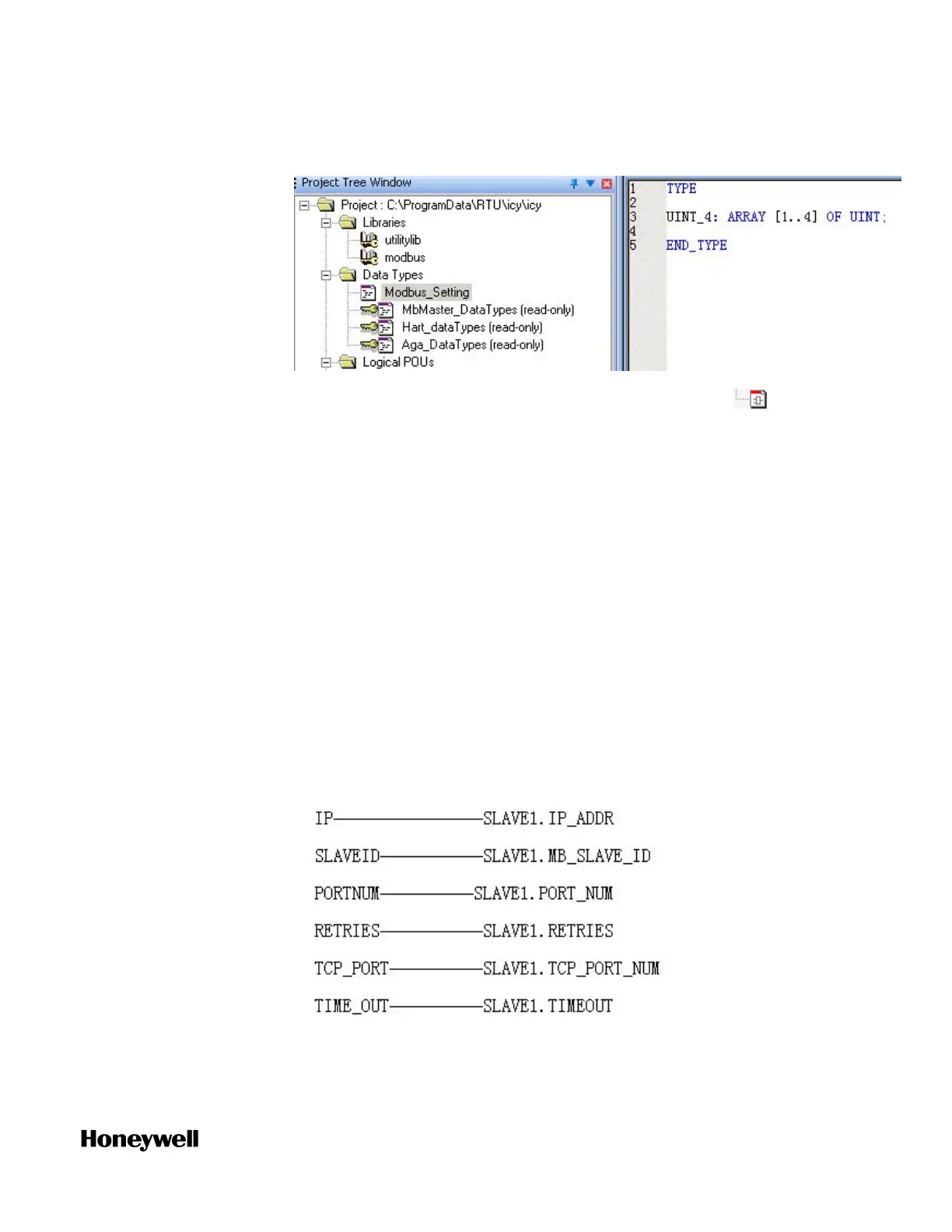

Under Logical POUs, double-click the code worksheet of the
program that you have inserted.
15. Drag the target function or function block of modbus from the
Edit Wizard pane into the code worksheet, and configure the
parameters. Take MB_RD_MHR as an example.
16. Double-click the pin-outs of the function or function block to
assign variables.
To assign initial values to CONFIG_INFO:
CONFIG_INFO, a predefined data structure for Modbus
configuration information, is the crucial input for Modbus master
function blocks and contains key Modbus communication
parameters such as IP address of slave, slave ID, port number of the
controller to be used, etc. This data structure is read-only and
cannot be viewed and edited in ControlEdge Builder. See
"Description of CONFIG_INFO" on page1 for more details. Slave1 is
the variable name assigned by the user of CONFIG_INFO.
17. Assign the data returned by the function block to variables to
Chapter 6 - Communication

Honeywell ControlEdge 2020 SC-TEPR01 Specifications

General

Model	SC-TEPR01
Category	Controller
Series	ControlEdge 2020
Power Supply	24V DC
Enclosure Rating	IP20
Operating Temperature	-40 to 70 °C
Inputs	Digital and Analog Inputs
Outputs	Digital and Analog Outputs
Communication	Ethernet, Serial

Summary

Software

Installing ControlEdge Builder

Provides system and resolution requirements for installing ControlEdge Builder, along with installation steps.

Launching ControlEdge Builder

Creating a Project

Details the process of creating a new project, selecting templates, and saving project configurations within ControlEdge Builder.

Configuring Controller Hardware

Covers setting controller name, IP addresses for non-redundant and redundant controllers, and their factory default settings.

Configuring Controller Redundancy

Explains the procedures for disabling and enabling controller redundancy, including IP address configuration implications.

Configuring an I/O Module

Guides on configuring onboard and expansion I/O modules for ControlEdge 900 and 2020 controllers, including third-party I/O.

Programming with IEC 61131-3

Introduces general programming concepts using IEC 61131-3, including adding libraries, creating data types, variables, and POUs.

Operating

Connecting a Controller

Details how to connect to a physical controller or simulator using ControlEdge Builder, including selecting controller type and credentials.

Downloading a Project to the Controller

Outlines the steps for downloading a compiled project to the controller, ensuring prerequisites are met and handling different download scenarios.

Configuring Date/Time

Upgrading Firmware

Provides general information and prerequisites for upgrading firmware on controllers, EPMs, I/O modules, and field devices.

Upgrading Firmware for a Non-Redundant Controller

Step-by-step guide for upgrading firmware on non-redundant controllers, including interactive and non-interactive modes.

Upgrading Firmware for a Redundant Controller

Details on-process and off-process procedures for upgrading firmware on redundant controllers, with specific steps for ControlEdge 2020 and 900.

Communication

Configuring Modbus

Covers setting up controllers as Modbus TCP Slave, Modbus TCP Master, and Modbus Serial Master, including protocol binding and parameters.

Configuring EtherNet/IP Devices

Configuring OPC UA

Configuring DNP3 Slave

Configuring HART

Configuring CDA

Configuring Wireless I/O

Security

Logon Feature

Setting Operating Modes

Built-in Firewall

Configuring IPsec

Outlines steps for configuring IPsec to support secure communications between Experion and controllers, involving certificate creation and policy setup.
