CHAPTER
5
OPERATING
Connecting a controller
Click Connect from the Home Page, and the Connect controller page
appears.
1. From the Home Page, click Connect, the Connect controller page
appears.
2. Click Scan and Select tab and select the target controller.
Or click IP Address tab and enter the IP address of the target
controller.
You can connect to a physical controller or a controller
simulator.Select the controller type:
l
: ControlEdge 2020 controller
l
: ControlEdge 2020 controller simulator
l : ControlEdge 900 controller
l
: ControlEdge 900 controller simulator
3. Select the user name and enter the password.
4. Click Connect.

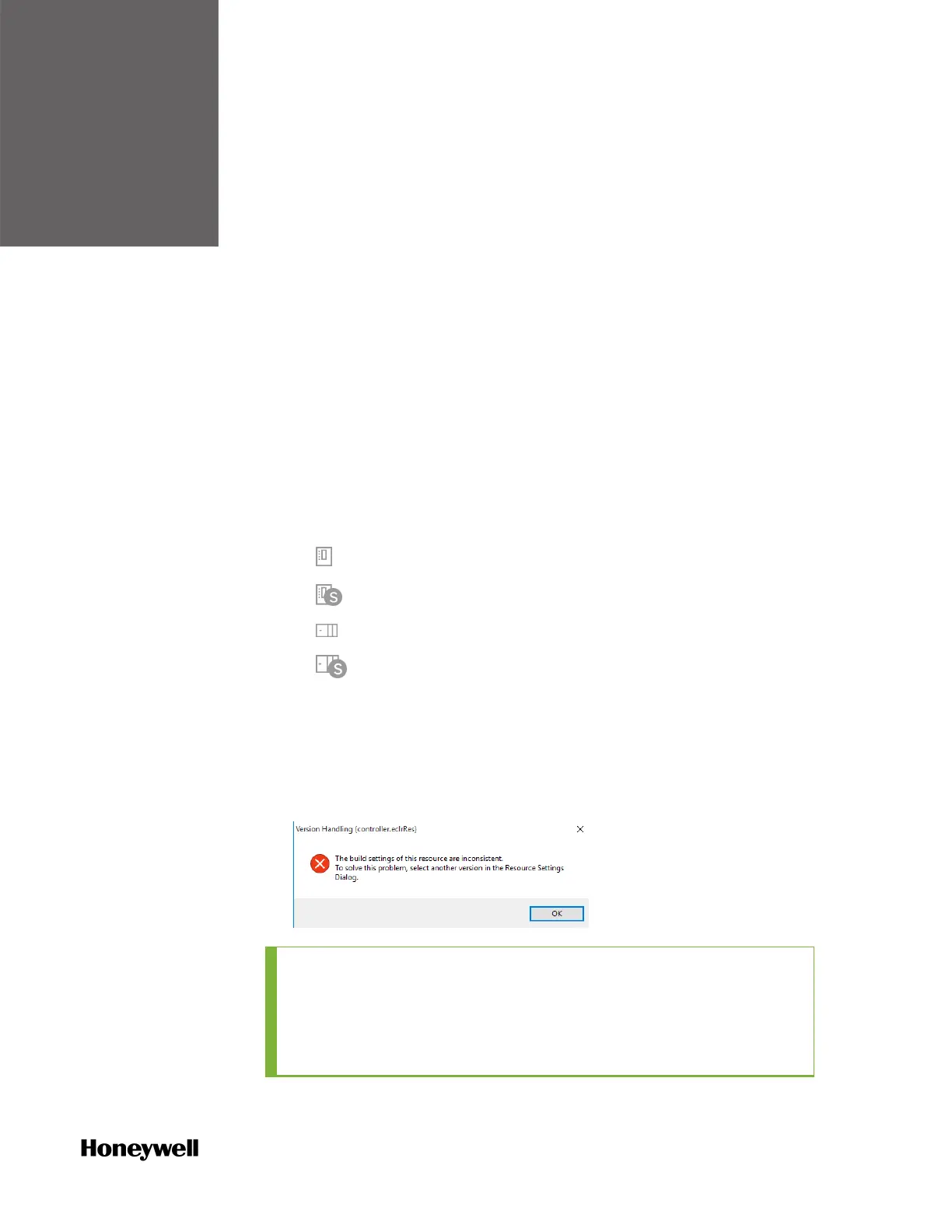

If the current and previously connected controller types are
different, the following dialog appears. Click OK to automatically
configure the settings.
TIP: Due to the cyber security, ControlEdge Builder will
disconnect with the controller automatically if there is no
communication between them including displaying the
diagnostic view, uploading the datalog, downloading the
67
