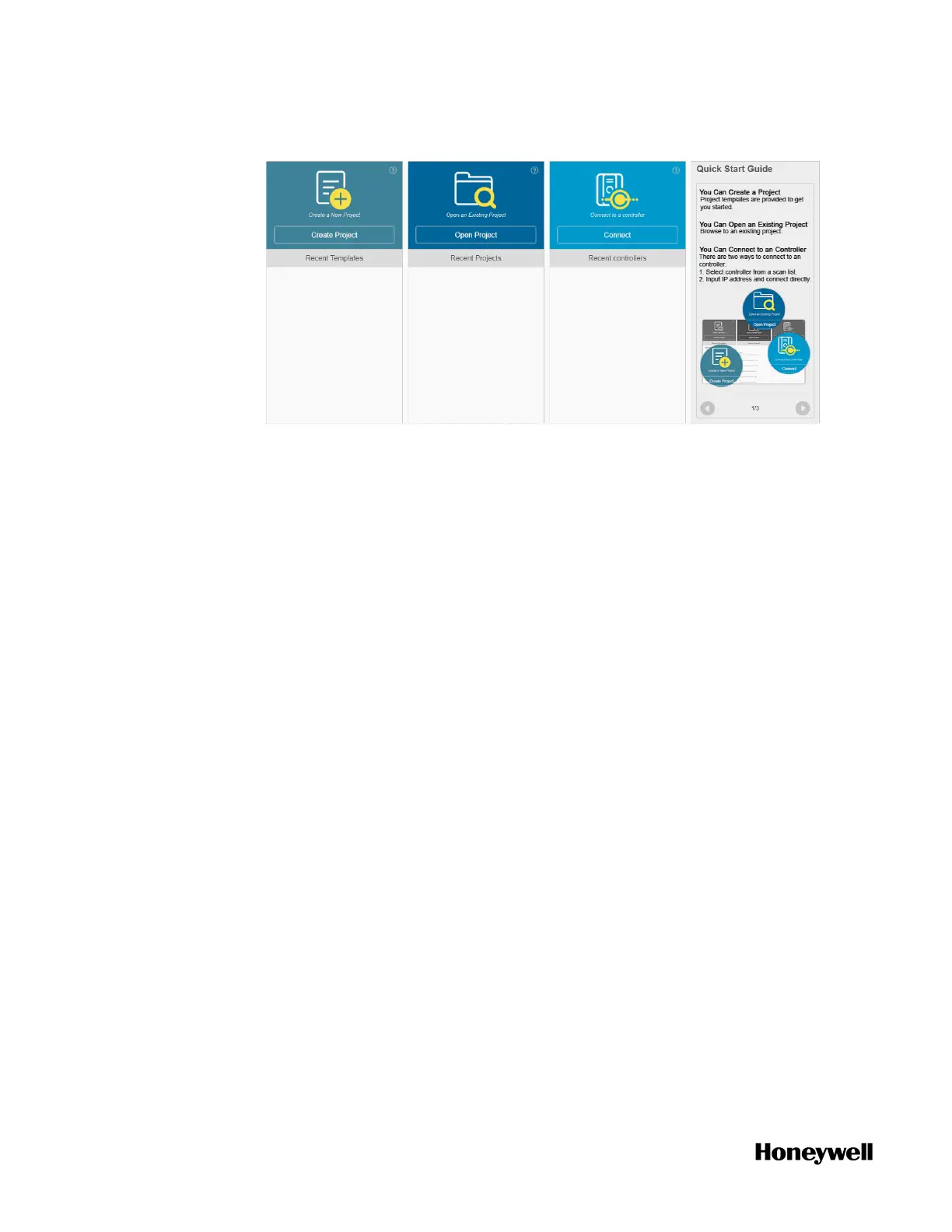

Figure 4-1: Start Page
Checking firmware versions
Before configure the controller, make sure all the hardware modules
used in the system are installed with the right firmware version.
Otherwise, you should upgrade the firmware first. See "Upgrading
firmware" on page70 for more information.
Creating a project
This section introduces how to create a new project. The
configuration and programming details are stored in the project.
To create a new project
1. From the Start Page, click Create Project.
2. In the Create New Project from Template window, click General and
select the target template from the Available Templates list.
l Select 900cp1 to create a project for a ControlEdge 900
controller.
l Select SC-UCMX01 or SC-UCNN11 to create a project for a
ControlEdge 2020 controller.
l SC-UCMX01 is for a non-redundant controller.
l SC-UCNN11 is for a redundant controller.
3. Click Next. The Save As window appears.
4. Select an appropriate directory to save the project and enter a
name for the project in the File name field.
42
Chapter 4 - Software
