EnCal 3000
Hardware
Manual
73022344 o
37

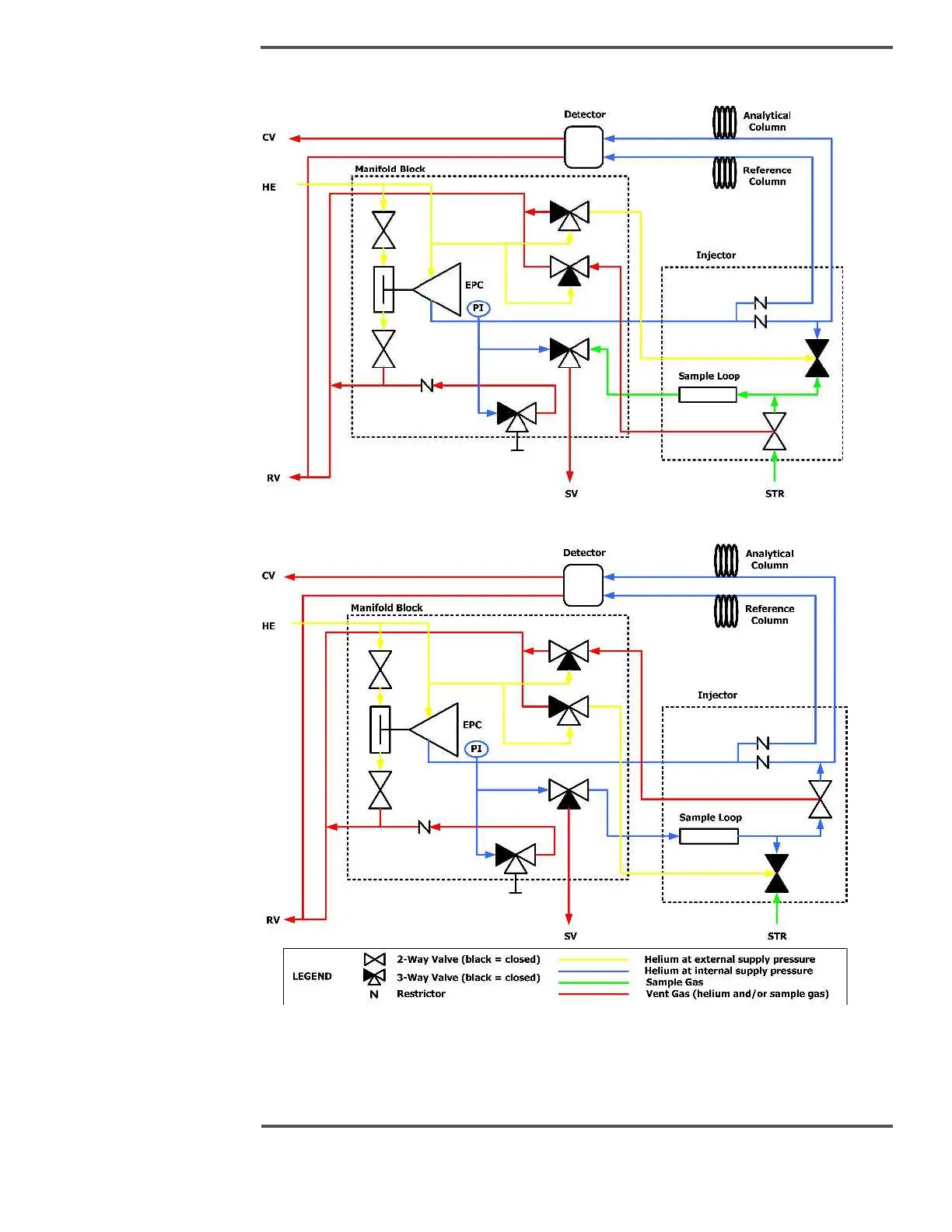

Figure 5.3: Internal Gas Flow Circuit for each Analytical Channel of the EnCal 3000,
during Normal Operation (top) and sample Injection (below)
