Honeywell HC30W45R3 Configuration Guide

Performance Series IP Camera Software Configuration Guide
8

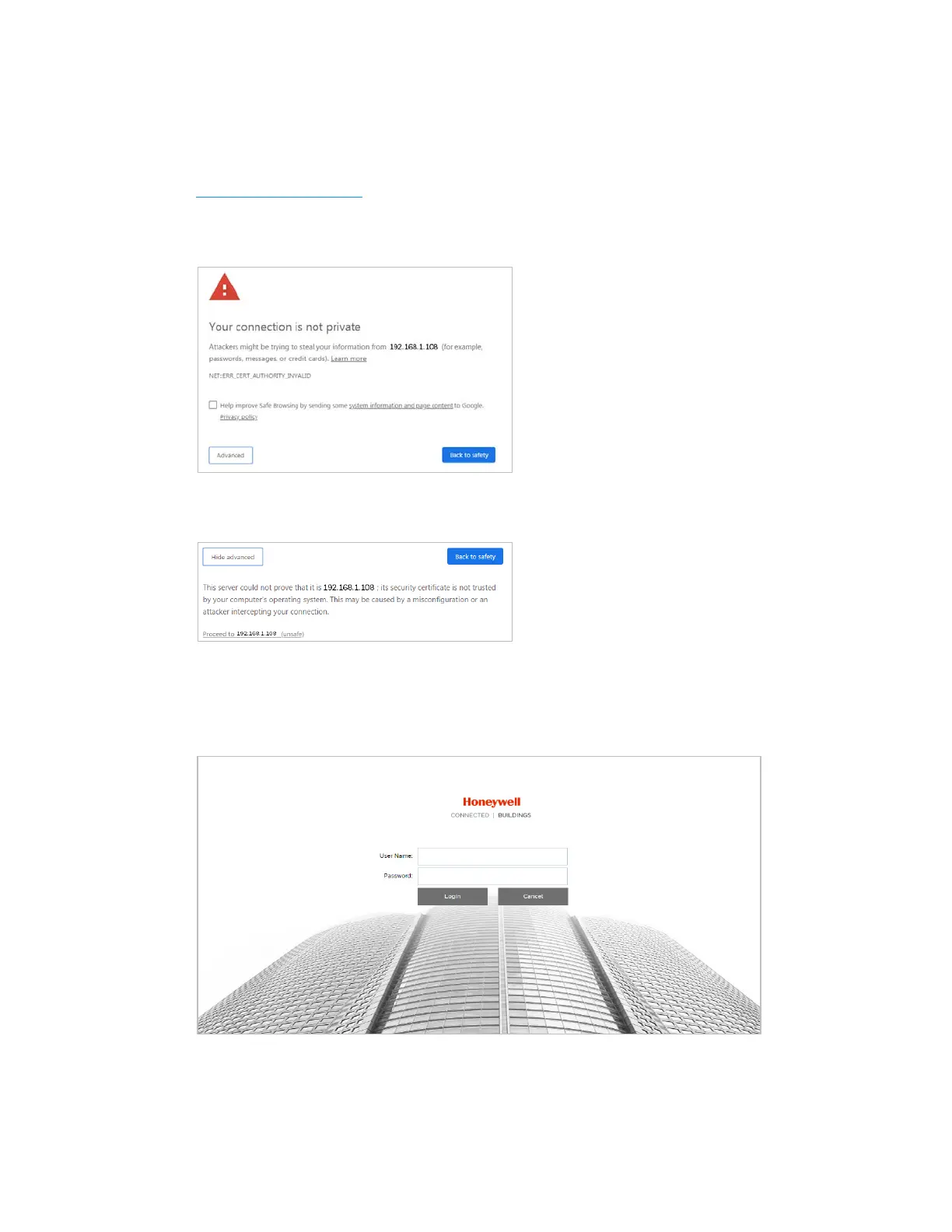

Logging in Via Google Chrome
1. Open Google Chrome, type the camera’s IP address in the address bar, and then click
Enter. For example, if your camera’s IP address is 192.168.1.108, you would type
https://192.168.1.108.
2. The following window is displayed. Click Advanced.
Figure 3-4 Safety Problem
3. The following window is displayed. Click Proceed to 192.168.1.108 (unsafe).
Figure 3-5 Security Certificate Problem
For how to resolve the security certificate problem, see Export CA Certificate on page 85.
4. The login screen is displayed. Enter the admin user name and password, and then click
Sign in.
Figure 3-6 Login Page

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
