Honeywell HC30W45R3 Configuration Guide

Configuring Storage Settings
75

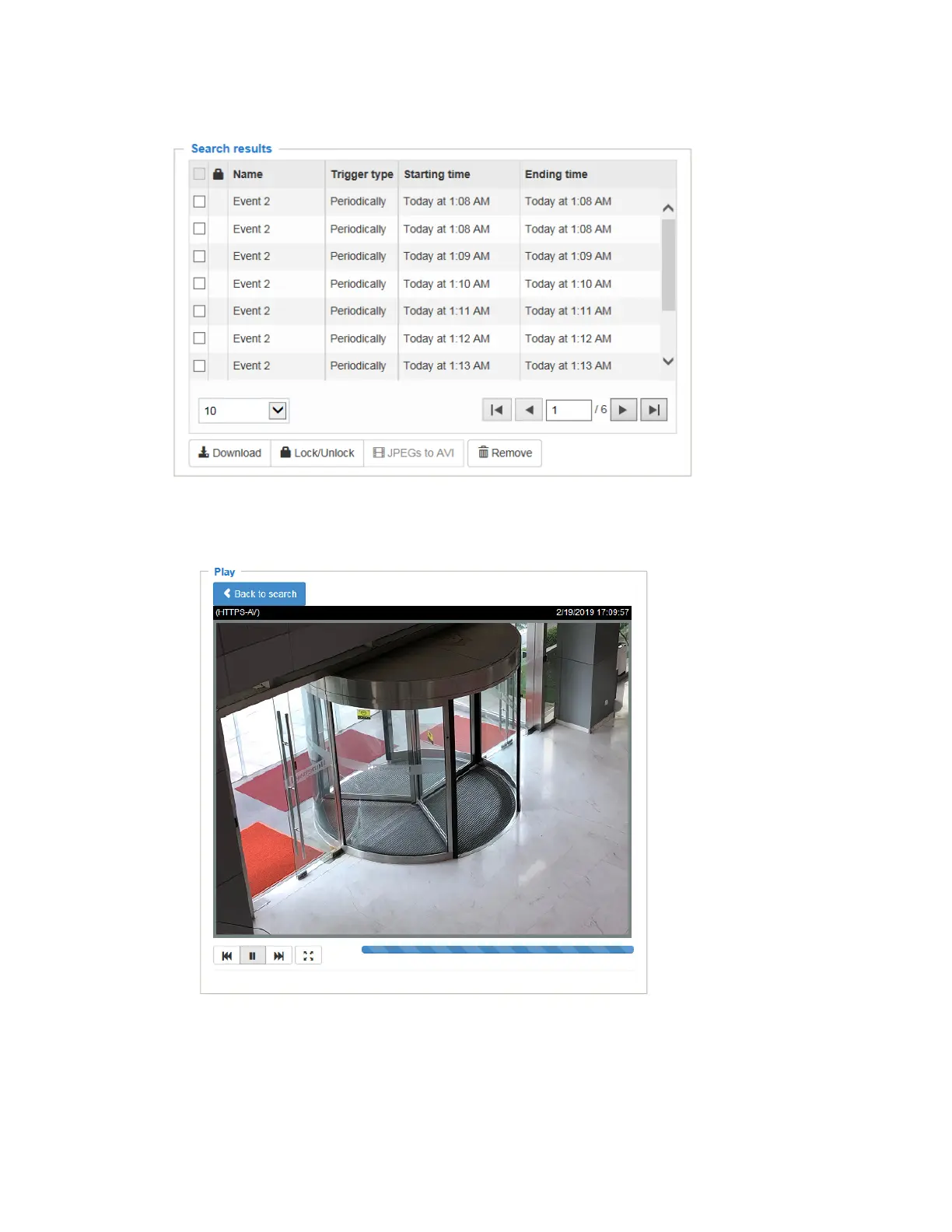

Figure 7-6 Search Results
• Play: Click on a search result and a Play window will be displayed for immediate review of
the selected file.
Figure 7-7 Play
• Download: Click on a search result and click Download, and a file download window will
pop up for you to save the file. You can play the video clip by VLC player.
• JPEGs to AVI: This functions only applies to “JPEG” format files such as snapshots. You
can select several snapshots from the list, then click this button. Those snapshots will be
converted into an AVI file.

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
