Honeywell HC30W45R3 Configuration Guide

Logging In and Viewing Live Video
15
1R (One Regional) Display Mode
The 1R mode provides access to one image section within the hemisphere. You can zoom in
or out (using the mouse wheel or PTZ panel) or travel to other areas in the hemisphere using
mouse clicks and drags. A single click on a particular object can bring the object to the center
of your view window. Click and hold down the left mouse button, and you can drag the view in
all directions.

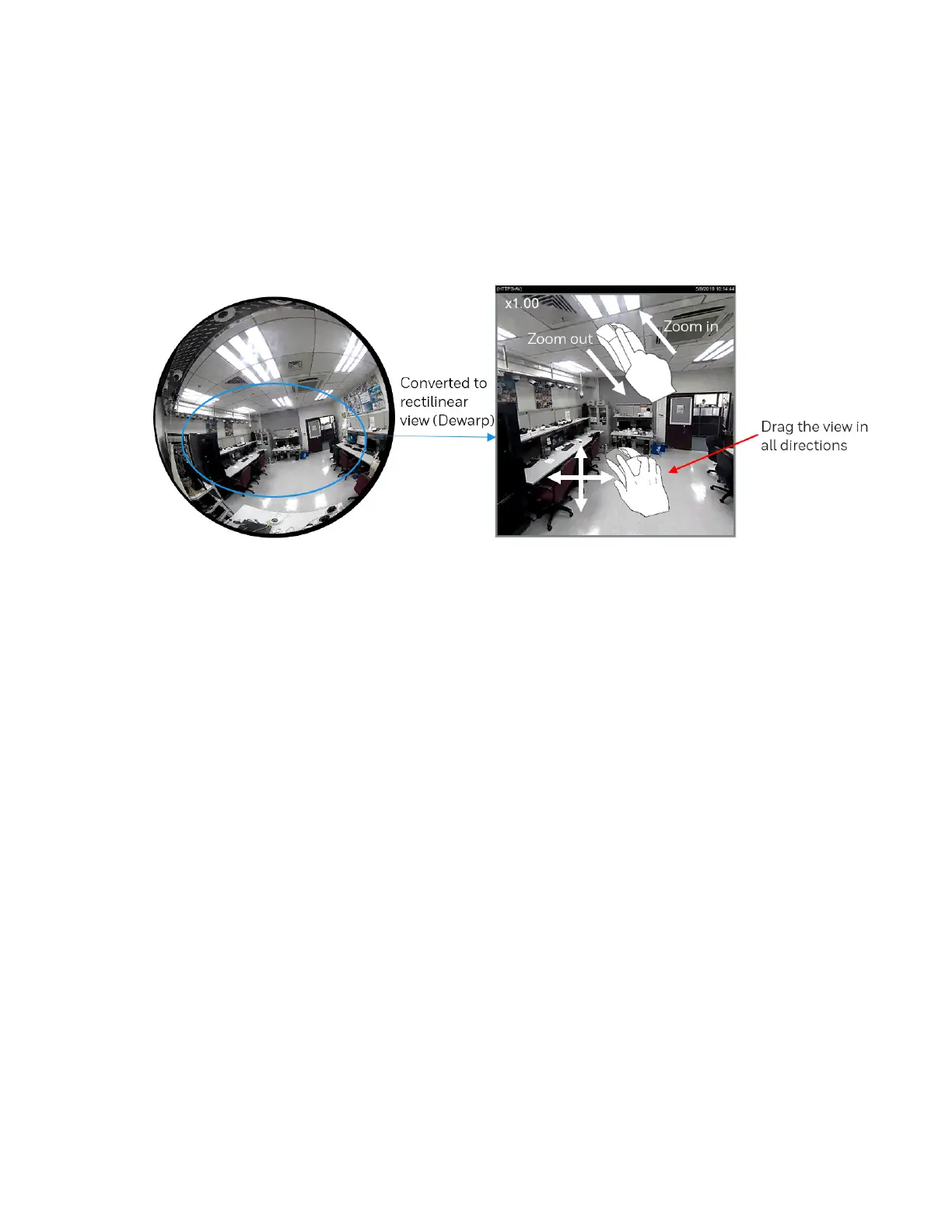

Figure 3-13 1R (One Regional) Display mode
1P2R (One Panoramic and Two Regional) Display Mode
The 1P2R mode provides access to two regional views and the reference to their relative
positions on a panoramic view. This display mode is available only when you select the Wall
mount type, see the Mount type section in General Settings on page 20.
The operations of the 1P2R display mode is similar to the operations of the 1O3R, see The
operations of the 1P3R display mode is similar to the operations of the 1O3R, see Error! Not a
valid bookmark self-reference. on page 16.
1O3R (One Original and Three Regional) Display Mode on page 16.
2P (Two Panoramic View) Display mode
Similar to 1P, the 2P display mode provides simultaneous access to both the left and right
sections of a hemisphere. Both panoramic views are corrected into a more viewable dewarped
image. You can use a mouse click and drag to quickly scroll horizontally through the
surveillance area.

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
