Honeywell HC30W45R3 Configuration Guide

Performance Series IP Camera Software Configuration Guide
28
Focus
Note
This function only applies to HC30W45R2/
HC30WB5R2/
HC30WE5R2 motorized focus/zoom cameras.
Go to Setup Camera Setup  PropertiesFocus.

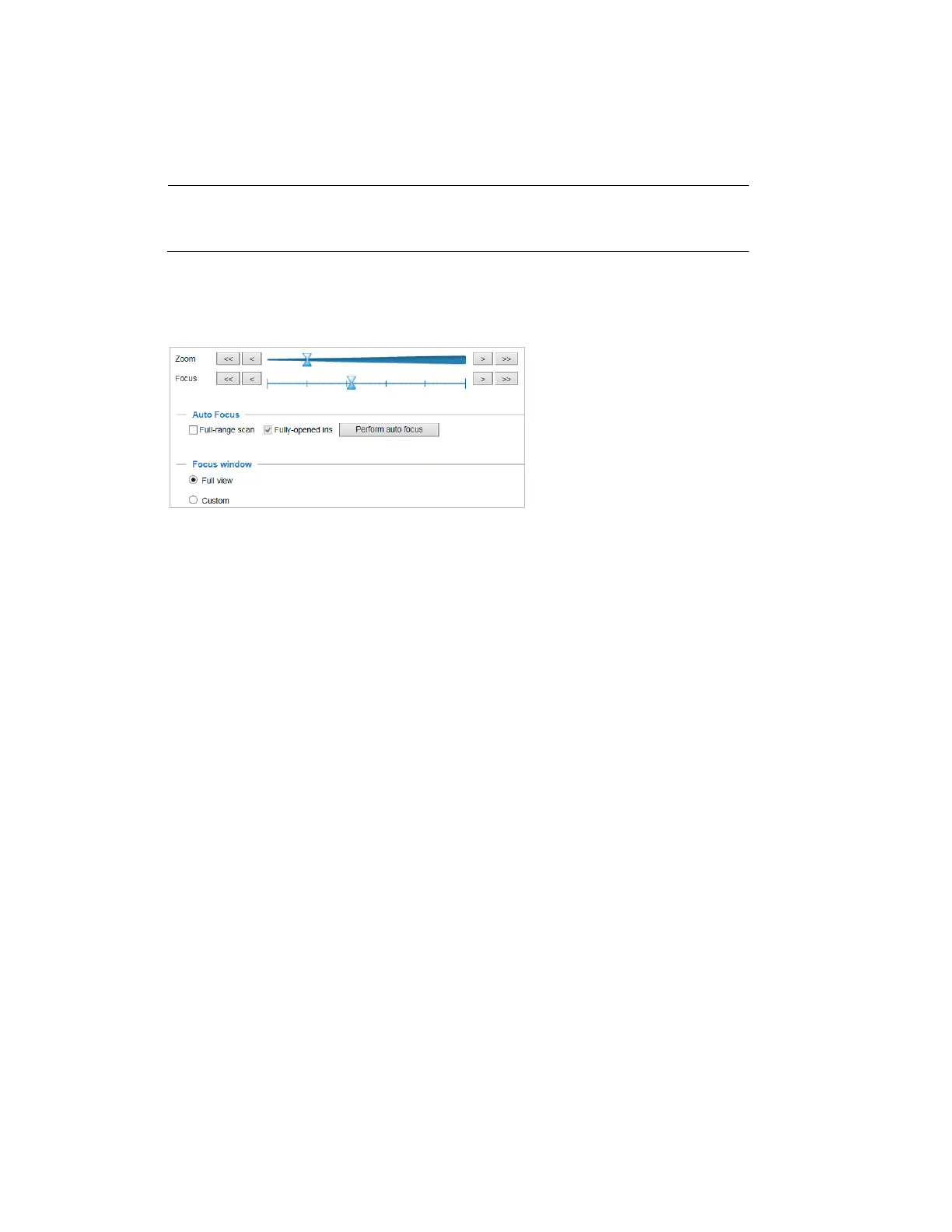

Figure 4-10 Focus
To perform the automated Focus function:
1. Select from the bottom of the screen whether you want to perform focus adjustment on
the Full view or within a Custom focus window. You can create a custom window and click
and drag the window to a desired position on screen.
2. It is recommended to Reset to the default back focus position of the sensor board.
3. You can check Fully-opened iris (default) to increase the iris size for a better focus
adjustment result.
4. Check Fully-opened iris or Full-range scan buttons.
Full-range scan: Check it and a full-range scan through the camera's entire focal length
can take about 30 to 80 seconds. If it is not checked, the auto focus scan will only go
through the length where optimal focus may occur, and that takes about 15 to 20
seconds. In theory, best results of the auto scan can be acquired when the camera's iris is
fully open.
5. Wait for the scan to complete. After a short while, the clearest image obtained should be
displayed and the optimal focus range achieved. Use the arrow marks on the sides to fine-
tune the focus if you are not satisfied with the results. You may still need to use the arrow
marks to fine-tune the focus depending on the live image on your screen. “>” means
moving from wide to tele end; and “<” tele to wide.
Focus window:
By default, the optimal focus is found on a full view window. You may designate a custom
window within your current field of view to acquire the best focus out of it. However, you
cannot place a focus window on a distant background, e.g., a hall way that stretches away for
3 meters or farther. Doing so you will not benefit from the Focus window function.
• Full view: The focus tuning takes place by referring to the full view.
• Custom: You can create a focus window and drag it to a place of interest in your view
window.

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
