Performance Series IP Camera Software Configuration Guide
26

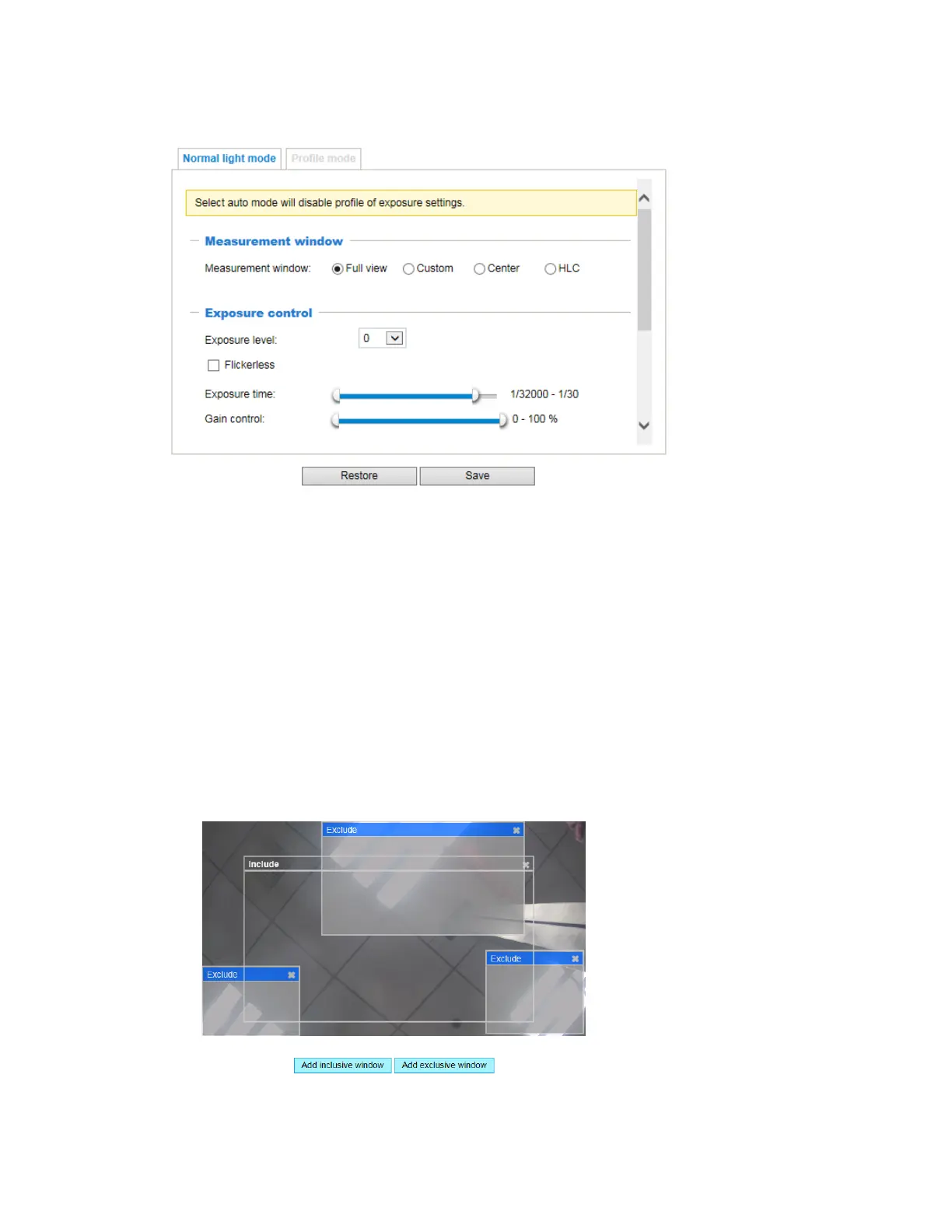

Figure 4-6 Exposure
Measurement Window
Measurement Window: This function allows users to set measurement window(s) for low light
compensation. For example, where low-light objects are posed against an extremely bright
background. You may want to exclude the bright sunlight shining through a building's
corridor.
• Full view: Calculate the full range of view and offer appropriate light compensation.
• Custom: Manually add customized windows as inclusive or exclusive regions. A total of 10
windows can be configured.
The inclusive windows have a higher priority. You can overlap these windows, and, if you
place an exclusive window within a larger inclusive window, the exclusive part of the
overlapped windows will be deducted from the inclusive window. An exposure value will
then be calculated out of the remaining of the inclusive window.
Figure 4-7 Measurement Window
