Honeywell HC30W45R3 Configuration Guide

Configuring Camera Settings
31
This section describes how to configure video mode and video streaming properties (format,
resolution, frame rate, bit rate, I-frame interval, etc.).
Video Mode
Go to Setup Camera Setup  Video Mode.
Note
This function only applies to HC30W45R3/HC30WE5R3/HC30WB5R1/
HC30W45R2/HC30WB5R2/HC30WE5R2/HC30WF5R1 cameras.

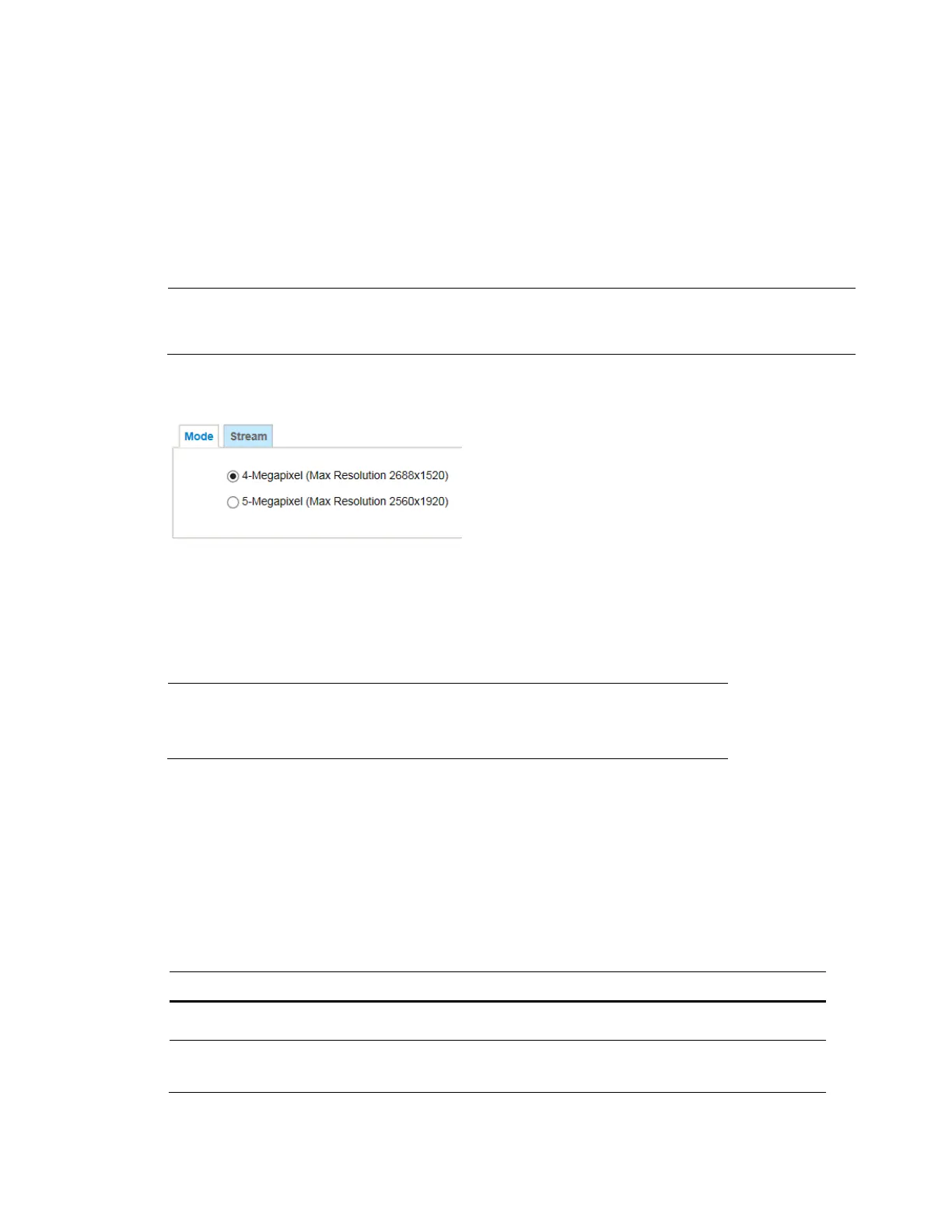

Figure 4-13 Video Mode
4-Megapixel (Max Resolution 2688x1520): Select it and the maximum resolution will be
2688x1520. The aspect ratio will be 16:9.
5-Megapixel (Max Resolution 2560x1920): Select it and the maximum resolution will be
2560x1920. The aspect ratio will be 4:3.
Note
Changing the video mode will clear the following settings: privacy
mask, exposure widow, motion, viewing window, preset position
and focus window.
Video Stream
Go to Setup Camera Setup  Video Stream.
The cameras support multiple streams with frame sizes ranging from 640 x 360 to
2560x1920 pixels.
See the following table for streams and frame sizes:
Table 4-1 Stream and Frame Size Matrix
Model Main Stream Sub Stream Third Stream
HC30W42R3
1920×1080/1600x904/
1360x768/1280x720/640x360
1280x720/
640x360
640x360
HC30W45R3
(4MP)
2688x1520/1920x1080/
1600x904/1280x720/640x360
1280x720/
640x360
640x360

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
