Configuring Camera Settings
23
In day mode, the camera switches on the IR cut filter at all times to block infrared light
from reaching the sensor so that the colors will not be distorted.
• Night mode
In night mode, the camera switches off the IR cut filter at all times for the sensor to accept
infrared light, thus helping to improve low light sensitivity.
• Schedule mode
The camera switches between day mode and night mode based on a specified schedule.
Enter the start and end time for day mode. The time format is [hh:mm] and is expressed in
24-hour clock time. By default, the start and end time of day mode are set to 07:00 and
18:00.
Sensitivity: Adjust the responsiveness of the IR filter to lighting conditions as Low, Normal, or
High.
IR Control Settings
Go to Setup Camera Setup PropertiesIR Control.
On this page, you can turn on the IR illuminator and adjust the luminance of IR lights.

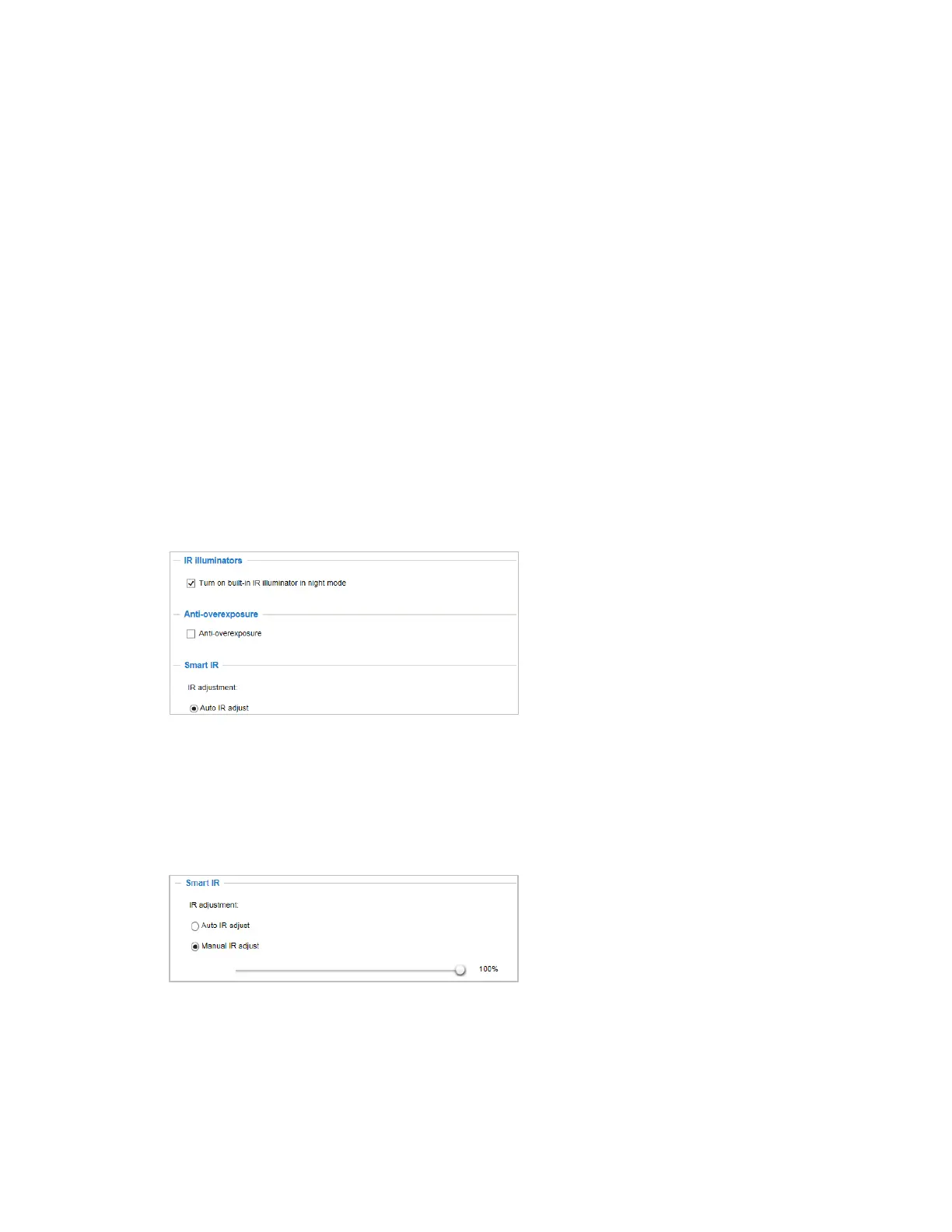

Figure 4-3 IR Control Settings
Turn on built-in IR illuminator in night mode: Check to turn on the camera’s onboard IR
illuminator when the camera detects low light condition and enters the night mode.
Anti-overexposure: When checked, the camera automatically adjusts the IR projection to
adjacent objects in order to avoid over-exposure in the night mode.
IR Adjustment: Adjust the luminance of IR lights.
Figure 4-4 IR Adjustment
• Auto IR adjust: Select it and the camera will automatically control the luminance of IR
lights.
• Manual IR adjust: Select it to control the luminance of IR lights manually. To increase the
luminance of IR lights, drag the slider to the right; to decrease the luminance of IR lights,
drag the slider to the left.
