Honeywell HC30W45R3 Configuration Guide

Configuring System Settings
83

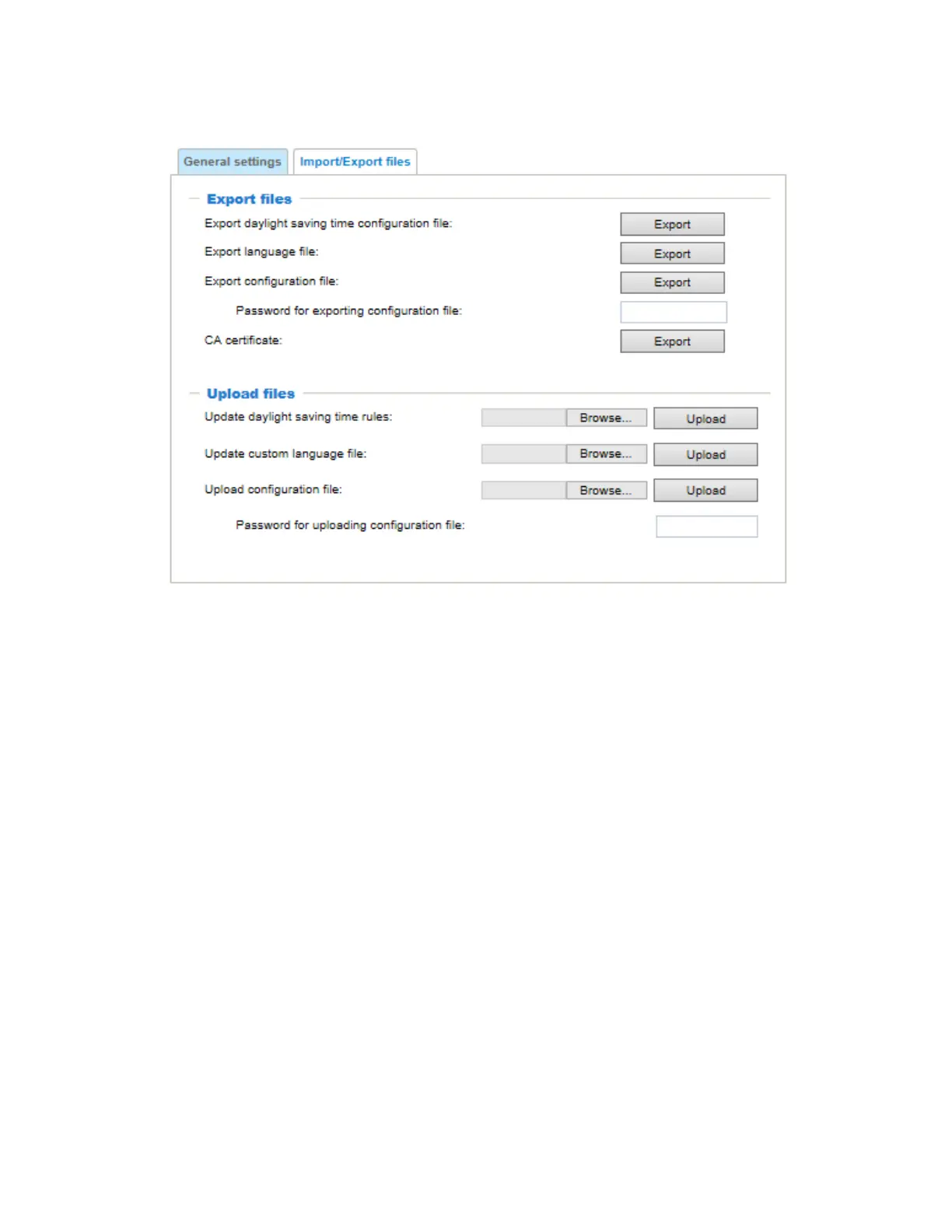

Figure 8-3 Import/Export Files
Export daylight saving time configuration file
Follow the steps below to export daylight saving time configuration file from the camera and
set the start and end time of DST.
1. Click Export next to Export the daylight saving time configuration file.
2. A file download dialog will be displayed. Click Open to review the XML file or click Save to
store the file for editing.
3. Open the file with Microsoft® Wordpad and locate your time zone; set the start and end
time of DST.
After it is completed, save the file.
In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and
ends at 2:00 a.m. on the first Sunday in November.

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
