Honeywell HC30W45R3 Configuration Guide

Configuring System Settings
81
Keep current date and time: Select this option to preserve the current date and time of the
camera. The camera’s internal real-time clock maintains the date and time even when the
power of the system is turned off.
Synchronize with computer time: Select this option to synchronize the date and time of the
camera with the local computer. The read-only date and time of the PC is displayed as
updated.
Manual: The administrator can enter the date and time manually. The date and time format
are [yyyy/mm/dd] and [hh:mm:ss].
Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by
periodically querying an NTP Server.
• NTP server: Assign the IP address or domain name of the time-server. Leaving the text box
blank connects the camera to the default time servers. The precondition is that the
camera must have the access to the Internet.
• Update interval: Select to update the time using the NTP server on an hourly, daily, weekly,
or monthly basis.
Configuring Maintenance Settings
Go to Setup System Setup Maintenance.
This chapter describes how to restore the camera to factory default, upgrade firmware version,
etc.

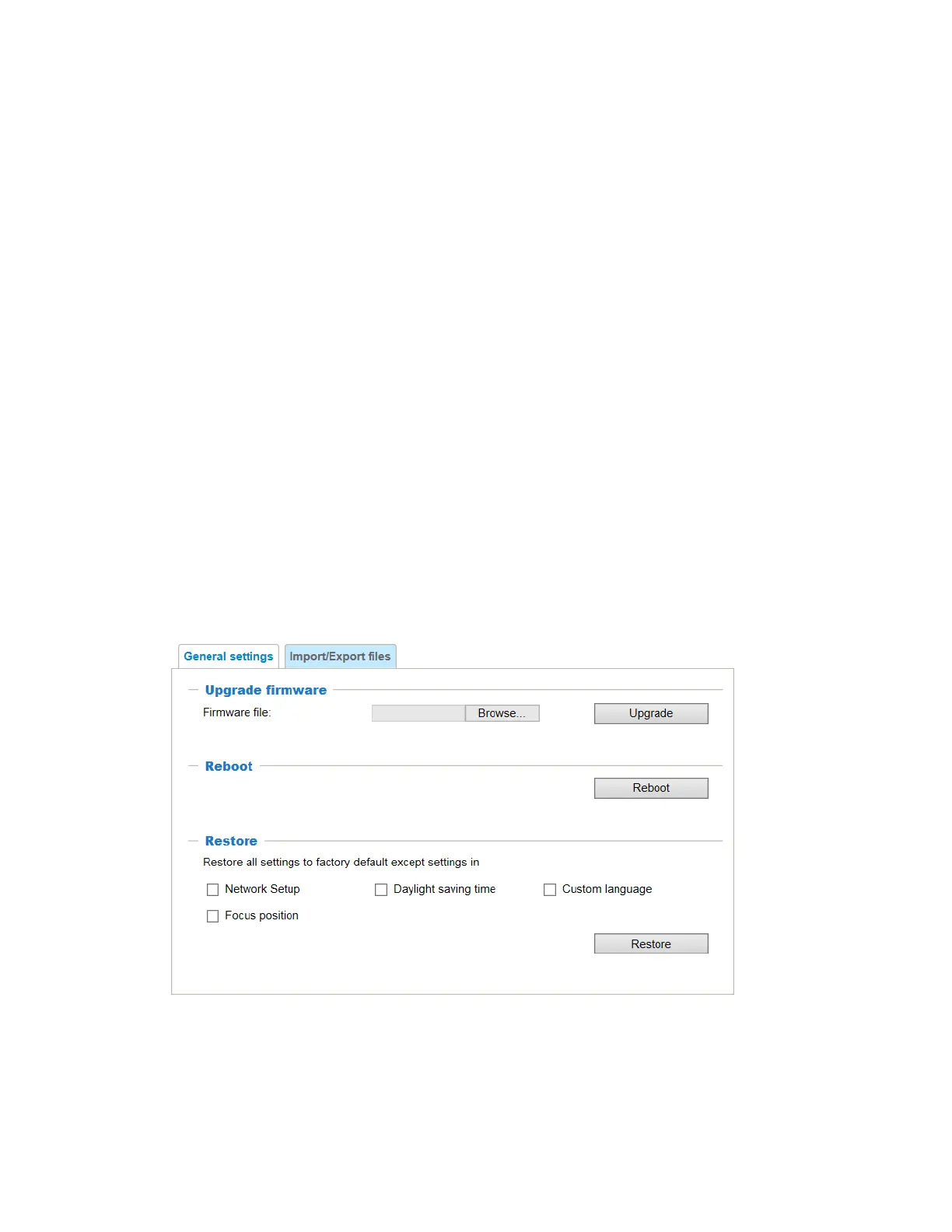

Figure 8-2 Maintenance
Upgrading Firmware
On this page, you can upgrade the firmware of the camera. It takes a few minutes to complete
the process.

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
