Configuring Camera Settings
21

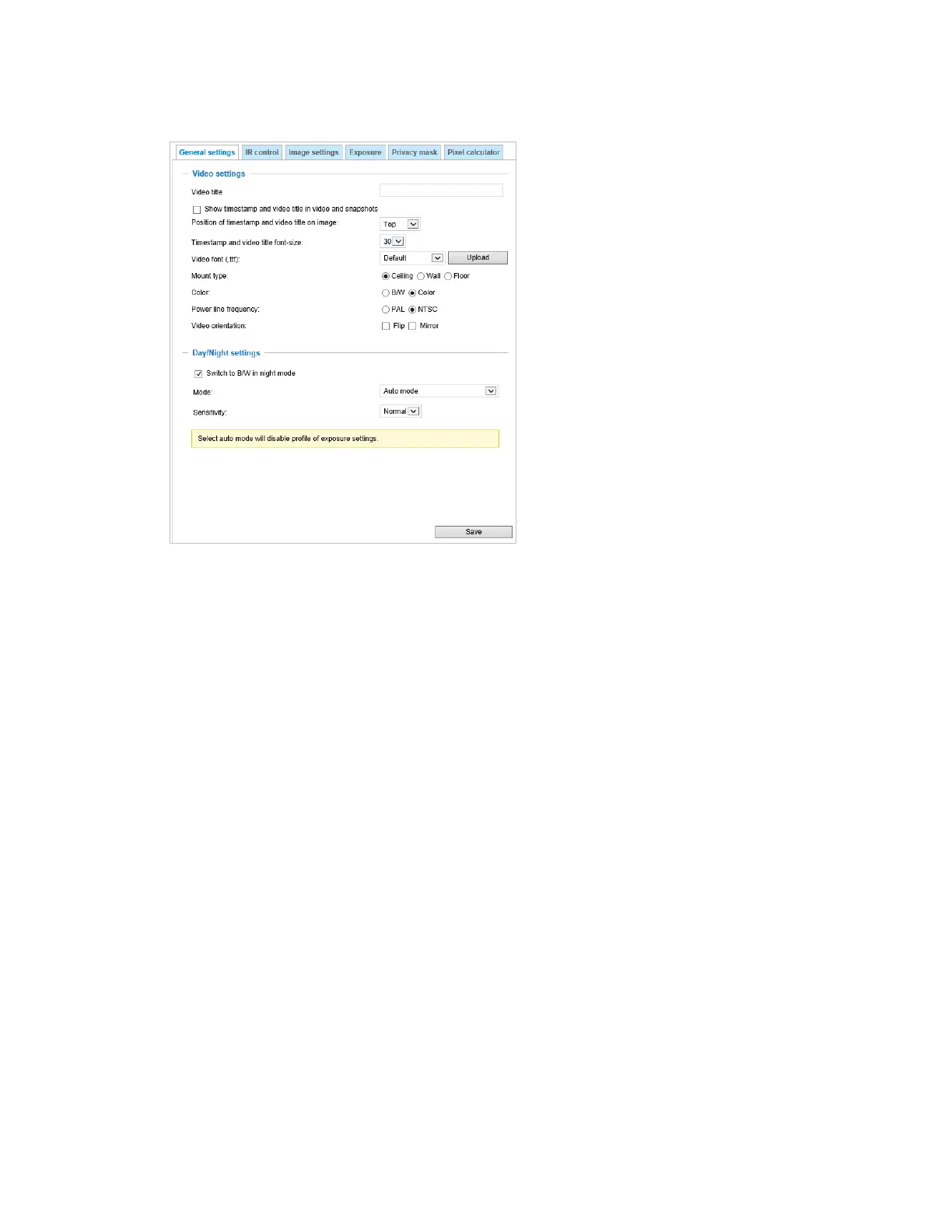

Figure 4-1 General Settings
Video Settings
Video Title: Enter a name that will be displayed on the title bar of the live video.
Show timestamp and video title in video and snapshots: Check to display timestamp and
video title in live video and snapshots.
Position of timestamp and video title on image: Select a position from the dropdown list to
display timestamp and video title on the top or at the bottom of the video stream.
Timestamp and video title font-size: Select a font size for the timestamp and title.
Video font (.ttf): You can select a True Type font file for the display of textual messages on
video.
Mount type: The camera provides 3 Mount types - Ceiling, Wall, and Floor.
• Ceiling: The Ceiling mount type automatically delivers upside-down images. The Ceiling
mode supports the following Display modes - 1O, 1P, 1R, 2P, 1O3R, 4R, 4R PRO, and
1O8R.
• Wall: The Wall mount type applies to the monitoring of long, side-to-side surveillance
areas, such as when mounted on a wall facing a corridor. Different Mount types have
different options with the Display mode settings. For example, the 1P2R (1 Panoramic & 2
Regional) and 1P3R (1 Panoramic & 3 Regional) display modes are only available when
the “Wall” Mount type is applied.
• Floor: The Display modes with the Floor mount type are identical to those for the Ceiling
mount except that the images are not vertically flipped.
Color: Select to display color or black/white video streams.
Power line frequency: Set the power line frequency consistent with local utility settings to
eliminate image flickering associated with fluorescent lights.
