Honeywell HC30W45R3 Configuration Guide

Performance Series IP Camera Software Configuration Guide
84
Export Language File
The camera supports the following languages: English, Deutsch, Español, Français, Italiano,
日本語, Português,Pусский and 繁體中文. If your language is not listed, perform the following
steps to customize the camera language.
Taking the English language file for example:
1. Click Export to export the export translator.xml file.
2. Save and open the export translator.xml file.
3. Replace all English string value in bold black into your own language and save the file. The
following figure is a sample segment.

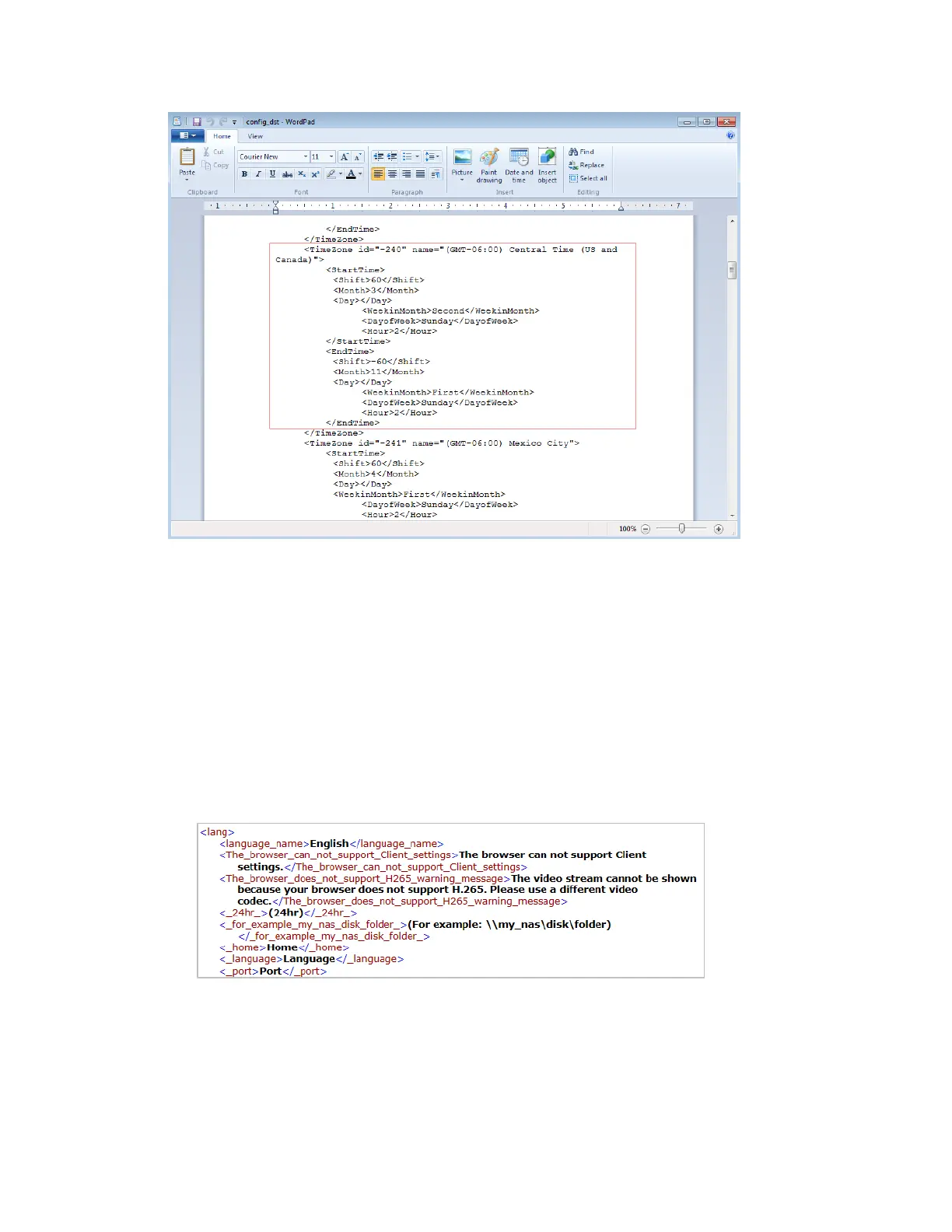

Figure 8-4 Edit Language String
4. Upload the updated export translator.xml file to your system. See Update custom
language file on page 85.
Export configuration file
Enter a password for exporting the configuration file and then click Export to export all
parameters for the camera and user-defined scripts.

Honeywell HC30W45R3 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Yes
Maximum operating distance	30 m
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
International Protection (IP) code	IP66
White balance	Auto, Manual
Minimum illumination	0.03 lx
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Windows operating systems supported	Windows 10, Windows 7

Weight and Dimensions

Depth	89.51 mm
Width	117.11 mm
Weight	540 g
Package weight	880 g
