106 HF680 Series User Guide

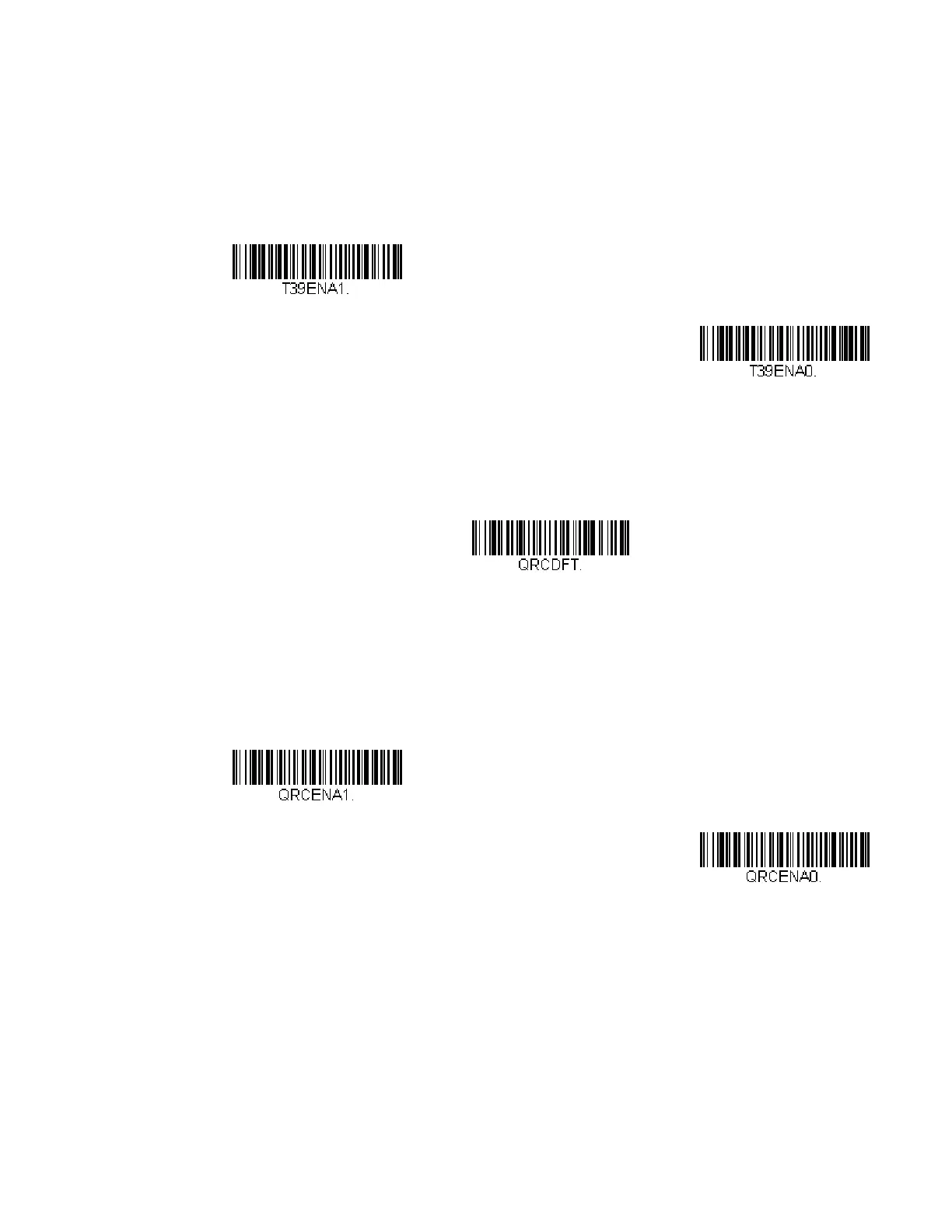

TCIF Linked Code 39 (TLC39)
This code is a composite code since it has a Code 39 linear component and a
MicroPDF417 stacked code component. All barcode readers are capable of reading
the Code 39 linear component. The MicroPDF417 component can only be decoded
if TLC39 On is selected. The linear component may be decoded as Code 39 even if
TLC39 is off. Default = Off.
QR Code
< Default All QR Code Settings >
QR Code On/Off
This selection applies to both QR Code and Micro QR Code.
On
* Off
* On
Off

Honeywell HF680 Series Specifications

General

Image Sensor	CMOS
Symbol Contrast	20% minimum reflectance difference
Interface	USB, RS-232, Keyboard Wedge
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
Light Levels	0 to 100, 000 lux
Supported Barcodes	UPC/EAN, Code 39, Code 128, QR Code, Data Matrix
