Honeywell HF680 Series User Manual

114 HF680 Series User Guide

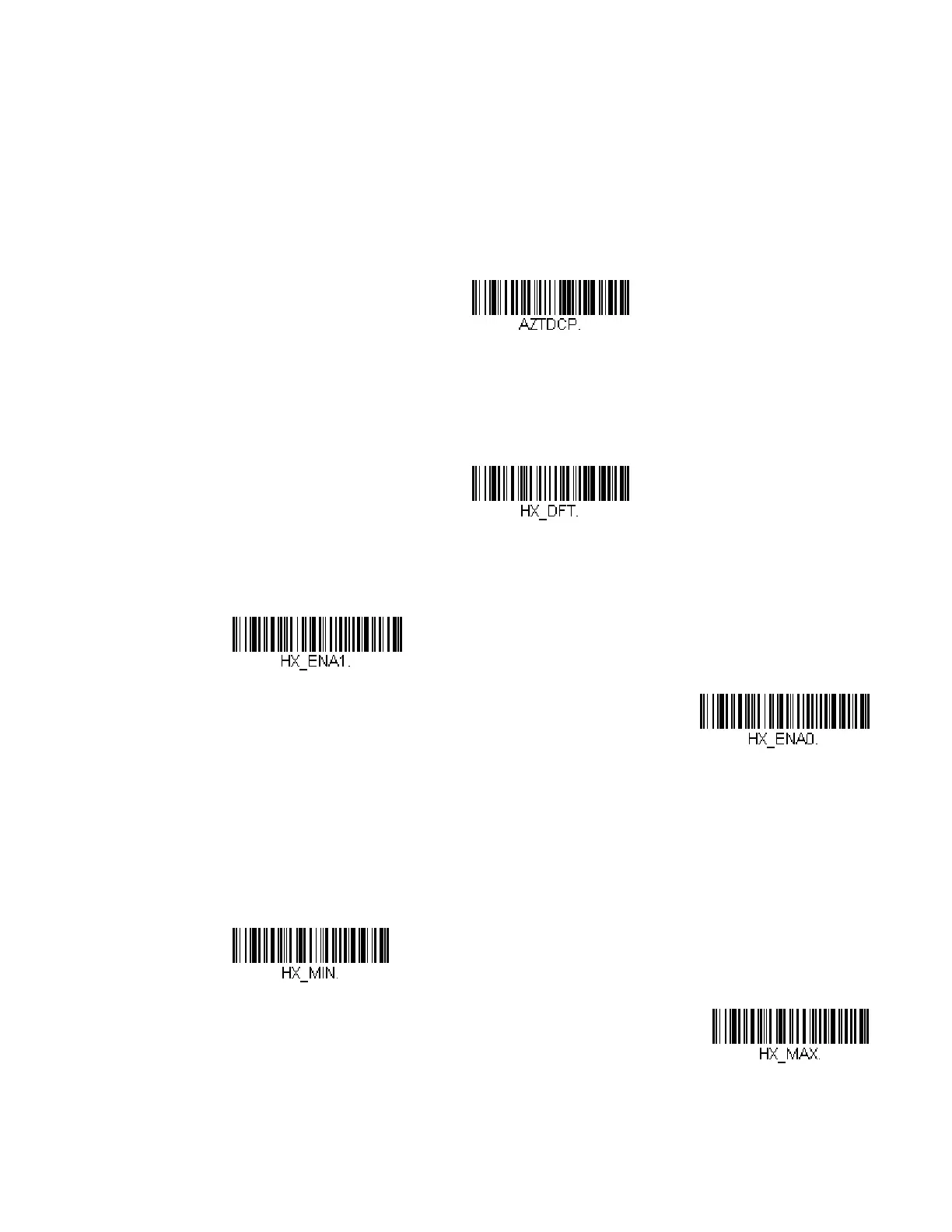

Aztec Code Page
Aztec Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the
barcode being scanned was created using a code page that is different from the
one the host program is expecting. If this is the case, scan the barcode below,
select the code page with which the barcodes were created (see ISO 2022/ISO 646
Character Replacements on page 168), and scan the value and the Save barcode
from the Programming Chart. The data characters should then appear properly.
Chinese Sensible (Han Xin) Code
< Default All Han Xin Settings >
Han Xin Code On/Off
Han Xin Code Message Length
Scan the barcodes below to change the message length. Refer to Message Length
Description (page 68) for additional information. Minimum and Maximum lengths
= 1-7833. Minimum Default = 1, Maximum Default = 7833.
Aztec Code Page
On
* Off
Minimum Message Length
Maximum Message Length

Honeywell HF680 Series Specifications

General

Image Sensor	CMOS
Symbol Contrast	20% minimum reflectance difference
Interface	USB, RS-232, Keyboard Wedge
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
Light Levels	0 to 100, 000 lux
Supported Barcodes	UPC/EAN, Code 39, Code 128, QR Code, Data Matrix
