Honeywell HF680 Series User Manual

Name: Honeywell HF680 Series
Brand: Honeywell
Rating: 4 (1 reviews)

190 pages

To Next Page

To Previous Page

HF680 Series User Guide 155

Serial Output

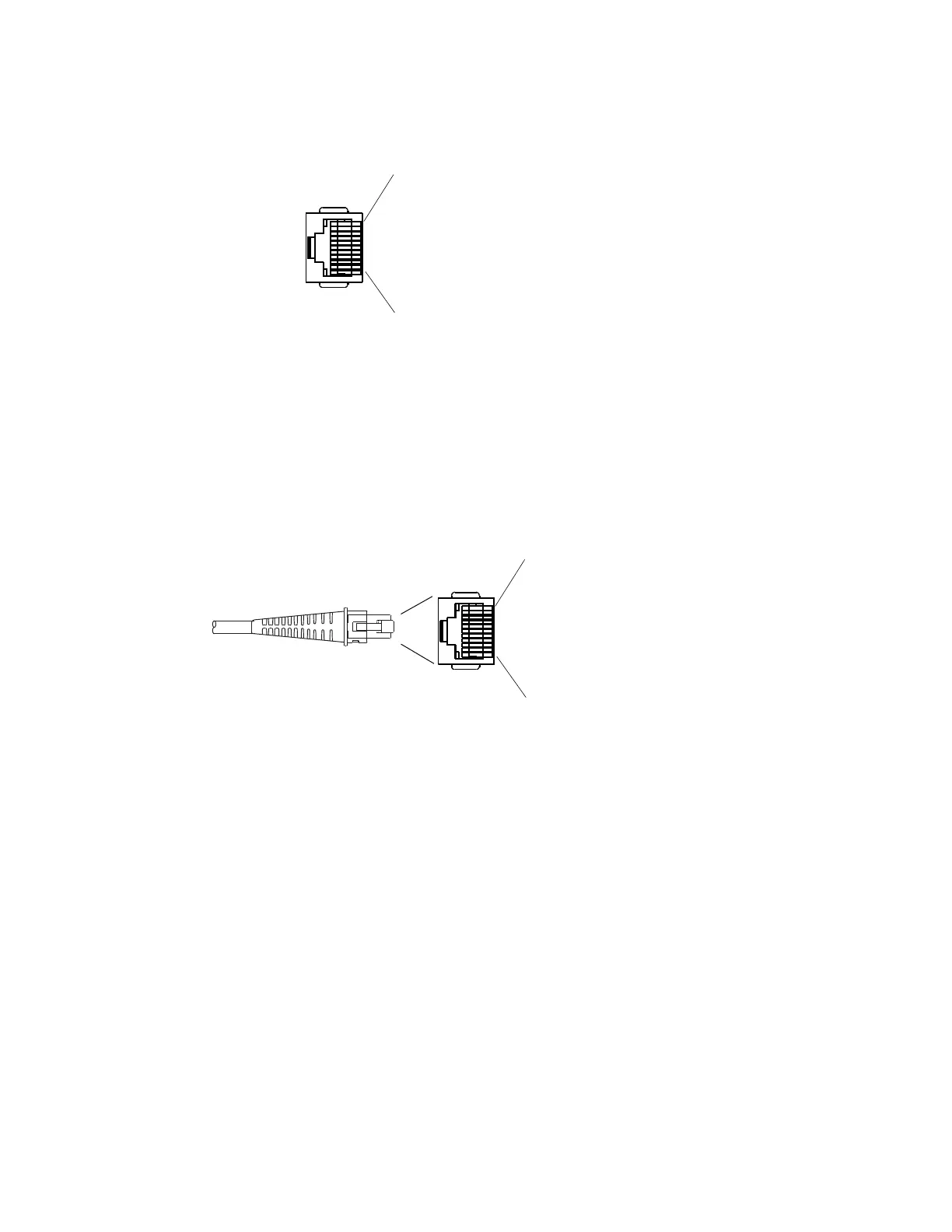

10 Pin RJ41 Modular Plug

USB

10 Pin Modular Plug

1Cable shield

2Cable select

3Supply ground

4Transmit data

5Receive data - serial data to scanner

6CTS

7+5V power

8RTS

1Cable shield

2Cable select

3Supply ground

7+5V power

9Data +

10Data -

Questions and Answers:

Need help?

Do you have a question about the Honeywell HF680 Series and is the answer not in the manual?

General

Image Sensor	CMOS
Symbol Contrast	20% minimum reflectance difference
Interface	USB, RS-232, Keyboard Wedge
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
Light Levels	0 to 100, 000 lux
Supported Barcodes	UPC/EAN, Code 39, Code 128, QR Code, Data Matrix
