Honeywell HF680 Series User Manual

86 HF680 Series User Guide

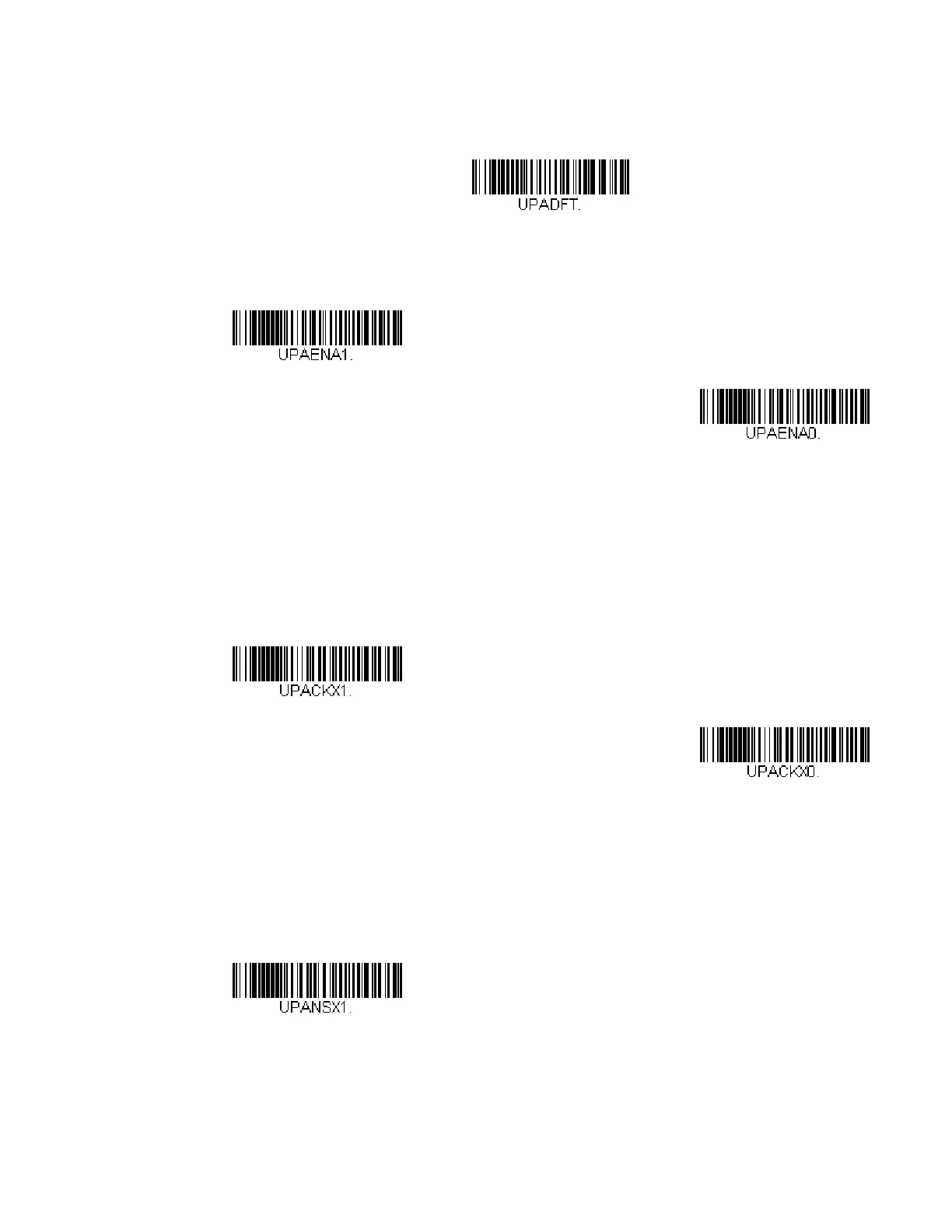

UPC-A
<Default All UPC-A Settings>
UPC-A On/Off
Note: To convert UPC-A barcodes to EAN-13, see Convert UPC-A to EAN-13 on page 92.
UPC-A Check Digit
This selection allows you to specify whether the check digit should be transmitted
at the end of the scanned data or not. Default = On.
UPC-A Number System
The numeric system digit of a U.P.C. symbol is normally transmitted at the
beginning of the scanned data, but the unit can be programmed so it will not
transmit it. Default = On.
* On
Off
* On
Off
* On

Honeywell HF680 Series Specifications

General

Image Sensor	CMOS
Symbol Contrast	20% minimum reflectance difference
Interface	USB, RS-232, Keyboard Wedge
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
Light Levels	0 to 100, 000 lux
Supported Barcodes	UPC/EAN, Code 39, Code 128, QR Code, Data Matrix
