HF680 Series User Guide 21

Turbo Mode: The scanner sends characters to a terminal faster. If the terminal drops

characters, do not use Turbo Mode. Default = Off.

Numeric Keypad Mode: Sends numeric characters as if entered from a numeric

keypad. Default = Off.

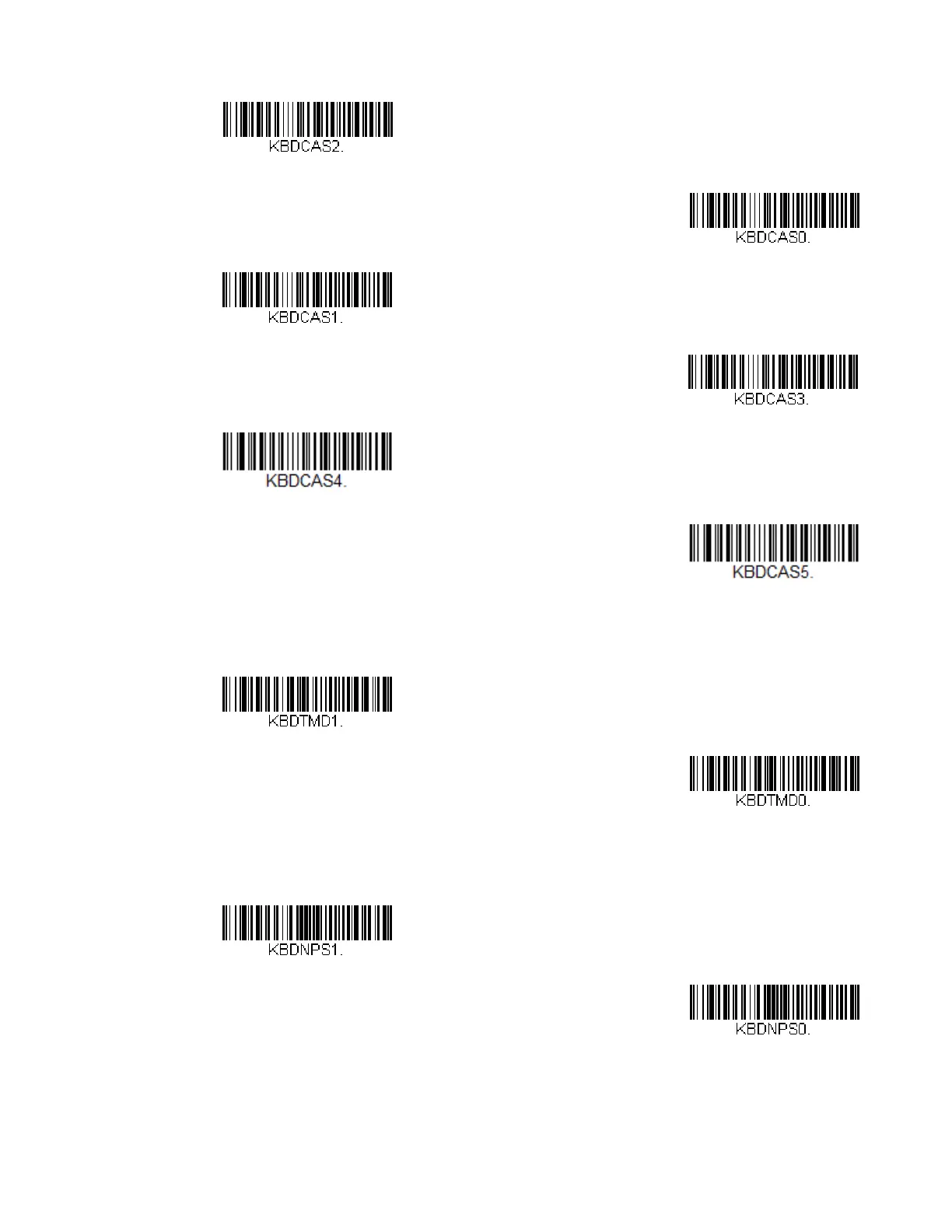

Windows Mode Control + X

Mode On

* Control + X Mode Off

DOS Mode Control + X Mode On

Windows Mode Prefix/Suffix

DOS Mode Control + X Mode On

with Windows Mode Prefix/Suffix

Supports ALT 3 Digit HEX Mode

Turbo Mode On

* Turbo Mode Off

Numeric Keypad Mode On

* Numeric Keypad Mode Off

Questions and Answers:

Need help?

Do you have a question about the Honeywell HF680 Series and is the answer not in the manual?

General

Image Sensor	CMOS
Symbol Contrast	20% minimum reflectance difference
Interface	USB, RS-232, Keyboard Wedge
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
Light Levels	0 to 100, 000 lux
Supported Barcodes	UPC/EAN, Code 39, Code 128, QR Code, Data Matrix
