4. Managing HART Devices using FDC Application Software
4.6. Online configuration
Revision 3 MC Toolkit (MCT404) User Manual 53
Grids
A grid is a structure to display related device information in tabular form. The data may be organized
with either the column headers or with the row headers.
To view a grid, perform the following steps.
1. On the Device Home page, tap Functions tab.
2. Tap Online > Select.
3. The Device Configuration page appears which displays the top and bottom panes.
4. Navigate to the desired menu. The bottom pane will display items under that menu. Select any grid from
the list of available grids which appear on the bottom pane.
5. Tap View.

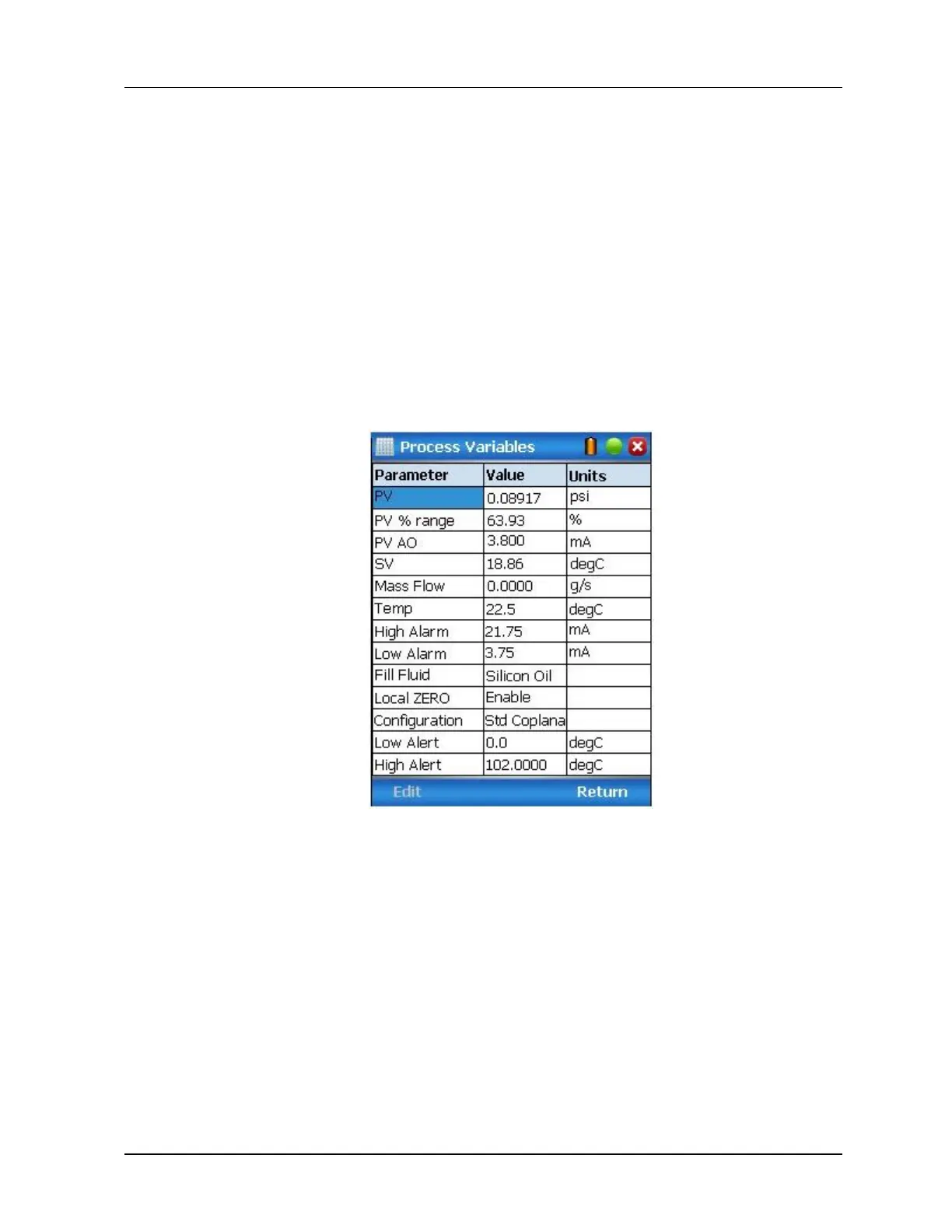

The grid page appears.
6. Select a value and tap Edit.
The Edit dialog box appears.
Note: The Edit option is enabled only if the value is editable.
7. Edit the value and tap OK to return to grid page.
Note: The edited variable is highlighted in yellow color.
8. Tap Return to close the grid page and return to the menu navigation view
