4.6. Online configuration
54 MC Toolkit (MCT404) User Manual Revision 3
Images
An image is a picture of an object related to the device as defined by the DD file. An image may display
anything from company information/logo to device image and drawings, and so on.
To view an image, perform the following steps.
1. On the Device Home page, tap Functions tab.
2. Tap Online > Select.
3. The Device Configuration page appears which displays the top and bottom panes.
4. Navigate to the desired menu. The bottom pane will display items under that menu. Select any image
from the list of available images which appear on the bottom pane.
5. Tap View.

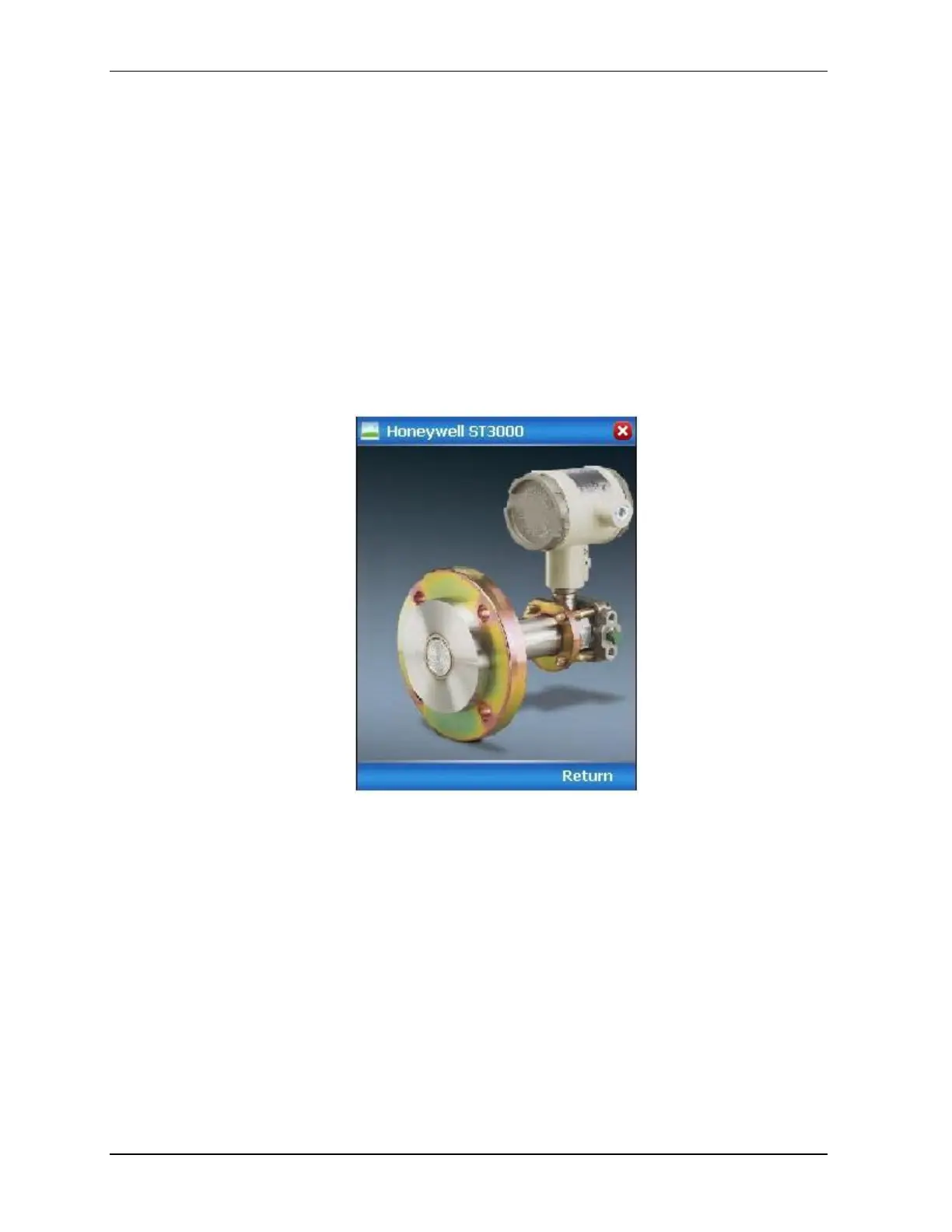

The image page appears.
7. Tap Return to close the image page and return to the menu navigation view.
