Section 2: Overview
2.1 General Description
The NCA-2 Network Control Annunciator provides a text-based display and control device for a NOTI•FIRE•NET™ or High-Speed
NOTI•FIRE•NET™ system. The NCA-2 uses a 640-character LCD (16 x 40), a high-speed 32-bit microprocessor, flash memory and a
rubberized QWERTY keypad. It can display all events from a NOTI•FIRE•NET™ or High-Speed NOTI•FIRE•NET™ system and can
co-exist with other NCA-2s, DVC Series, DVC-RPU, DVC configured as a DVC-RPU, ONYXWorks, and NFS2-3030, NFS2-640, and
NFS-320 fire alarm control panels (FACPs).
Figure 2.4 gives simplified overview illustrations of typical applications for the NCA-2.
2.1.1 NCA-2 Features
• Notifier Universal Protocol (NUP) compatible
• Optically isolated EIA-232 printer interface
• EIA-485 ACS annunciator interface
• Piezo electric sounder
• 640-character, 16 row X 40 column Liquid Crystal Display (LCD)
• Ten “soft keys” that point to current choices on the LCD.
• 11 Status LEDs indicate:
NOTE: The NCA-2 is compatible with NOTI•FIRE•NET™ version 5.0 and higher, and with the High-Speed NOTI•FIRE•NET™.
Networked
System
NFS2-
640
NCA-2
NFS2-3030
Noti•Fire•Net
NCM
NCM
NCM
NCM
Remote Display
for displayless
NFS2-640 or
NFS2-3030
Displayless
NFS2-640
NCM
NCM
NC
NCM
NFS-320
NCA-2
NFS2-3030
Noti•Fire•Net
NCM
NFS-320
Display for
Standalone
NFS2-640,
Direct NUP
Connection
NCA-2
NFS2-640
Display for
Standalone
NFS2-640(not
NFS-640) with
DVC and Digital
Audio Loop.
NUP
DVC
NUP
Optional Class X return
DAL
DVC-AO
DAL
Device
NFS2-640
AA Series Audio Amplifiers
XPIQ, etc.
Low level analog
audio
NCA-2
NUP
DVC
In this diagram, the term:
• “NCM” includes standard and high-speed network communications modules.
• “Noti•Fire•Net” includes standard and high-speed network versions.
DAL
Device
DAL
Device

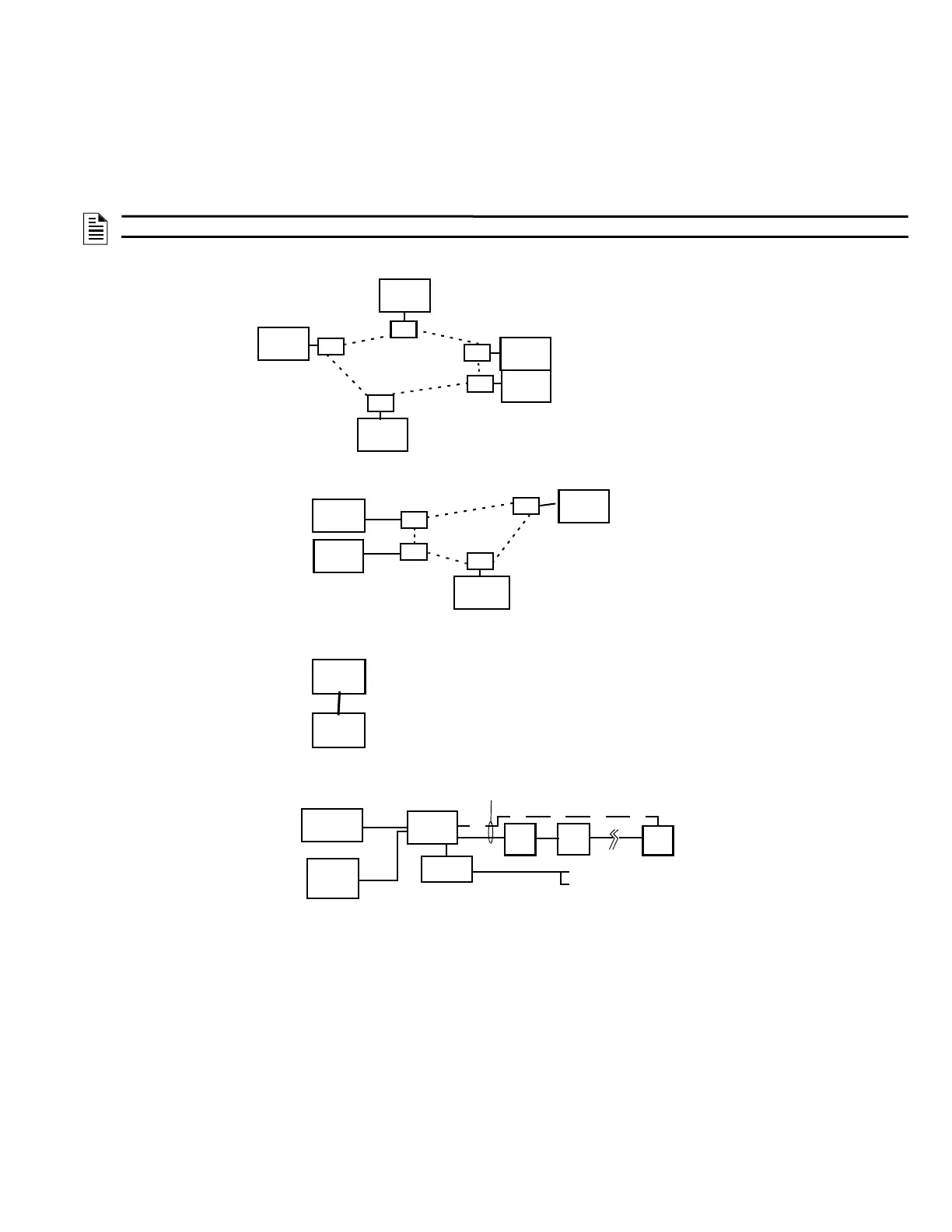

Figure 2.1 Block Diagram, Typical NCA-2 Applications
