20 NCA-2 Manual — P/N 52482:M5 03/20/2019
Installation CAB-4 Series Cabinet
3.3 CAB-4 Series Cabinet
This section provides instructions for mounting the CAB-4 Series backbox to a wall. Follow these guidelines when mounting the back-
box:
Locate the cabinet backbox on a surface that is in a clean, dry, vibration-free area. The top should be located so that all operational but-
tons, switches, displays, etc. are easily accessible and/or viewable to the operator - usually no more than 66 inches (1.7m.) above the
floor. Allow sufficient clearance around the cabinet for the door to swing freely, and for easy installation and maintenance of equipment.
• Use the four holes in the back surface of the backbox to provide secure mounting (See Figure 3.1).
• Mount the backbox on a surface that is in a clean, dry, vibration-free area.
Follow the instructions below.
1. Mark and pre-drill holes for the top two keyhole mounting bolts.
2. Select and punch open the appropriate knock-outs. (For selection guidelines, see Section 3.13 “UL Power-limited Wiring
Requirements”.)
3. Using the keyholes, mount the backbox over the two screws.
4. Mark the location for the two lower holes, remove the backbox and drill the mounting holes.
5. Mount the backbox over the top two screws, then install the remaining fasteners. Tighten all fasteners securely.
6. Feed wires through appropriate knockouts.
7. Install NCA-2 and other components according to this section, before installing hinges and door (see CAB-3/CAB-4 Series Cabinet
Installation Document).
!
CAUTION: KNOCKOUT LOCATION CONSIDERATIONS
UNLESS YOU ARE FAMILIAR WITH THE PLACEMENT OF COMPONENTS WITHIN THIS BACKBOX, ONLY USE THE
KNOCKOUT LOCATIONS PROVIDED FOR CONDUIT ENTRY.
Keyholes
2 places
Mounting holes
2 places
CAB-4 Series backbox,
A-size (one-row)
CAB4cabinetmountingholes.cdr
CAB-4 Series
backbox,
D-size (four-
row)
Chassis-
mounting
studs
(2 per row of
backbox)
Chassis-
mounting
studs
(2 per row of
backbox)

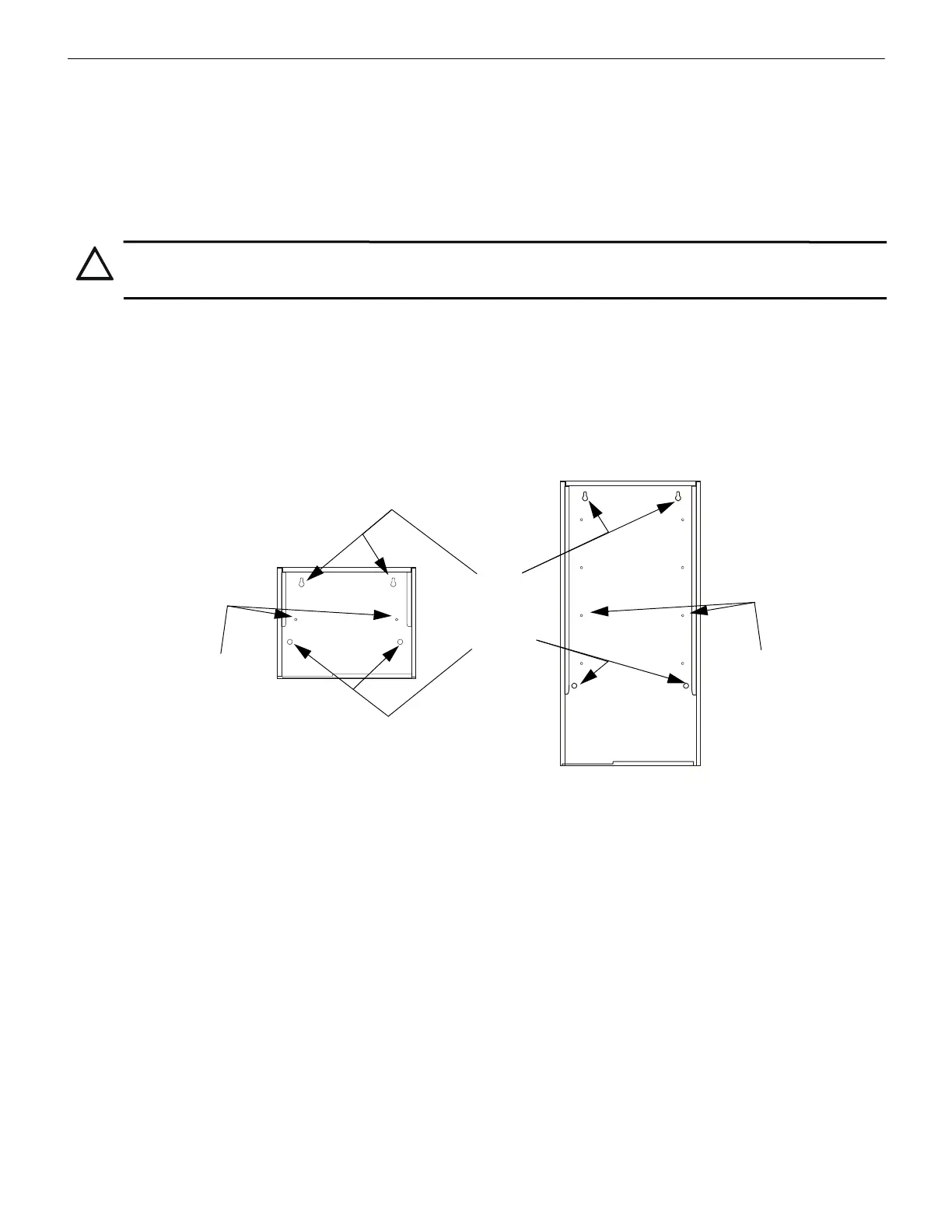

Figure 3.1 Backbox-Mounting Holes and Chassis-Mounting Studs
