32 NCA-2 Manual — P/N 52482:M5 03/20/2019
Installation Installing Printers
3. If installing a Keltron Printer VS4095/5, connect 24 VDC non-resettable power from a UL-listed power supply to the Keltron
printer as shown in Figure 3.15 (14 AWG).
4. If installing a PRN series printer, plug it into your AC power source.
Note: The PRN series of printers require a primary AC power source. Refer to the Manufacturer’s Installation Guide for additional
information.
If required for the fire alarm system configuration (for example, a Proprietary Fire Alarm System), a remote printer requires a
secondary power source (battery backup). Because a secondary power source is not provided, use a separate Uninterruptable Power
Supply (UPS) that is UL-listed for Fire Protective Signaling.
5. Plug the DB-25 or DB-9 connector end of the custom cable into the EIA-232 port of your printer. Tighten securely.
6. Configure the printer as described in Section 3.14.2 “Configuring the Printer”.
3.14.2 Configuring the Printer
Refer to the documentation supplied with your printer for instructions on configuring your printer.
23
5
Note: Outputs are power-limited.
DB-25 connector on
PRN Series Printer
TB5 on NCA-2
3030-keltron.wmf
DB-25 connector on
Keltron Printer VS4095/5*
TB5 on NCA-2
Keltron Printer VS4095/5
power connections*
TB3 of AMPS-24/E
3030-keltronpower.wmf
DC IN + DC IN -
3030-printer.wmf
*Note: VS4095/5 is not ULC-listed.

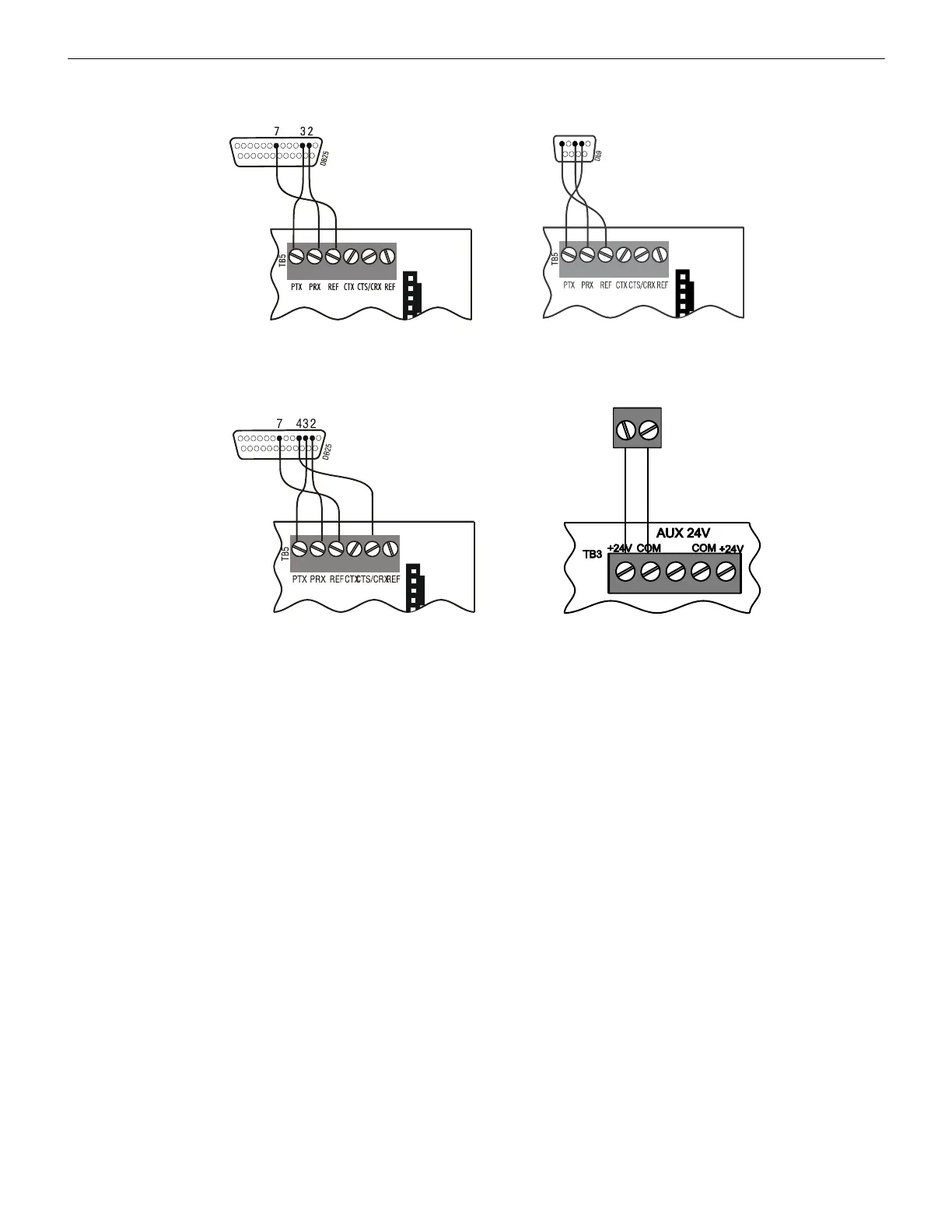

Figure 3.15 Printer Connections
DB-9 connector on
PRN Series Printer
DB9printer3030NCA2.wmf
TB5 on NCA-2
