NCA-2 Manual — P/N 52482:M5 03/20/2019 25
CA-2 Chassis Assembly Installation

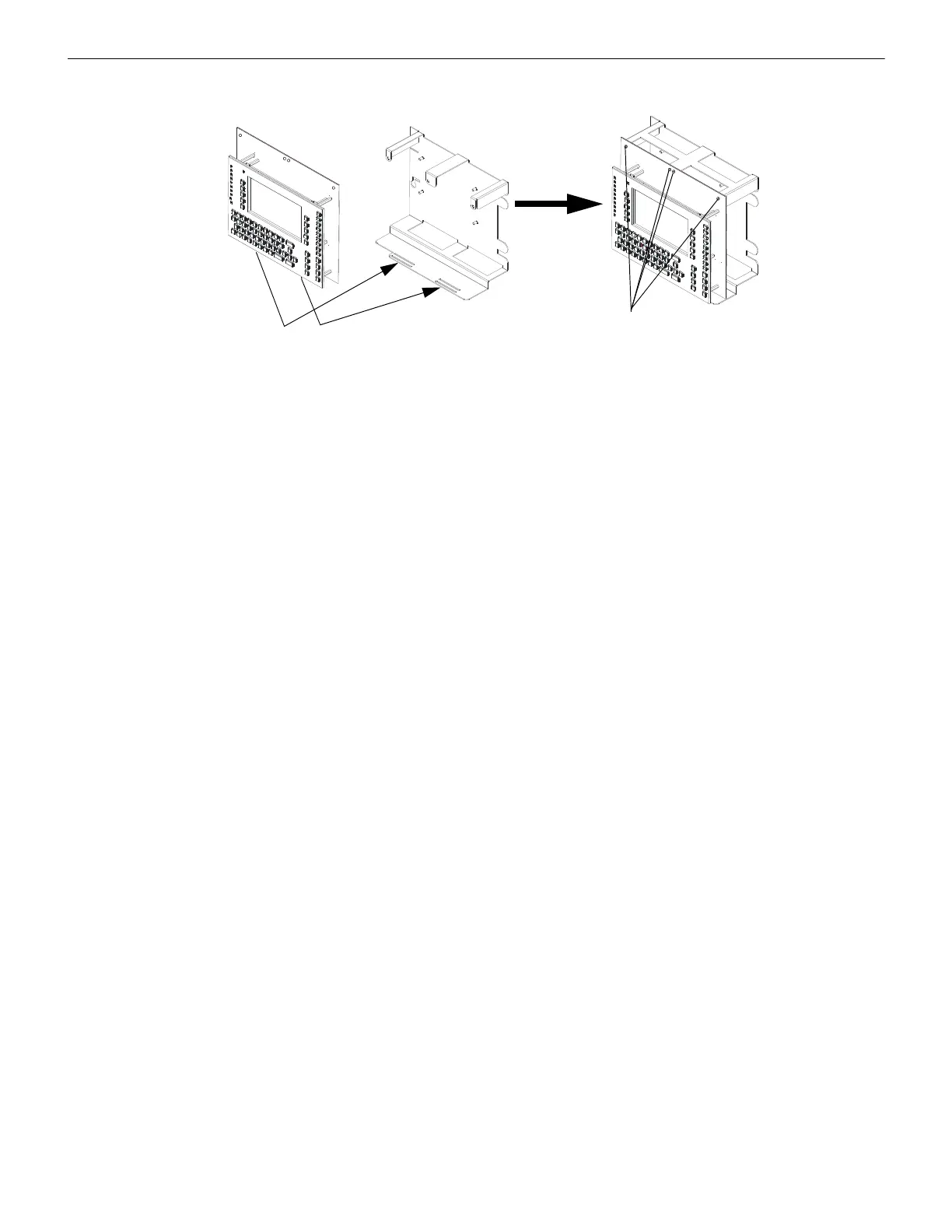

Figure 3.8 Mounting the NCA-2 onto the CA-2 Half-chassis
Refer to the DVC Manual and CA-2 product installation document for installation of the DVC-EM, microphone and handset into the
CA-2.
Fasten with four 4-40 screws (P/N 38134,
included with NCA-2) as indicated.
CA-2 half-chassis for
NCA-2
Slide the tabs at the bottom of
the NCA-2 into the outer slots
at the bottom of the chassis.
NCA23030keypadangld.wmf
NCA23030bdonhalfchas.wmf
CA23030halfchassis.wmf
NCA-2
