28 NCA-2 Manual — P/N 52482:M5 03/20/2019
Installation Central Station Fire Alarm System Canadian Requirements
3.11 Central Station Fire Alarm System Canadian Requirements
For Canadian applications requiring a second dial-out option, refer to the following illustration for UDACT/UDACT-2 and TM-4 setup:

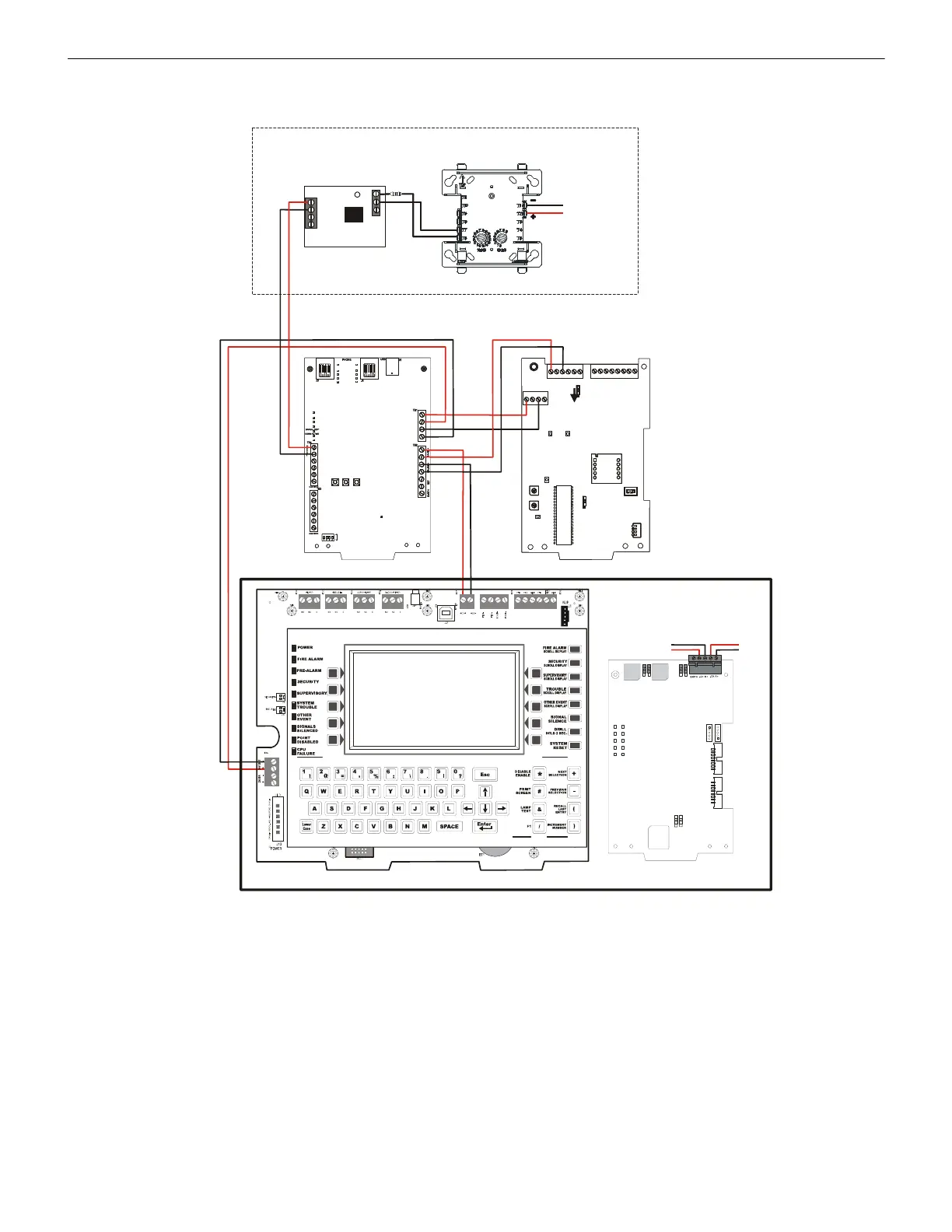

Figure 3.11 Central Station Canadian Requirements for Second Dial-Out Connection
0
NO
ON
NC
C
18/24
115
230
1
1
S5
W
LED3
LED4
LED1
LED2
S1W
ELR
TXACS
RXACS
POWER
TROUBLE
SW4
REMOTE
STATION
ALARM
ACS
TB2 TB1
ACS
REF
REMOTE
STATION
SUPERVISORY
MUNICIPAL
BOX
REMOTE
STATION
TROUBLE
T3B
S2W
S3W
SW6
NON-ISOLATED
DISABLE
ISOLATED
ENABLE
+24VDC
REF
+
-
1
1
S5
W
LED3
LED4
LED1
LED2
S1W
ELR
TXACS
RXACS
POWER
TROUBLE
SW4
REMOTE
STATION
ALARM
ACS
TB2 TB1
ACS
REF
REMOTE
STATION
SUPERVISORY
MUNICIPAL
BOX
REMOTE
STATION
TROUBLE
T3B
S2W
S3W
SW6
NON-ISOLATED
DISABLE
ISOLATED
ENABLE
+24VDC
REF
+
-
1
1
S5
W
LED3
LED4
LED1
LED2
S1W
ELR
TXACS
RXACS
POWER
TROUBLE
SW4
REMOTE
STATION
ALARM
ACS
TB2 TB1
ACS
REF
REMOTE
STATION
SUPERVISORY
MUNICIPAL
BOX
REMOTE
STATION
TROUBLE
T3B
S2W
S3W
SW6
NON-ISOLATED
DISABLE
ISOLATED
ENABLE
+24VDC
REF
+
-
LINE SEIZE
LED 3
LED 20
LED 8
LED 2
LED 1
LED 9
LED 14
LED 13
+ 24V
COMMON
INPUT 1
INPUT 2
INPUT 3INPUT 4INPUT 5
TRANS
CLEAR
SW1
SW2
SW3
SW4
RESET
TEST
REPORT
REAL TIME
EIA-485 COMM LOSS
POWER
LED 5
LED 6
LED 7
LED 17
LED 18
LED 19
LED 4
LED 15
LED 16
LINE FAIL
NO TONE
KISS OFF
COMM FAIL
PRI
SEC
OPTION
SELECT
SWITCH
1 2 3 4
OFF
ON
ON
LED21
TONE DE TECT
LINE SEIZE
LED 3
LED 20
LED 8
LED 2
LED 1
LED 9
LED 14
LED 13
+ 24V
COMMON
INPUT 1
INPUT 2
INPUT 3INPUT 4INPUT 5
TRANS
CLEAR
SW1
SW2
SW3
SW4
RESET
TEST
REPORT
REAL TIME
EIA-485 COMM LOSS
POWER
LED 5
LED 6
LED 7
LED 17
LED 18
LED 19
LED 4
LED 15
LED 16
LINE FAIL
NO TONE
KISS OFF
COMM FAIL
PRI
SEC
OPTION
SELECT
SWITCH
1 2 3 4
OFF
ON
ON
LED21
TONE DE TECT
LINE SEIZE
LED 3
LED 20
LED 8
LED 2
LED 1
LED 9
LED 14
LED 13
+ 24V
COMMON
INPUT 1
INPUT 2
INPUT 3INPUT 4INPUT 5
TRANS
CLEAR
SW1
SW2
SW3
SW4
RESET
TEST
REPORT
REAL TIME
EIA-485 COMM LOSS
POWER
LED 5
LED 6
LED 7
LED 17
LED 18
LED 19
LED 4
LED 15
LED 16
LINE FAIL
NO TONE
KISS OFF
COMM FAIL
PRI
SEC
OPTION
SELECT
SWITCH
1 2 3 4
OFF
ON
ON
LED21
TONE DE TECT
RECON
PULSE1
LED6 LED 7
LED101
LED100
LED4 LED 2
LED3 LED5
LED1 LED8
STATA STATB
RCDA RCDB
A HI
B HI
EF B TERM B
SW101
SW102
SW103
ON OFF
EF A TERM A
SW100
ON OFF
NUP1 NUP2
J3 J2
LCM
A
TERM
A
SW1
ON
SW2
OFF
LCM ALCM B
RESET
POWER
TM-4
UDACT-2
MR-101/C
FMM-1
NCA-2
NCM-W
From Previous
Node on Network
To Next Node
on Network
SLC
MR-101/C and FMM-1 Wiring on Networked FACP
Relay
Drive
_
_
+
+
24V
EIA-485
_
+
EIA-485
24V
EIA-485
+
+
_
{
{
{
{
24V
EIA-485
_
24V
_
+
NOTES:
• Drawing is not to scale.
• The UDACT/UDACT-2 should be set for “Receive Only” for this configuration. For additional
UDACT/UDACT-2 setup information, refer to the UDACT Installation Manual. or UDACT-2
Instruction Manual.
• This illustration is show with the NCM-W. For other NCM or HS-NCM setup, refer to the NCM
Installation or HS-NCM Installation documents.
• For additional setup information on the TM-4, refer to the TM-4 Instruction Manual.
