Wiring a Detector Base Intelligent Detectors, Intelligent Detector Bases, and Wireless Gateway

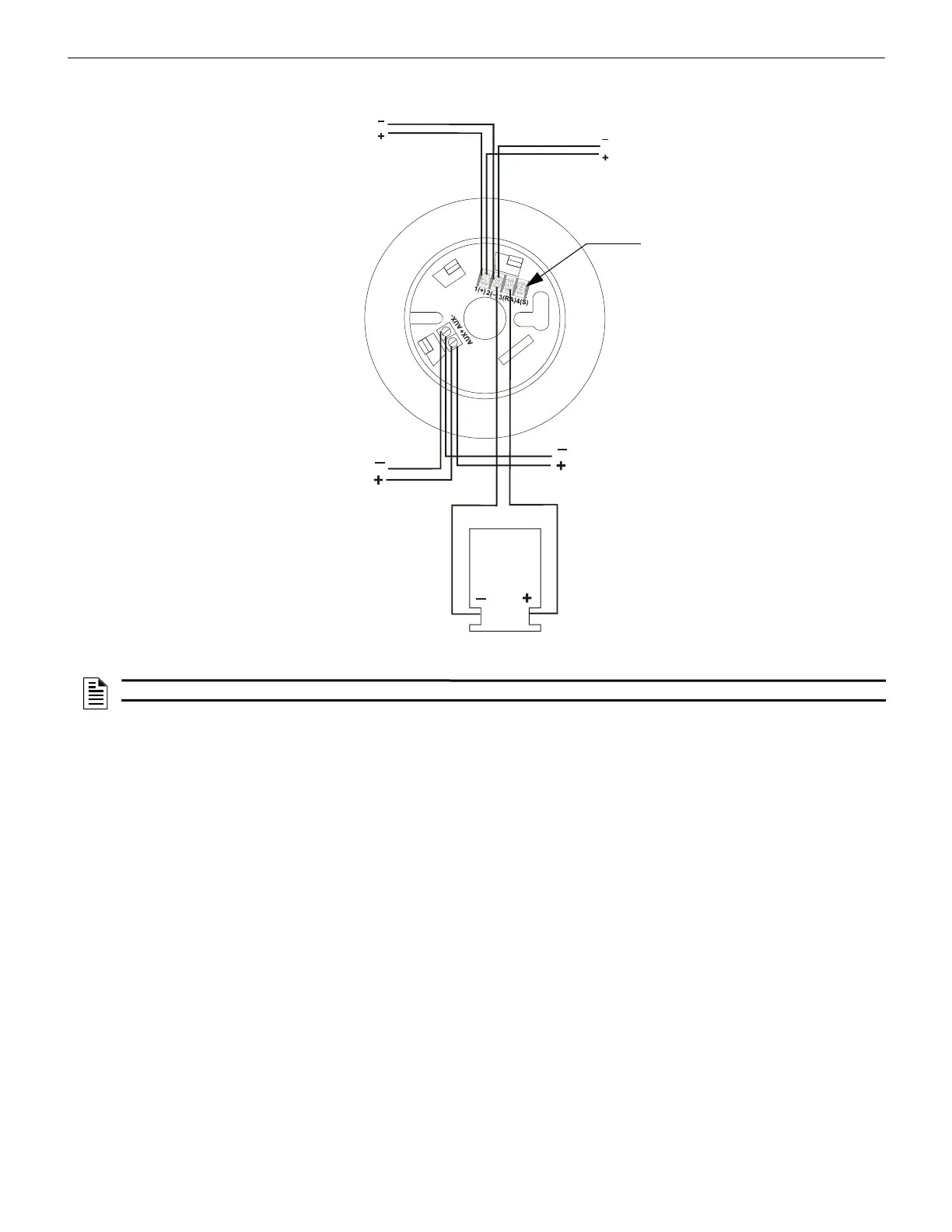

Figure 10.2 shows typical wiring of the B710HD detector base (for use with a HARSH™ detector) connected to an SLC. An optional
RA100Z Remote LED Annunciator is shown connected to the base.
RA100Z
Remote LED
Annunciator
(Optional)
SLC
To next device
on SLC
Power to next
device
B
7
1
0
H
D
.
w
m
f
For connection of
cable shield
To compatible
UL Listed
Power Supply
Figure 10.2 Wiring of the B710HD Detector Base
NOTE: Use a spade lug to wire the Remote LED Annunciator (–) to Terminal 2 (–).
