Wiring and Programming Aspiration Detectors Intelligent Detectors, Intelligent Detector Bases, and Wireless Gateway
Intelligent FAAST Detectors
The FSA-5000 Intelligent FAAST XS, FSA-8000 Intelligent FAAST XM, FSA-20000 Intelligent FAAST XT, and FSA-20000P
Intelligent FAAST XT PRO aspiration smoke detectors may be used to provide early warning fire protection using aspiration sensing
technology. These detectors are listed with UL for use with the NFS-320, NFS-320SYS, NFS2-640, and NFS2-3030. Discontinued
December 2018.
Figure 10.10 shows how to wire the FSA-5000 detector on an SLC loop. Figure 10.11 shows how to wire the FSA-8000 detector on an
SLC loop. Figure 10.12 shows how to wire the FSA-20000/FSA-20000P detectors on an SLC loop. To program the addressable pipes on
the Intelligent FAAST XT PRO, use VeriFire Tools. For additional installation information for these detectors, refer to the Installation
and Maintenance Instruction documents. (See Section 1.3, “Reference Documentation” for part numbers.)
T1 - POWER
+ + – –
T2 - FIRE 2
NC C OM NO
T3 - FIRE 1
T5 - FAULT
NC COM NO NC COM NO
T8 - MODBUS
Rx– G Rx+
T9 - MODBUS
Tx– G Tx+
T10
T4 - ALER T
NC C OM NO

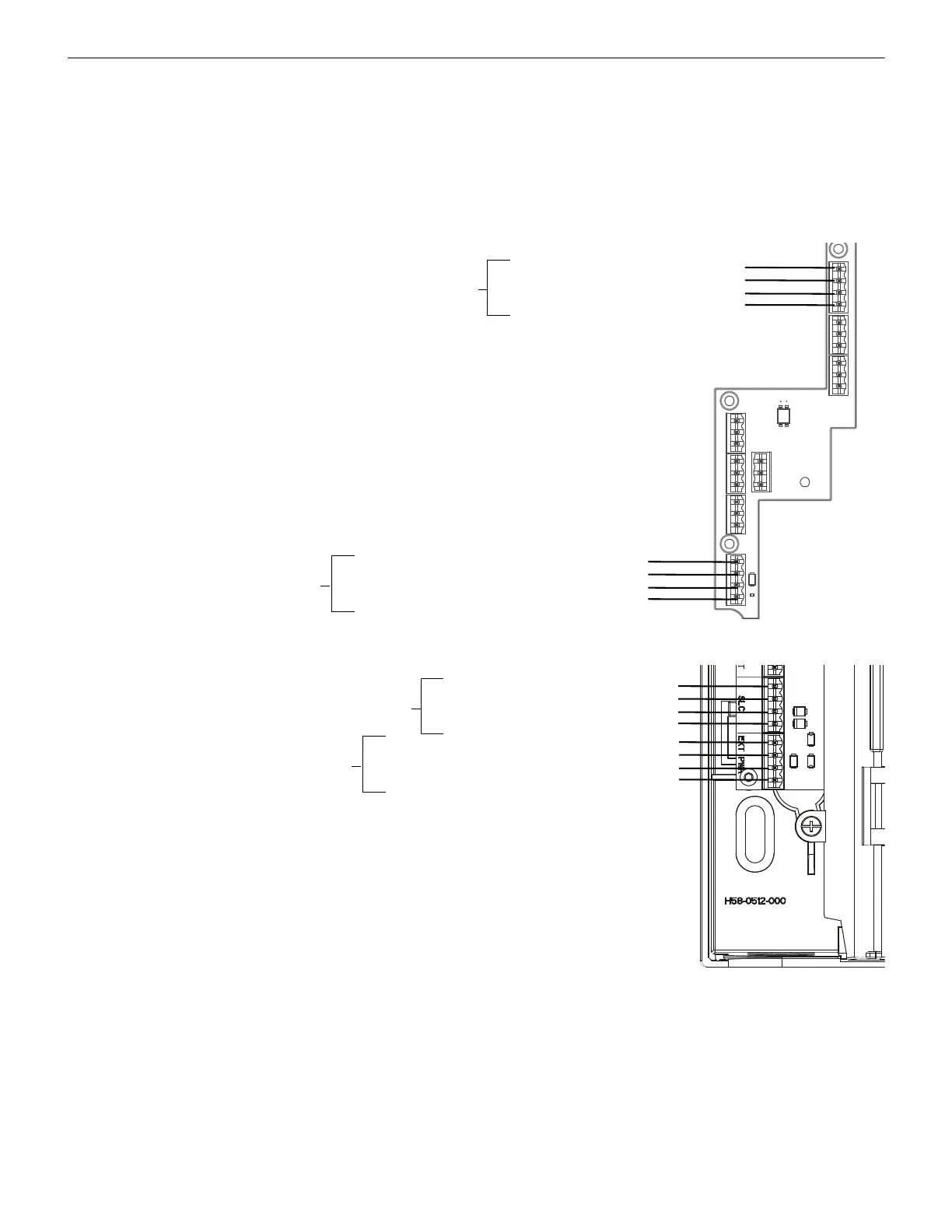

Figure 10.10 FSA-5000 Connection to the FACP
To Next SLC Device +
From FACP or Previous Device +
To Next SLC Device -
From FACP or Previous Device -
SLC
Connection
To Next Device +
From Power Supply or Previous Device +
To Next Device -
24V External
Power
From Power Supply or Previous Device -
X
S
t
e
r
m
b
l
k
s
.
w
m
f
T
e
r
m
B
l
k
.
w
m
f
To Next SLC Device +
From FACP or Previous Device +
To Next SLC Device -
From FACP or Previous Device -
Figure 10.11 FSA-8000 Connection to the FACP
To Next Device +
From Power Supply or Previous Device +
To Next Device -
SLC
Connection
24V External
Power
From Power Supply or Previous Device -
