12 ST 800 Pressure Transmitter User’s Manual Revision 15

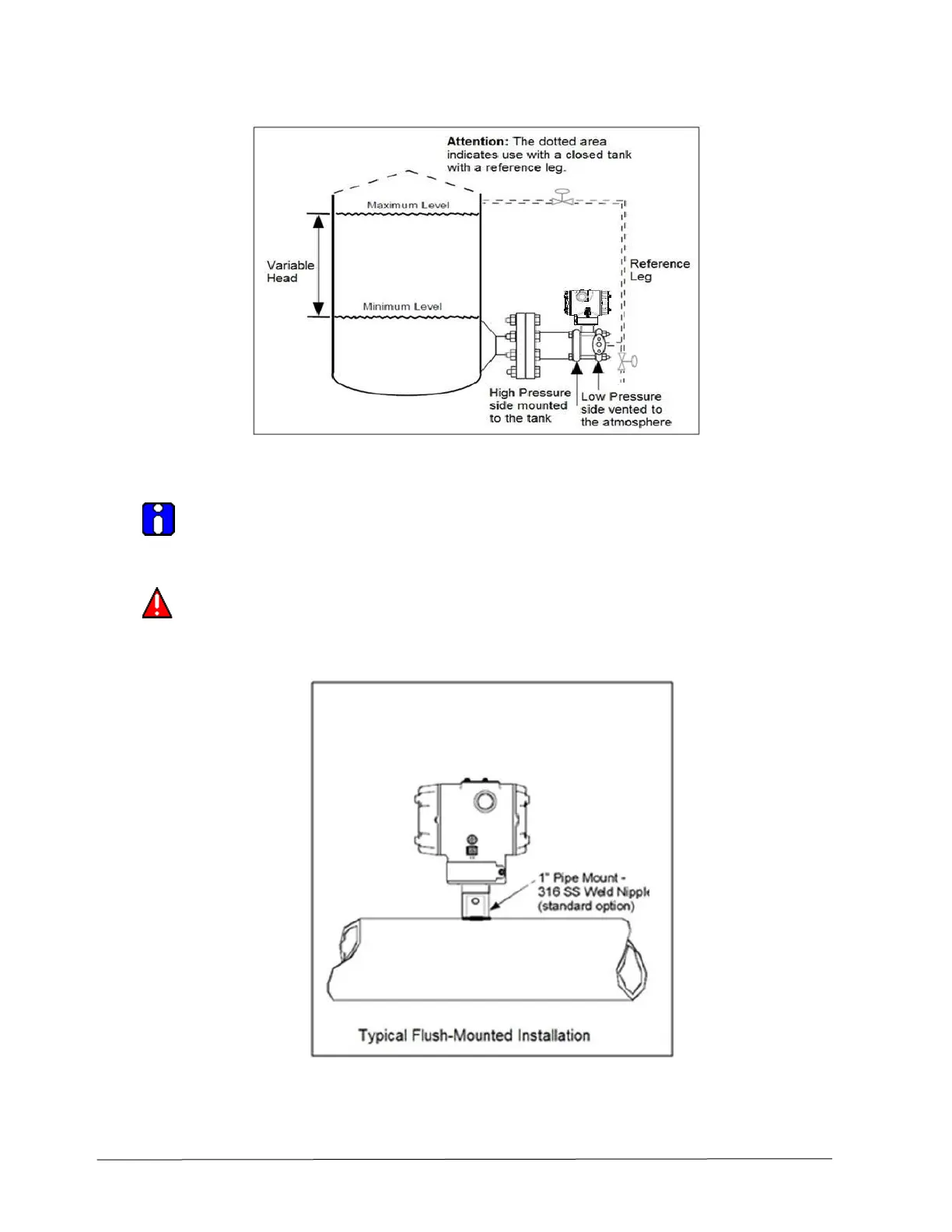

Figure 9 Tank-Flange Mounted transmitter
3.4.6 Flush Mounting Procedure
After the transmitter is mounted, the electronics housing can be rotated to the desired
position. For insulated tanks, remove enough insulation to accommodate the mounting sleeve
and/or the flange extension.
Mount the transmitter flanges within the limits Table 4 for the fill fluid in the capillary tubes,
with a tank at one (1) atmosphere.
Figure 10 Typical Flush and Flange Mounted Installations
