It is connected to the supervisor centre and with other peer devices via
Ethernet line (10Mb/100Mb/1Gb).
It can be supplied with an external 10-30 V DC power supply or using
POE or POE+
System Architecture

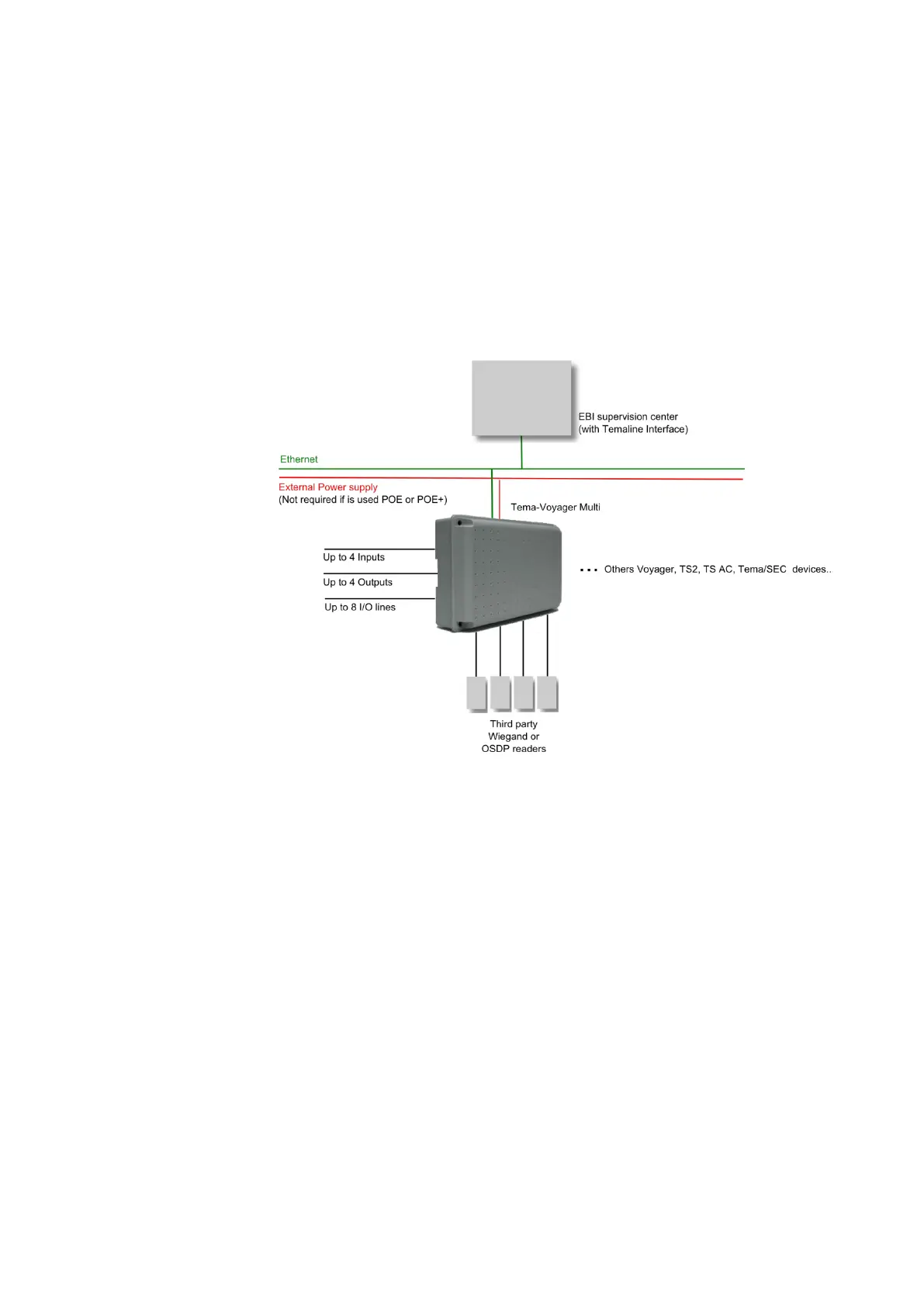

Figure 1 shows a typical system architecture in which Multi is inserted.
Figure 1 – Multi system architecture
The connections shown are:
• The Ethernet connection: it connects Honeywell Enterprise
Buildings Integrator™ (EBI) supervision center and in peer to
peer other Temaline peripheral devices.
• The external Power supply connection; not required if the Multi
device is supplied using POE or POE+.
• The Reader connections: to connect Multi with third party
readers (Wiegand connection and RS485/OSDP connection).
• Inputs/outputs connections
As part of the overall Temaline solution, Multi is fully compatible to
peer to peer communication with other Temaline peripheral devices
(TS-AC01, TS2, Tema/SEC, Tema ID, Tema-Voyager™ Compact).
