51
Connecting Configurable Outputs (Plug-in in slot of position 2)

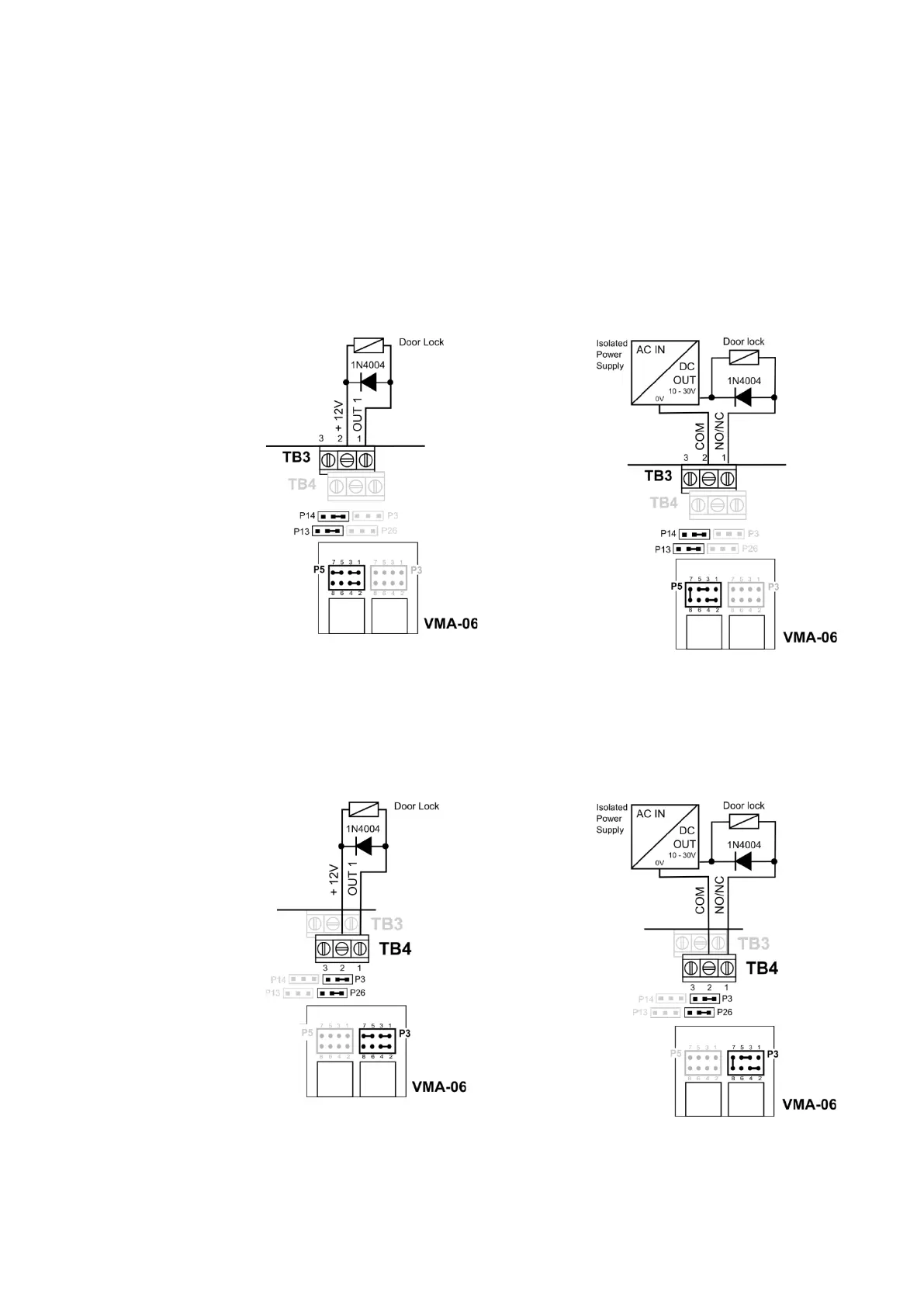

The below pictures show the connections schematics for Multi using
VMA-06 plugs-in and configurable outputs: a door lock powered by
Multi relay and a door lock power from an external power supply and
driven by an internal relay used as dry contact. VMA-06 plug-in must
be inserted in slot of position 2.
Configurable Output 3
Door Lock Powered by Multi relay
Door lock powered by external power
supply and driven by Multi relay
Relay output mode:
Power Output NO (as in above picture) or NC
Relay output mode:
Dry Contact NO (as in above picture) or
Configurable Output 4
Door Lock Powered by Multi relay
Door lock powered by external power
supply and driven by Multi relay
Relay output mode:
Power Output NO (as in above picture) or NC
Relay output mode:
Dry Contact NO (as in above picture) or
