Connecting Fixed Outputs
Fixed Output 1

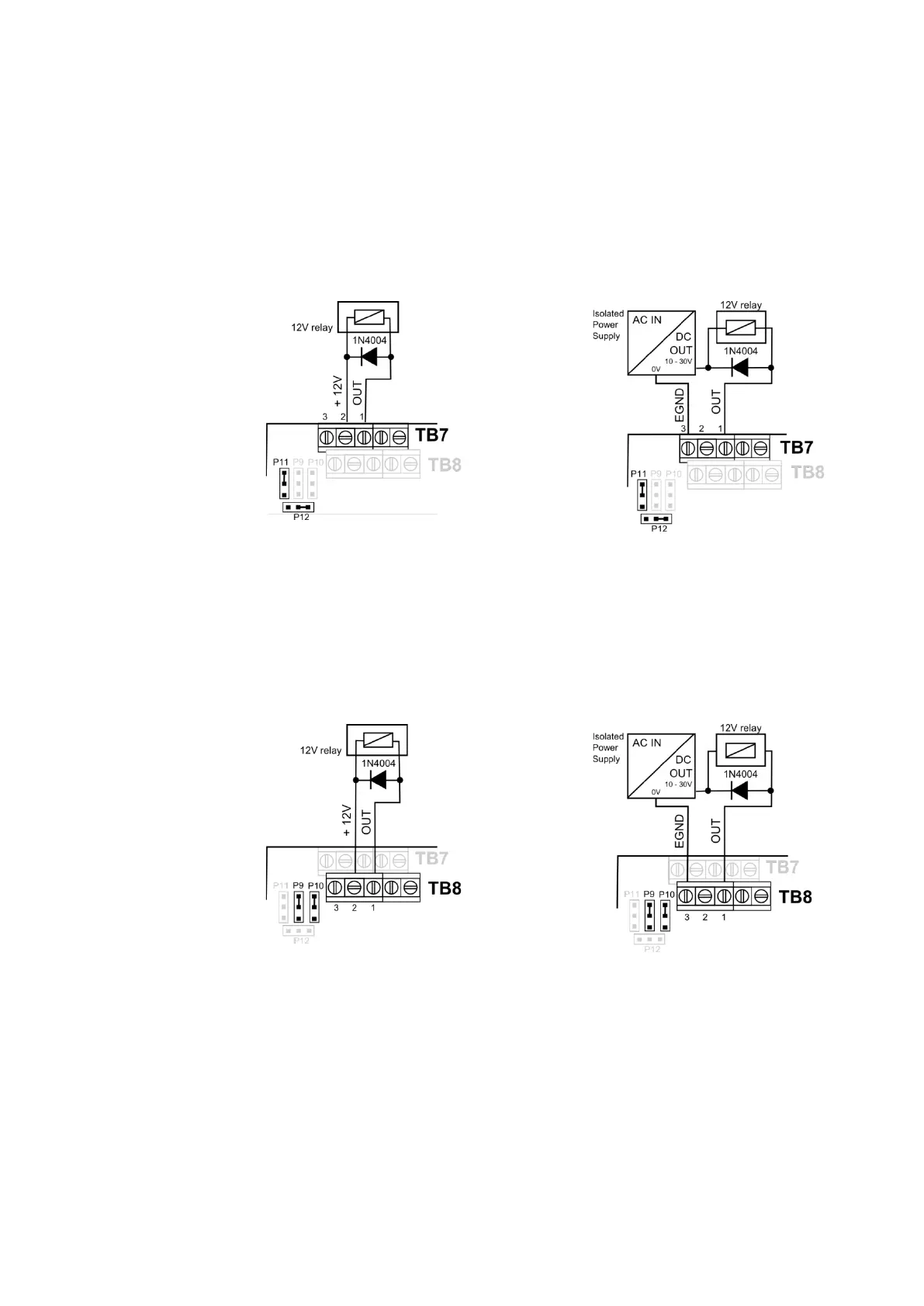

The below pictures show the connections schematics for an external
relay powered directly from Multi or from an external power supply
using fixed output 1:
External Relay Powered by Multi External relay powered by
external power supply
Fixed Output 2
The below pictures show the connections schematics for an external
relay powered directly from Multi or from an external power supply
using fixed output 2:
External Relay Powered by Multi External relay powered by
external power supply
