Connecting Fixed Outputs (Plug-in in slot of position 1)

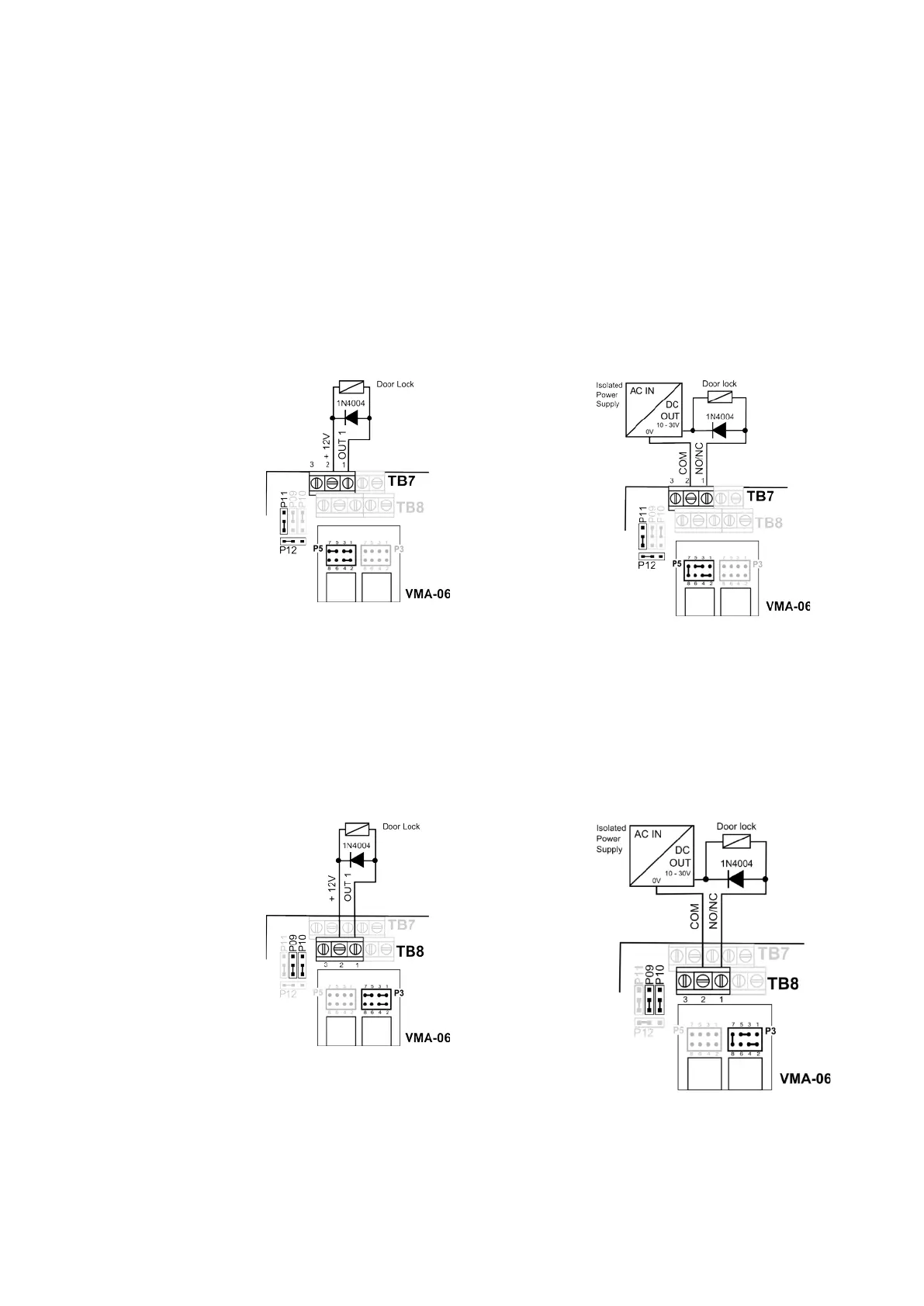

The below pictures show the connections schematics for Multi using
VMA-06 or VMA-07 plugs-in and fixed outputs: a door lock powered by
Multi relay and a door lock power from an external power supply and
driven by an internal relay used as dry contact. Wiring of outputs and
jumper configuration are done in the same way for VMA-06 and VMA-
07. VMA-06 or VMA-07 plug-in must be inserted in slot 1.
Fixed Output 1
Door Lock Powered by Multi relay
Door lock powered by external
power supply and driven by Multi
relay
Relay output mode:
Power Output NO (as in above picture) or NC
Relay output mode:
Dry Contact NO (as in above picture) or
Fixed Output 2
Door Lock Powered by Multi relay
Door lock powered by external
power supply and driven by Multi
relay
Relay output mode:
Power Output NO (as in above picture) or NC
Relay output mode:
Dry Contact NO (as in above picture) or
