Honeywell Tema-Voyager Multi VMC Series - Fixed Input 3; Fixed Input 4

31
Fixed Input 3

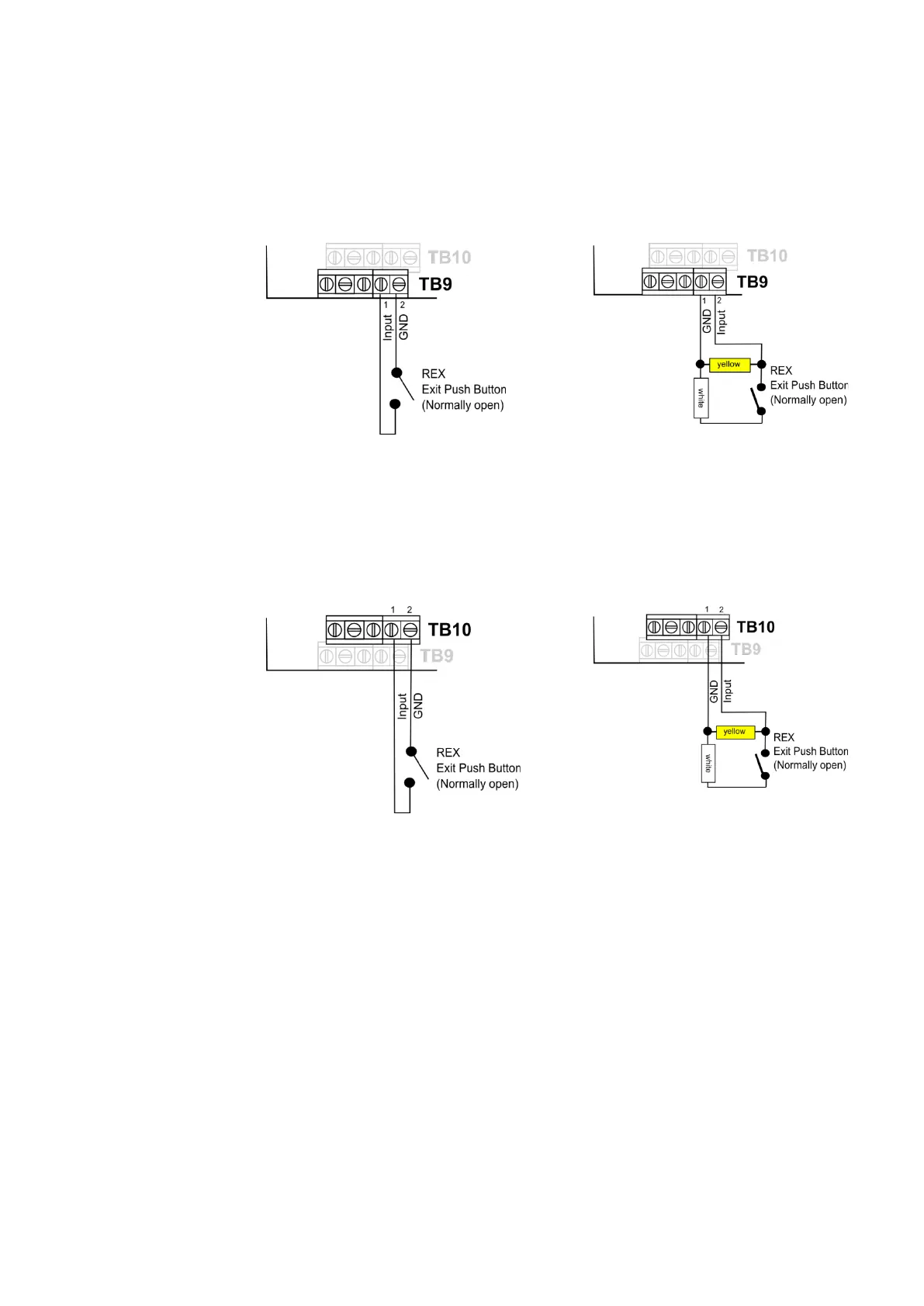

The below pictures show the connections schematics for dry contact
and supervised contact for fixed input 3:
Dry contact connection Supervised connection
Fixed Input 4
The below pictures show the connections schematics for dry contact
and supervised contact for fixed input 4:
Dry contact connection Supervised connection
