18
8. Connect the inputs/outputs
9. Connect the power supply of the device.
10. Use screws to lock the cover of the device
DIN rail mount
These are the steps needed to be followed to mount the device on a
DIN rail:
1. Determine an appropriate mounting position for the device;
keep into consideration that the wires shall be connected on the
top and bottom side of the box. To establish a common
reference the Ethernet connector should be on the right bottom
corner.
2. Plug the device back case on the DIN Rail (use screw driver if
you need to unplug it).

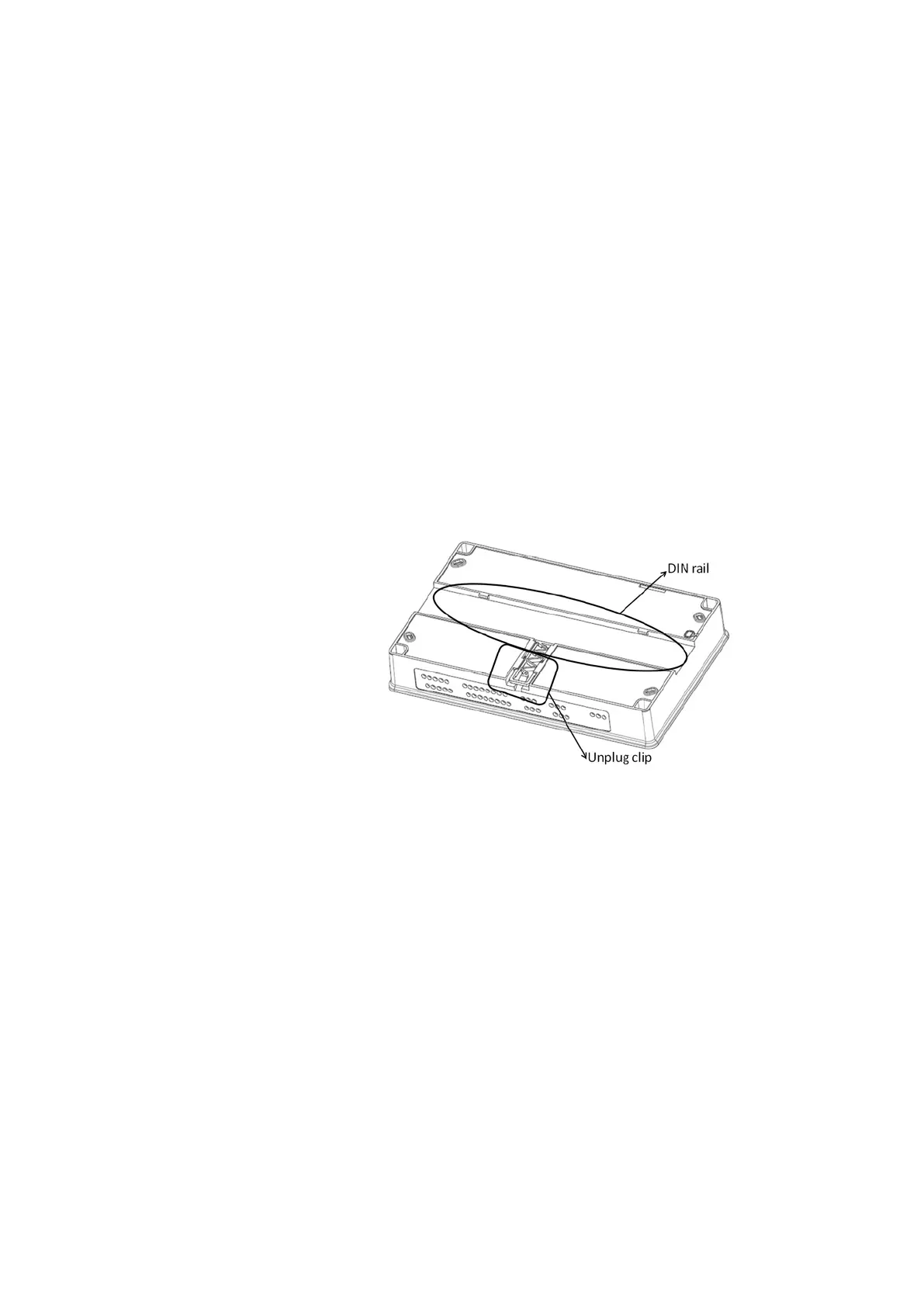

Figure 5 – Multi DIN rail and unplug clip
3. Setup jumpers for the desired configuration
4. Connect the readers
5. Connect the inputs/outputs
6. Connect the power supply of the device.
7. Use screws to lock the cover of the device
IP32 protection mount
The Voyager Multi device can be mounted to ensure IP32 protection
and so be in compliance with CEI EN-50133-1 group III - Outdoor but
sheltered from direct rain and sunshine or Indoor with extreme
environmental condition.
To achieve IP32 protection it is required to:
To Next Page
