24

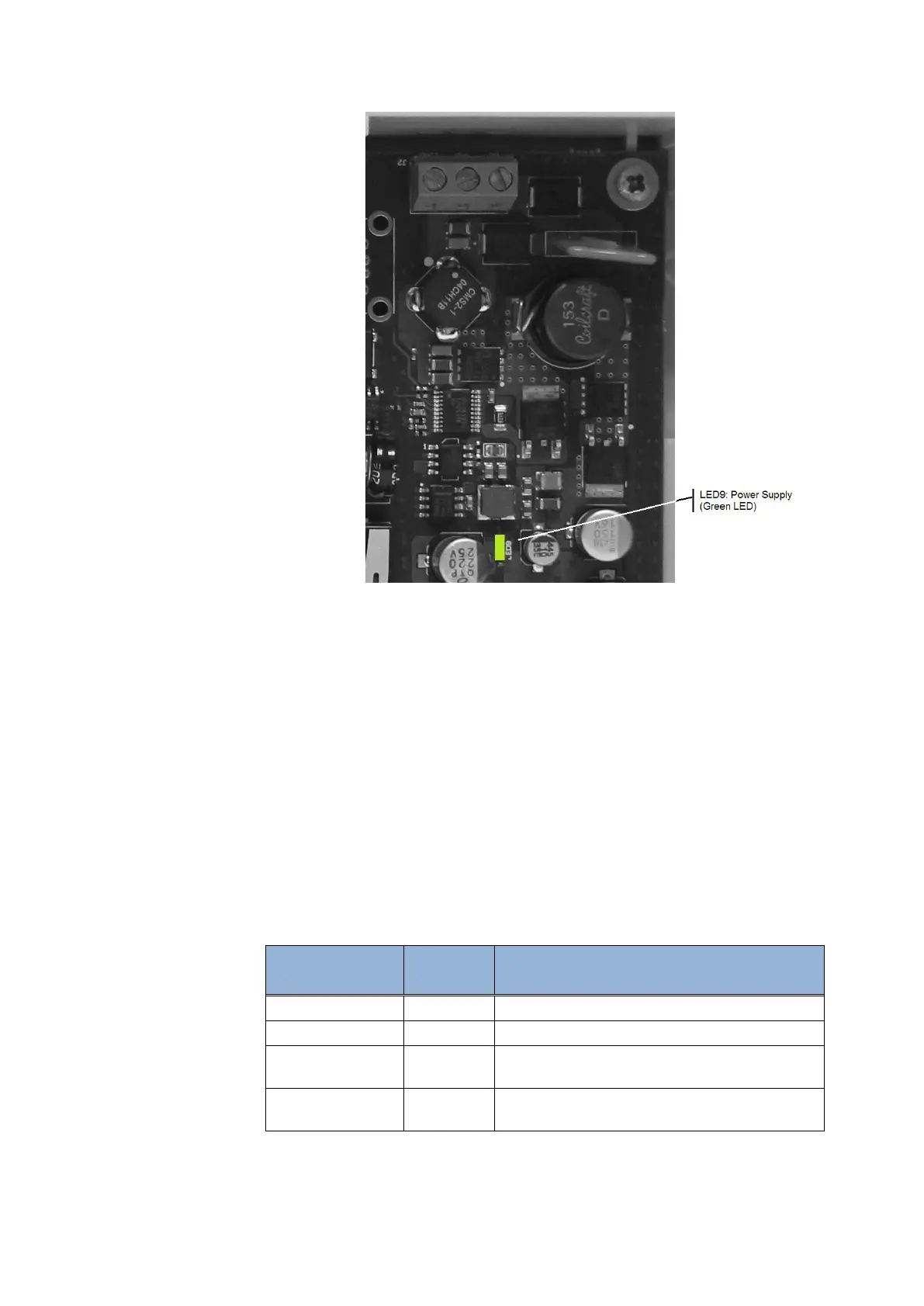

Figure 11 - Power supply LED for POE/POE+
Connecting the readers
Multi can connect up to 4 third party readers; connection can be
established using RS485 lines (for OSDP readers) or using Wiegand
line (for Wiegand readers).
The actual number of readers it is possible to connect depends from
the product code has been purchased (see: Multi device on page 12).
The connection position of the readers depends, as well, from product
code purchased:
Code Reader
number
Reader Connectors to be used
VMC-01WENN1 1 reader Reader1 (TB5)
VMC-02WENN1 2 readers Reader1 (TB5) and Reader2 (TB6)
VMC-03WENN1 3 readers Reader1 (TB5) and Reader2 (TB6) and
Reader3 (TB11)
VMC-04WENN1 4 readers Reader1 (TB5) and Reader2 (TB6) and
Reader3 (TB11) and Reader4 (TB12)
