Configurable Output 3

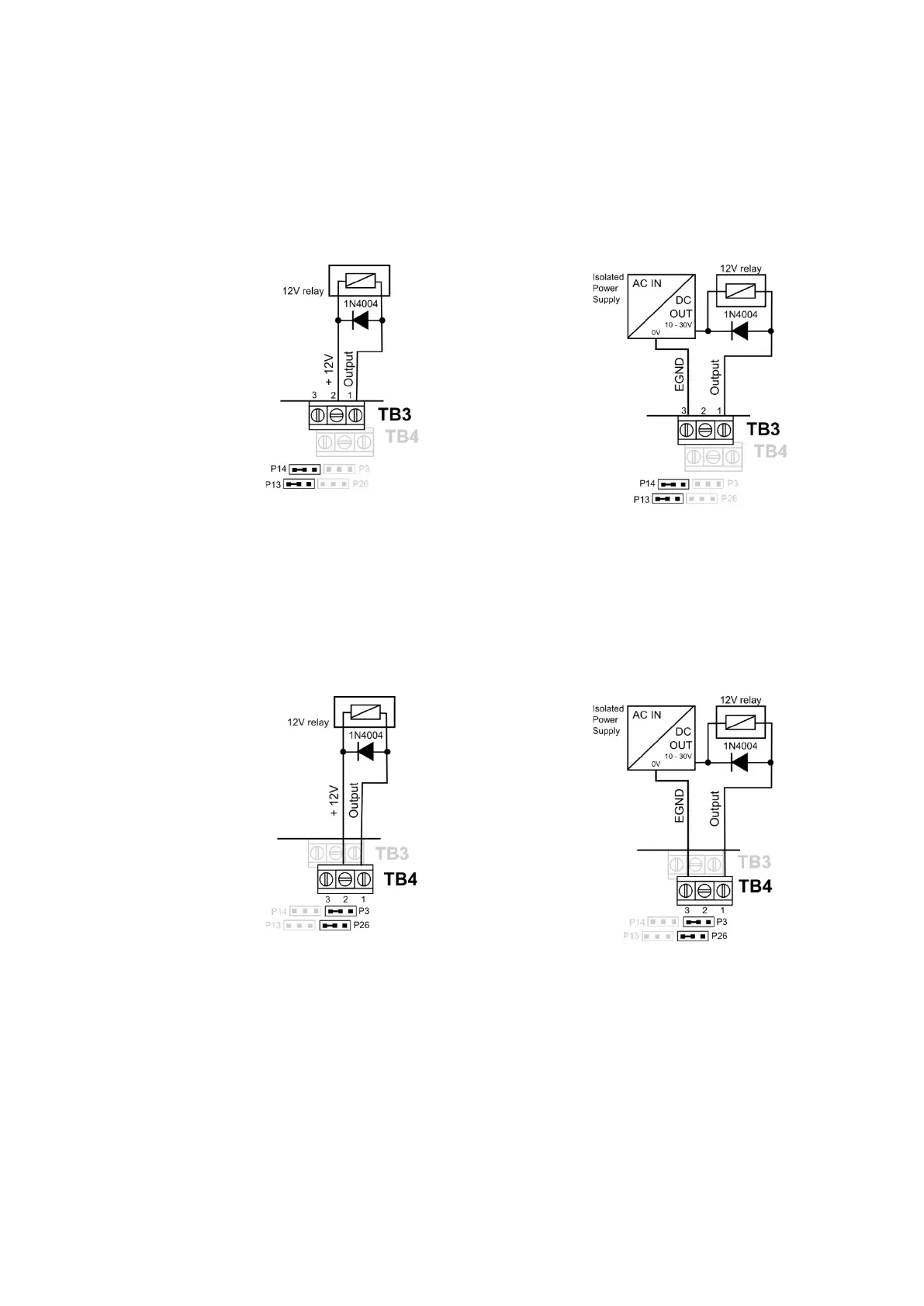

The below pictures show the connections schematics for an external
relay powered directly from Multi or from an external power supply
using configurable output 3:
External Relay Powered by Multi External relay powered by
external power supply
Configurable Output 4
The below pictures show the connections schematics for an external
relay powered directly from Multi or from an external power supply
using configurable output 4:
External Relay Powered by Multi External relay powered by
external power supply
