Honeywell Tema-Voyager Multi VMC Series - Connecting Fixed Inputs; Fixed Input 1; Fixed Input 2

30
Characteristics and connections are the same for fixed and
configurable inputs.
Connecting Fixed Inputs
Fixed Input 1

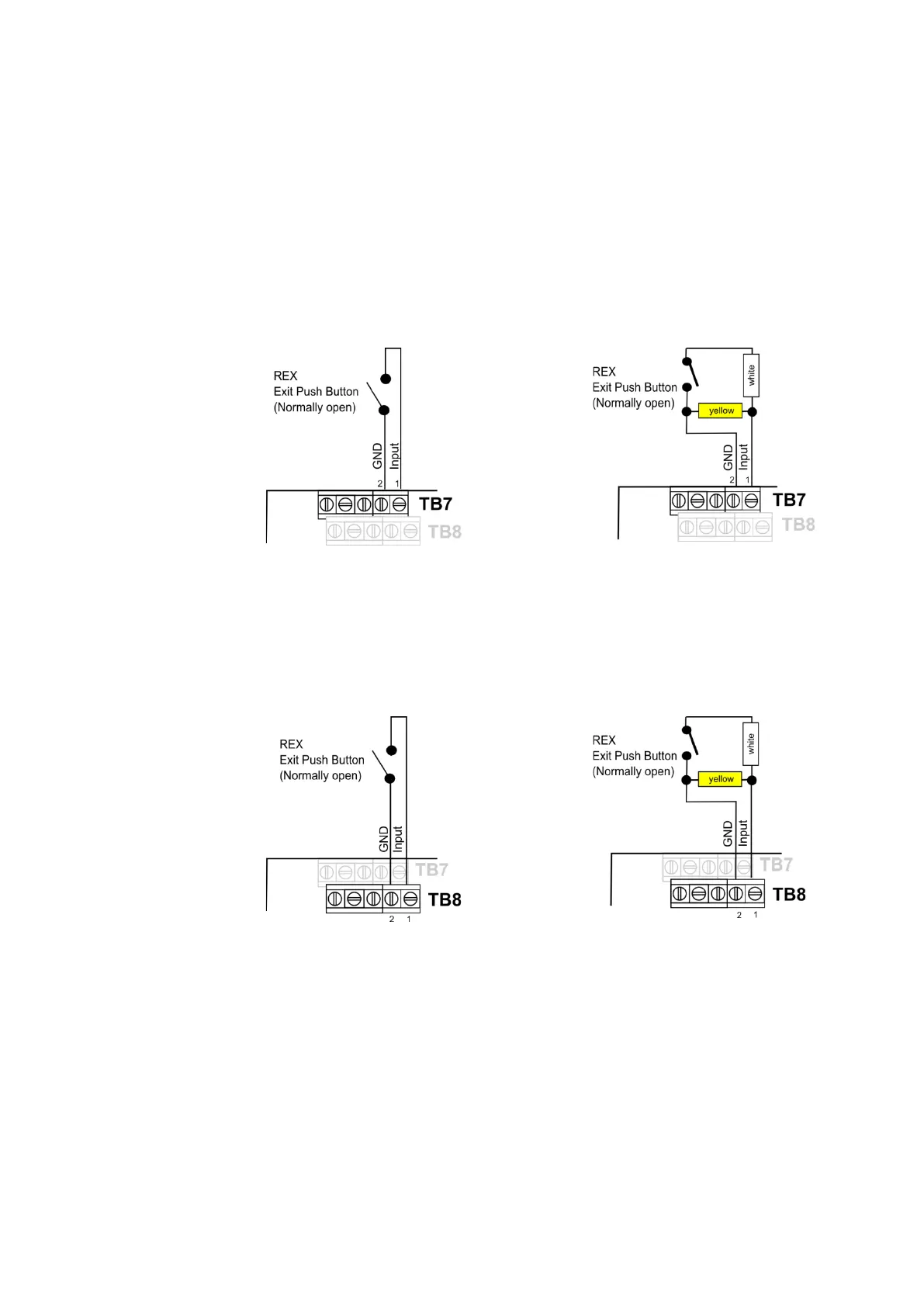

The below pictures show the connections schematics for dry contact
and supervised contact for fixed input 1:
Dry contact connection Supervised connection
Fixed Input 2
The below pictures show the connections schematics for dry contact
and supervised contact for fixed input 2:
Dry contact connection Supervised connection
