MULTI DEVICE ANATOMY

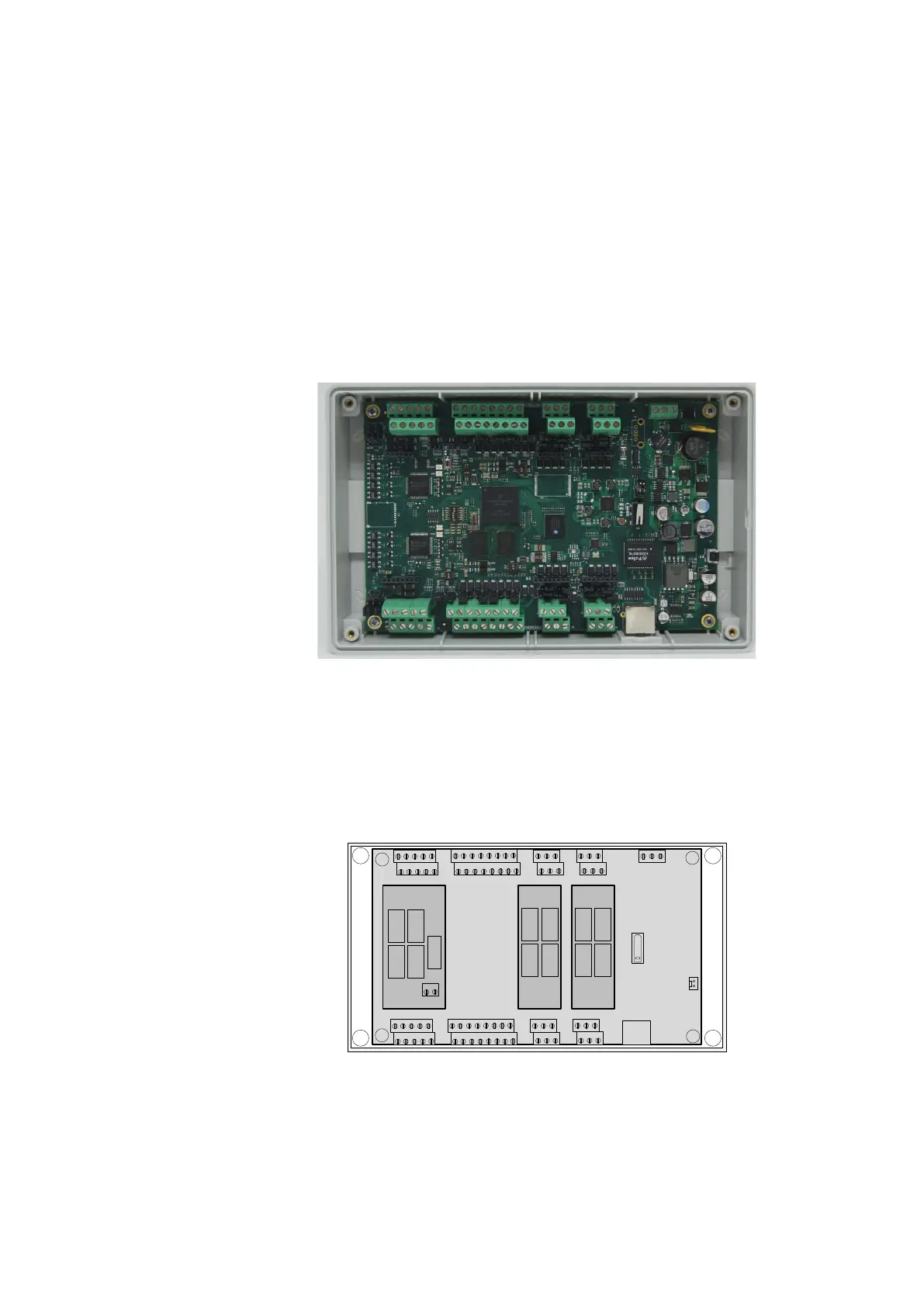

Figure 22 is a picture of the Multi device board in it case.
Figure 21 – Photo of Multi device board
Figure 22 provides a graphical representation of the MULTI device
and of the boards (Main board and VMA-0x plugs-in).
VMA-06VMA-06VMA
-06/VMA-07
MULTI
Enclosure
Figure 22 Graphical representation of Multi device and VMA-0x plugs-in
