Honeywell Tema-Voyager Multi VMC Series - Configurable Input 5; Configurable Input 6

34
Configurable Input 5

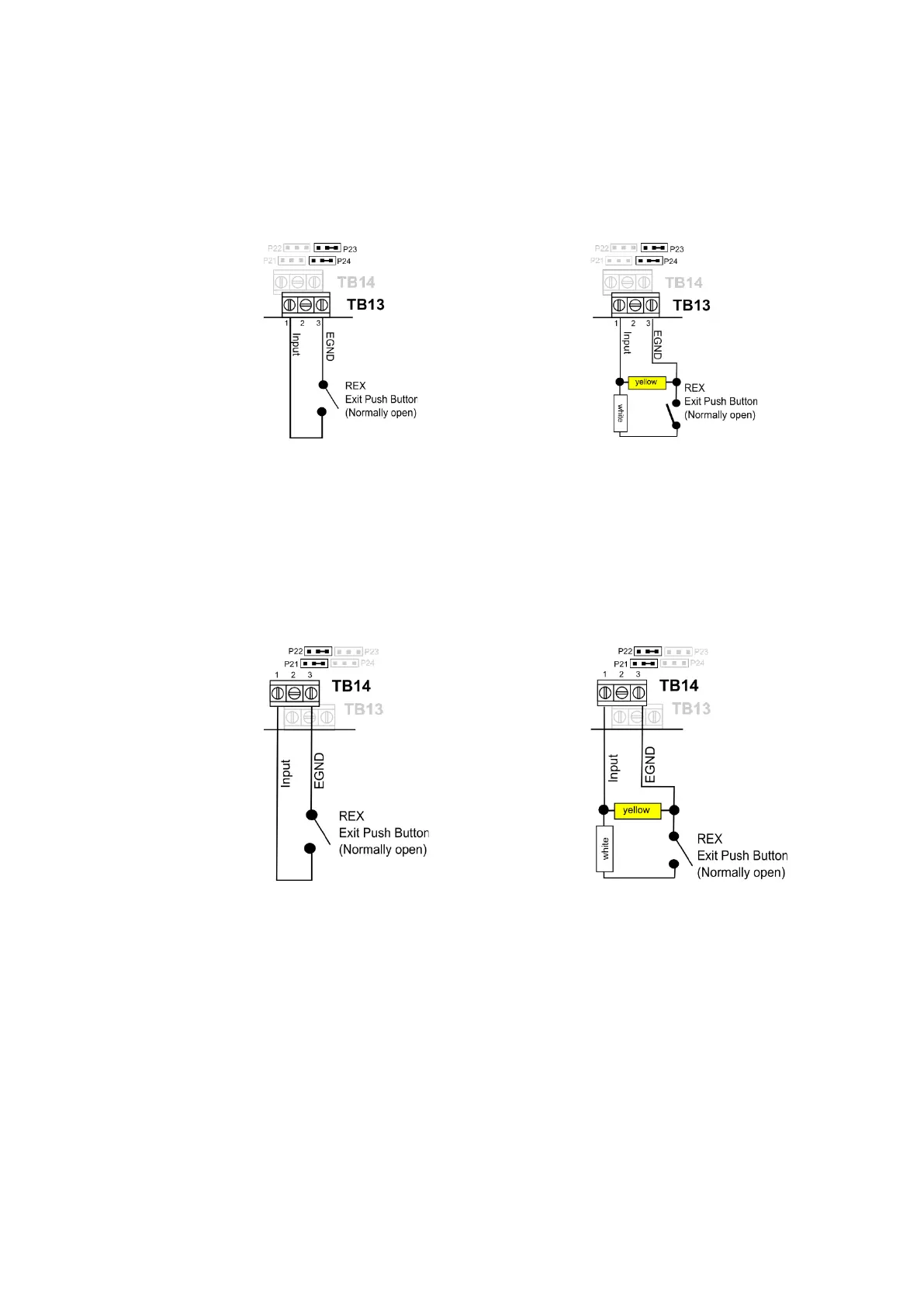

The below pictures show the connections schematics for dry contact
and supervised contact for configurable input 5:
Dry contact connection Supervised connection
Configurable Input 6
The below pictures show the connections schematics for dry contact
and supervised contact for configurable input 6:
Dry contact connection Supervised connection
