39
Connecting Configurable Outputs
Configurable Output 1

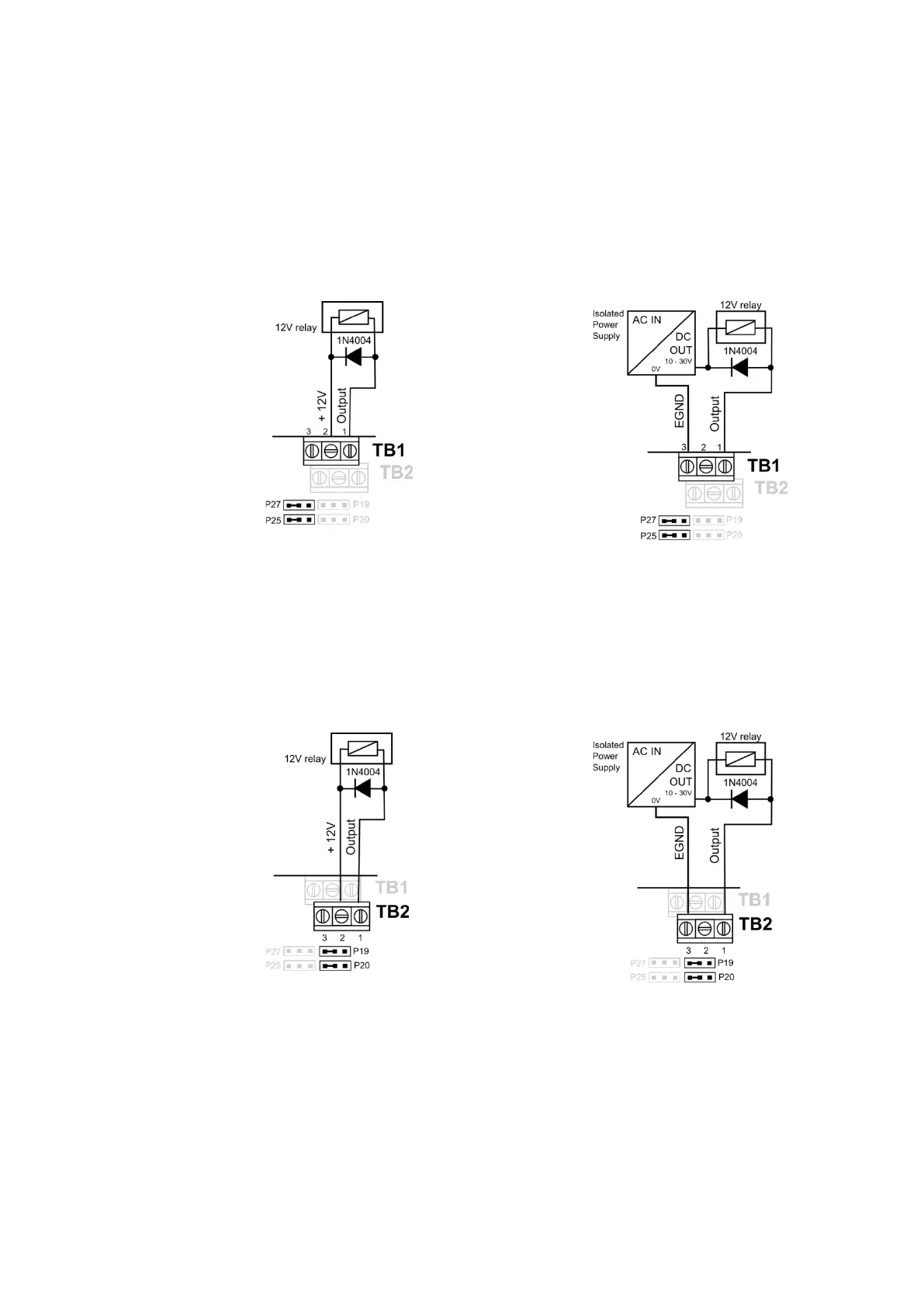

The below pictures show the connections schematics for an external
relay powered directly from Multi or from an external power supply
using configurable output 1:
External Relay Powered by Multi
External relay powered by
external power supply
Configurable Output 2
The below pictures show the connections schematics for an external
relay powered directly from Multi or from an external power supply
using configurable output 2:
External Relay Powered by Multi
External relay powered by
external power supply
