23
• Auto-MDIX: automatically detects and corrects for straight or
cross-over cables
• Error free operation up to 150mt: dependable network
performance over long distance
• > 8.0 KV ESD protection: robust operation in Harsh
environments
Check: once the Ethernet wire is properly connected and
the Multi device switched on, one of the two led LED2 or
CR18 (Ethernet physical link) must be on. Which led is
switched on depends from the speed of the network:
• LED2 (green) - Ethernet @ 10/100 Mbit/s
• CR18 (green) - Ethernet @ 1 Gbit/s
The yellow LED1 (Ethernet Communication activity) must

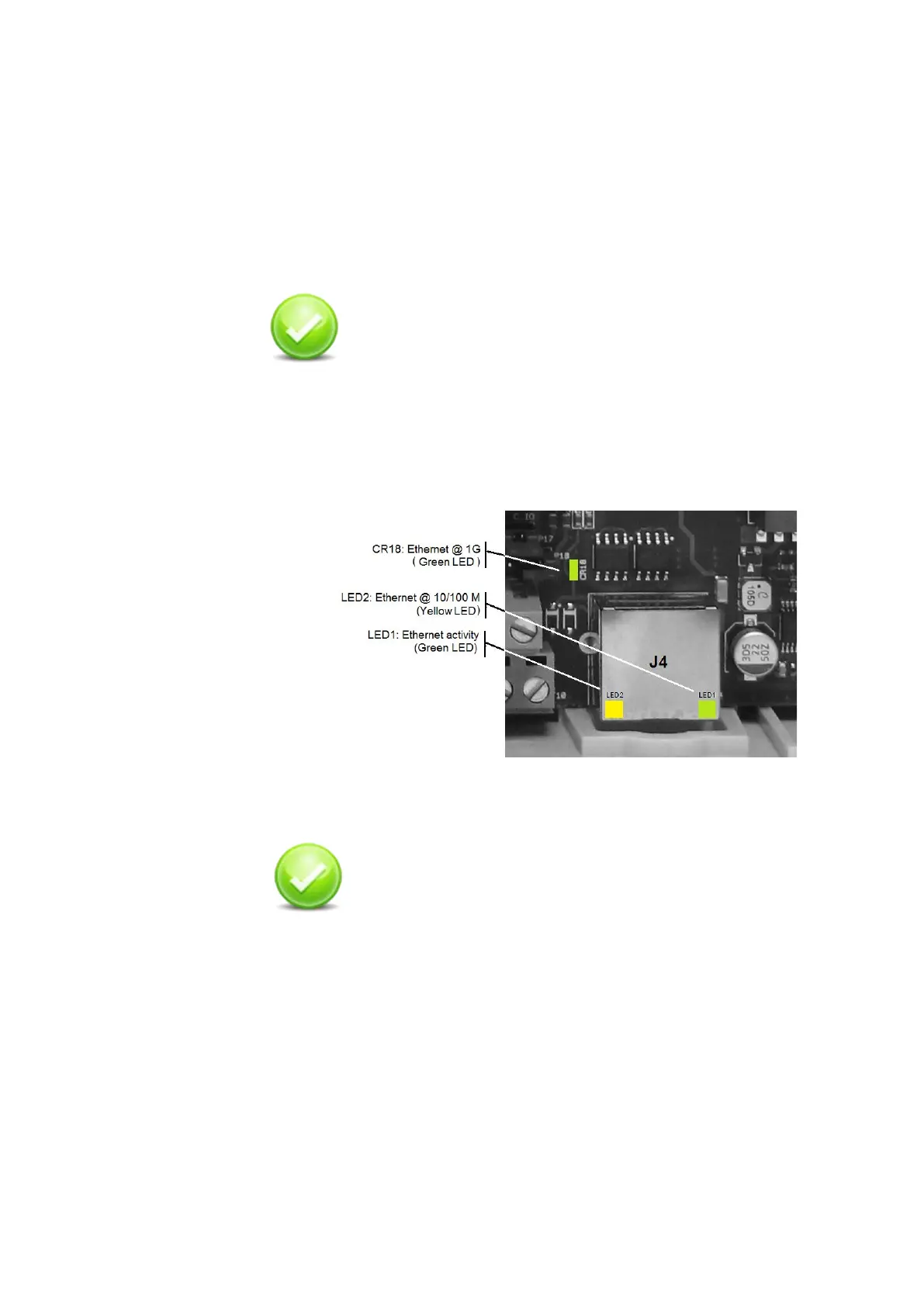

Figure 10 - Ethernet LED positions
Check: in case of use of POE or POE+ as power supply
source once connected to Ethernet the device shall power
on and the green LED9 (Power supply) must be in on
status.
