Outputs check: On Multi board are present 8 green LED
to monitor the Outputs state. To be able to use this
check the outputs must be properly configured and the
Multi switched on; Green color indicates output active
where LED switched off means output not configured or
inactive.

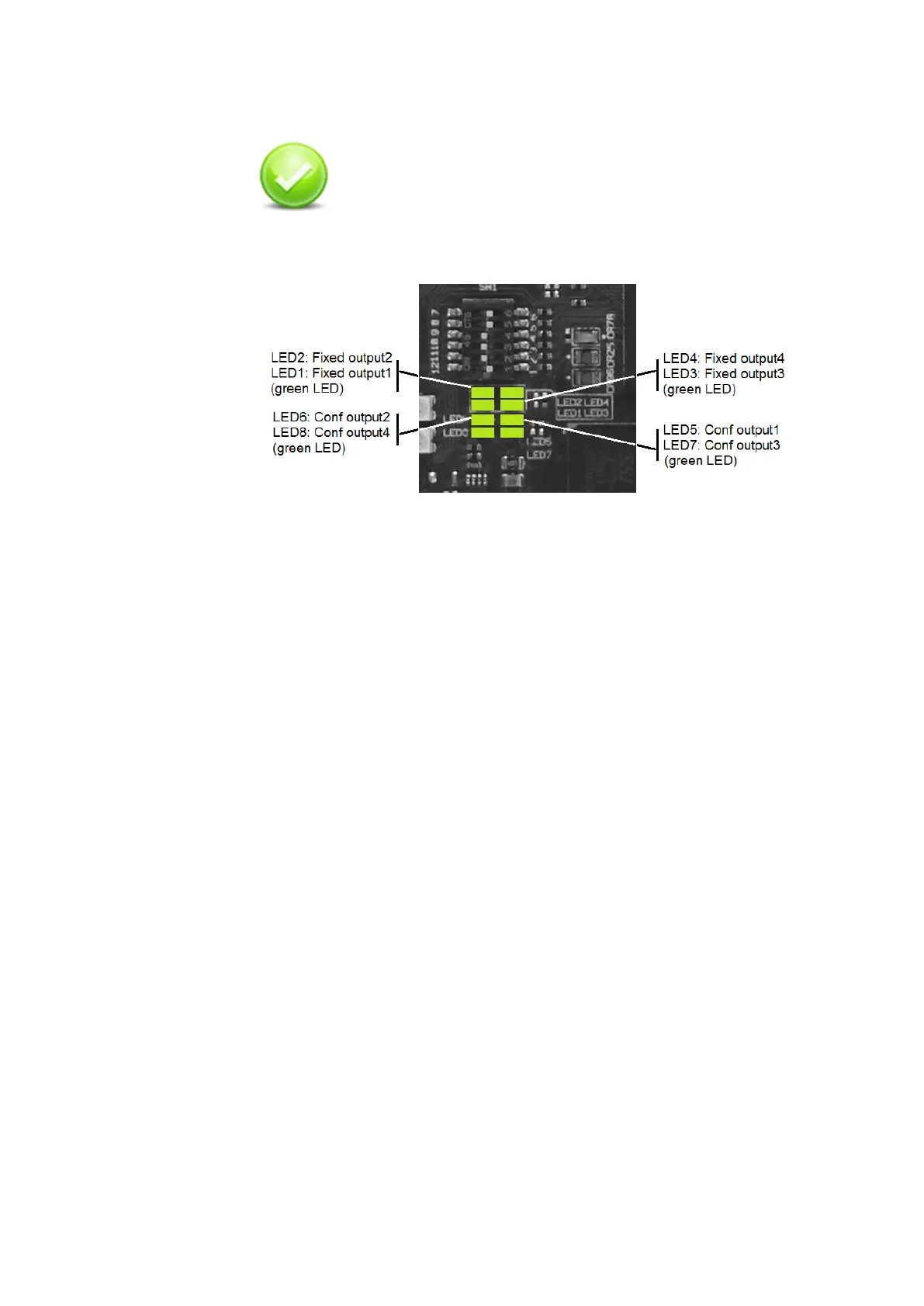

Figure 13 - Outputs monitor LED
