Honeywell Xenon Series User Manual

234 Xenon/Granit User Guide
Han Xin Code Message Length

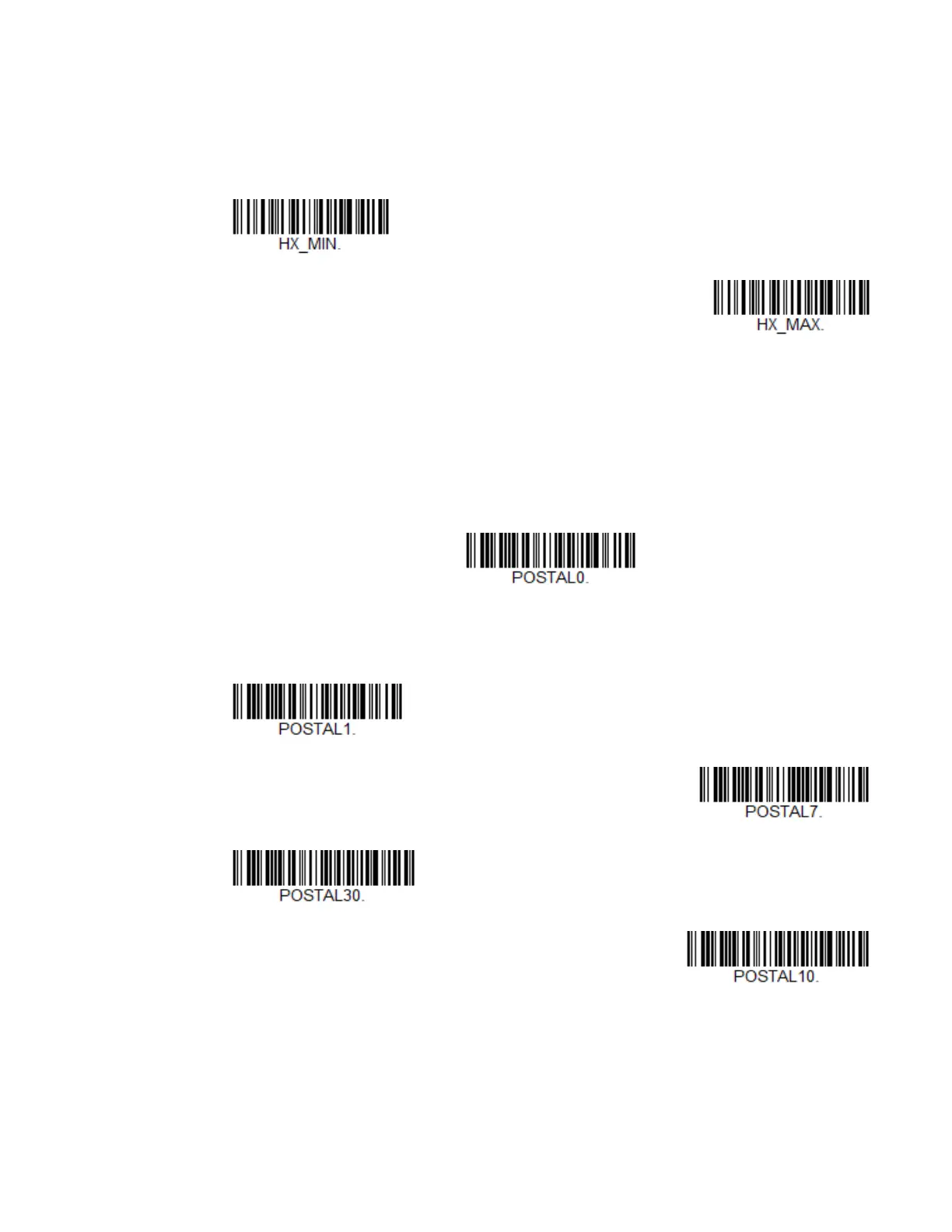

Scan the bar codes below to change the message length. Refer to Message Length
Description (page 188) for additional information. Minimum and Maximum
lengths = 1-7833. Minimum Default = 1, Maximum Default = 7833.
Postal Codes - 2D
The following lists the possible 2D postal codes, and 2D postal code combinations
that are allowed. Only one 2D postal code selection can be active at a time. If you
scan a second 2D postal code selection, the first selection is overwritten.
Default = 2D Postal Codes Off.
Single 2D Postal Codes:
Minimum Message Length
Maximum Message Length
* 2D Postal Codes Off
Australian Post On
British Post On
Canadian Post On
Intelligent Mail Bar Code On

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
