Honeywell Xenon Series User Manual

Xenon/Granit User Guide 9
Connect with RS485
A Xenon scanner or cordless base can be connected for an IBM POS terminal inter-
face. (This interface is not available in the Granit devices.)
1. Connect the appropriate interface cable to the device, then to the computer.
Note: The power supply must be ordered separately, if needed.
2. Make sure the cables are secured in the wireways in the bottom of the cordless
base and the base sits flat on a horizontal surface.
3. Turn the terminal/computer power back on. The scanner beeps.
4. Verify the scanner or cordless base operation by scanning a bar code from the
Sample Symbols, beginning on page 351. The scanner beeps once. If using a
Granit scanner, it also vibrates.
For further RS485 settings, refer to RS485,page 18.

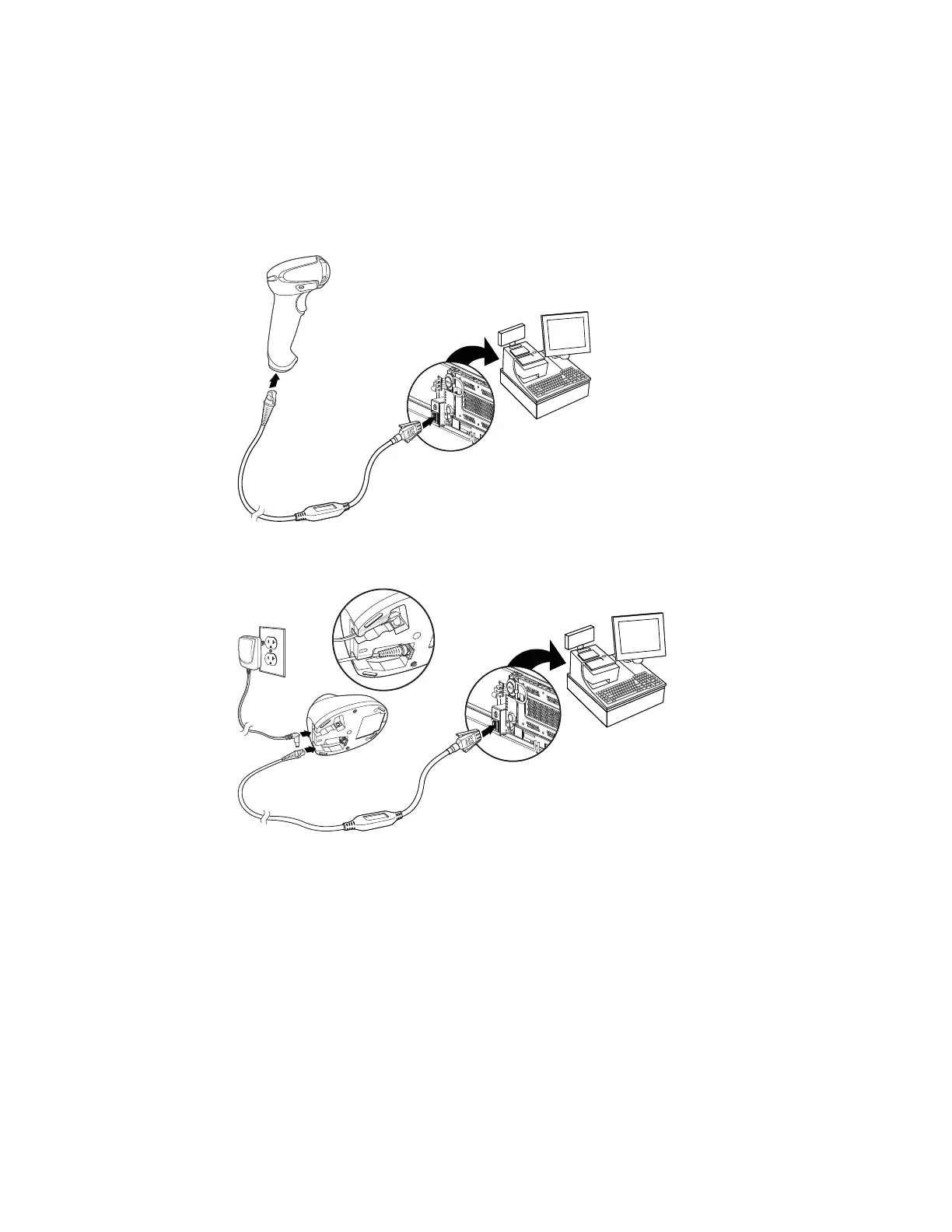

Corded Xenon Scanner RS485 Connection:
CCB01-010BT/CCB01-010BT-07N-BF Base RS485 Connection:

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
