Honeywell Xenon Series User Manual

10 Xenon/Granit User Guide
Mount a CCB01-010BT Charge Base
Mount a CCB02-100BT/CCB05-100BT Base

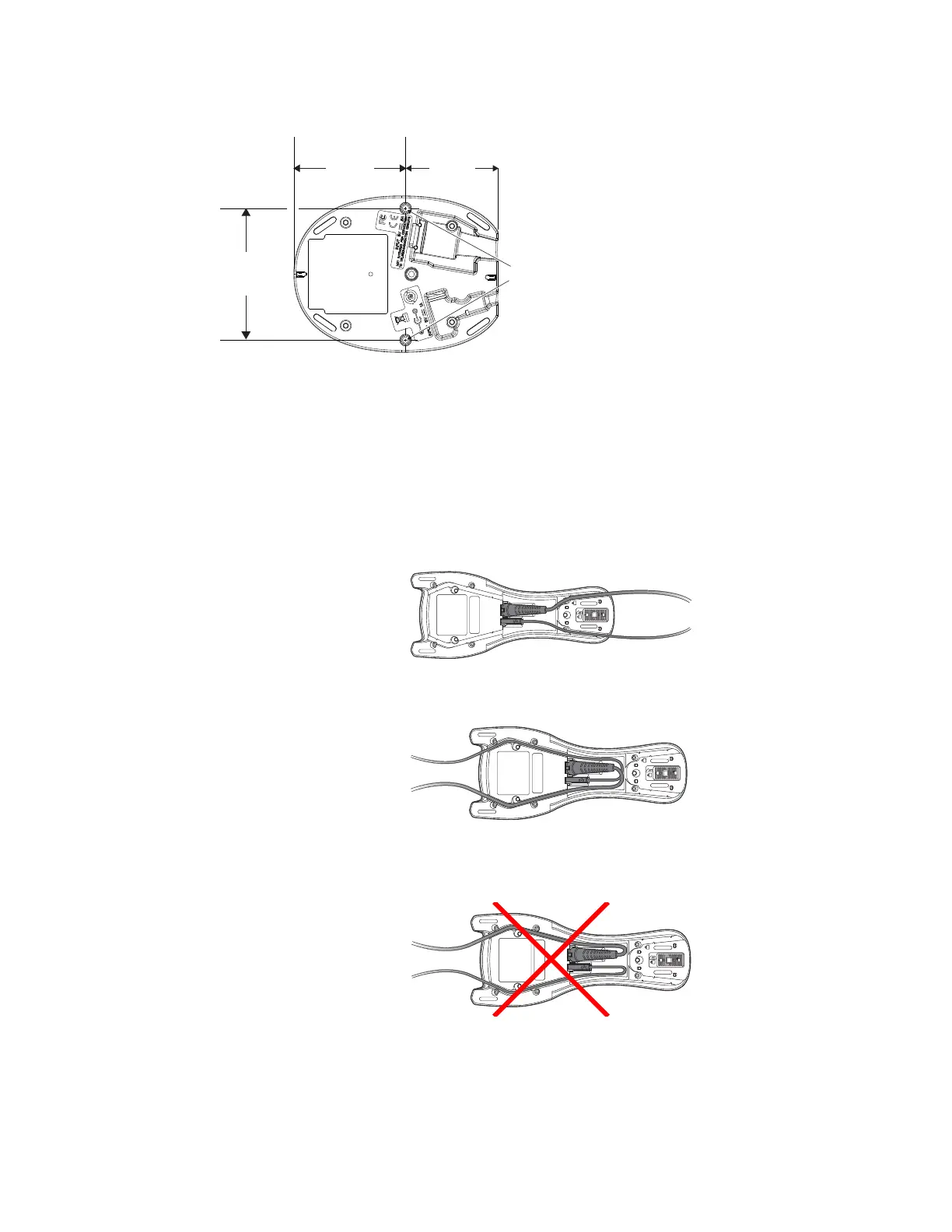

The CCB02-100BT or CCB05-100BT Base can be mounted on either a horizontal
or vertical surface. The cables can be routed through either the top or the bottom
of the base.
The cables can be routed down through the bottom of the base, securing the
cables in the wireways.
The cables can also be routed up through the top of the base, crossing them over
and securing the cables in the wireways.
When routing the cables up through the top of the base, be sure to cross the cables
over before placing in the wireways. If not, too much strain is placed on the cable
connectors.
8x32 thread
x .39 in. (10mm) deep
2.36 in.
59.84mm
3.35 in.
85.09mm
2.8 in.
72.1mm

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
