Honeywell Xenon Series User Manual

54 Xenon/Granit User Guide
Page
Page Mode
By default, the paging button on the base or Access Point pages the scanners
associated with that base or Access Point. If you want the paging button on your
base or Access Point to be disabled, scan the Page Mode Off bar code, below.
When Page Mode is off, the base or Access Point will no longer page scanners when
the button is pressed. The red LED on the base or blue LED on the Access Point will
remain lit to indicate that Page Mode is off. (This light will go out when the button
is pressed, then back on when it’s released.) Default = Page Mode On.
Note: If you are using a Xenon 1902h model, refer to Quiet Operations - LED and Volume
Settings on page 151 for additional Page Button settings.
Page Pitch
When you press the Page button on the base or Access Point, the scanners associ-
ated with that base or Access Point will begin beeping (see Page Button on page
47). You can set the pitch of the paging beep for each scanner by scanning one of
the following bar codes. Default = Low.

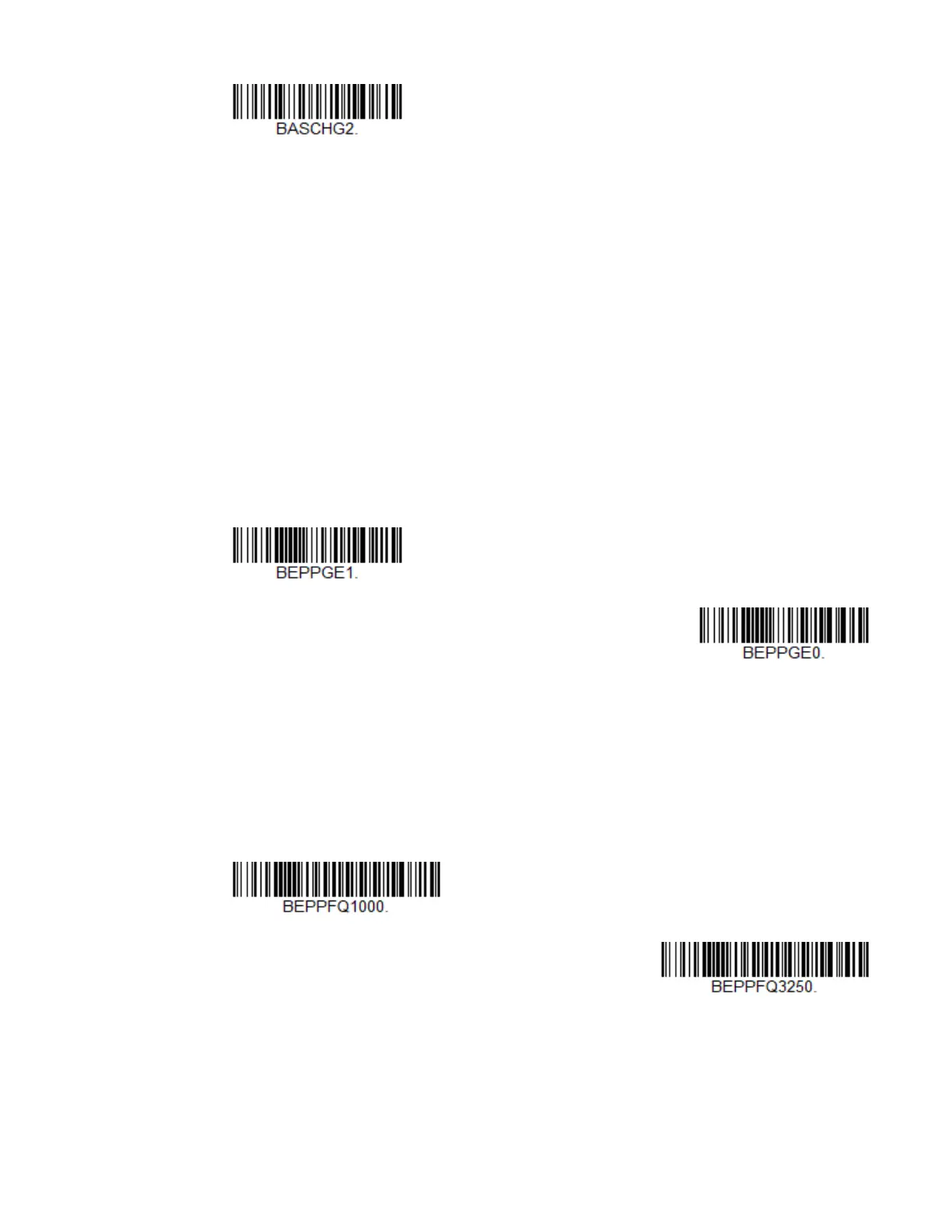

External Power Only
* Page Mode On
Page Mode Off
* Low (1000 Hz)
Medium (3250 Hz)

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
