Honeywell Xenon Series User Manual

204 Xenon/Granit User Guide
Code 128 bar codes until it reads a Code 128 bar code that does not have the
append trigger. The data is then transmitted in the order in which the bar codes
were read (FIFO). Default = Off.
Code 128 Code Page
Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the bar
code being scanned was created using a code page that is different from the one
the host program is expecting. If this is the case, scan the bar code below, select
the code page with which the bar codes were created (see ISO 2022/ISO 646
Character Replacements on page 346), and scan the value and the Save bar code
from the Programming Chart, beginning on page 353. The data characters should
then appear properly.

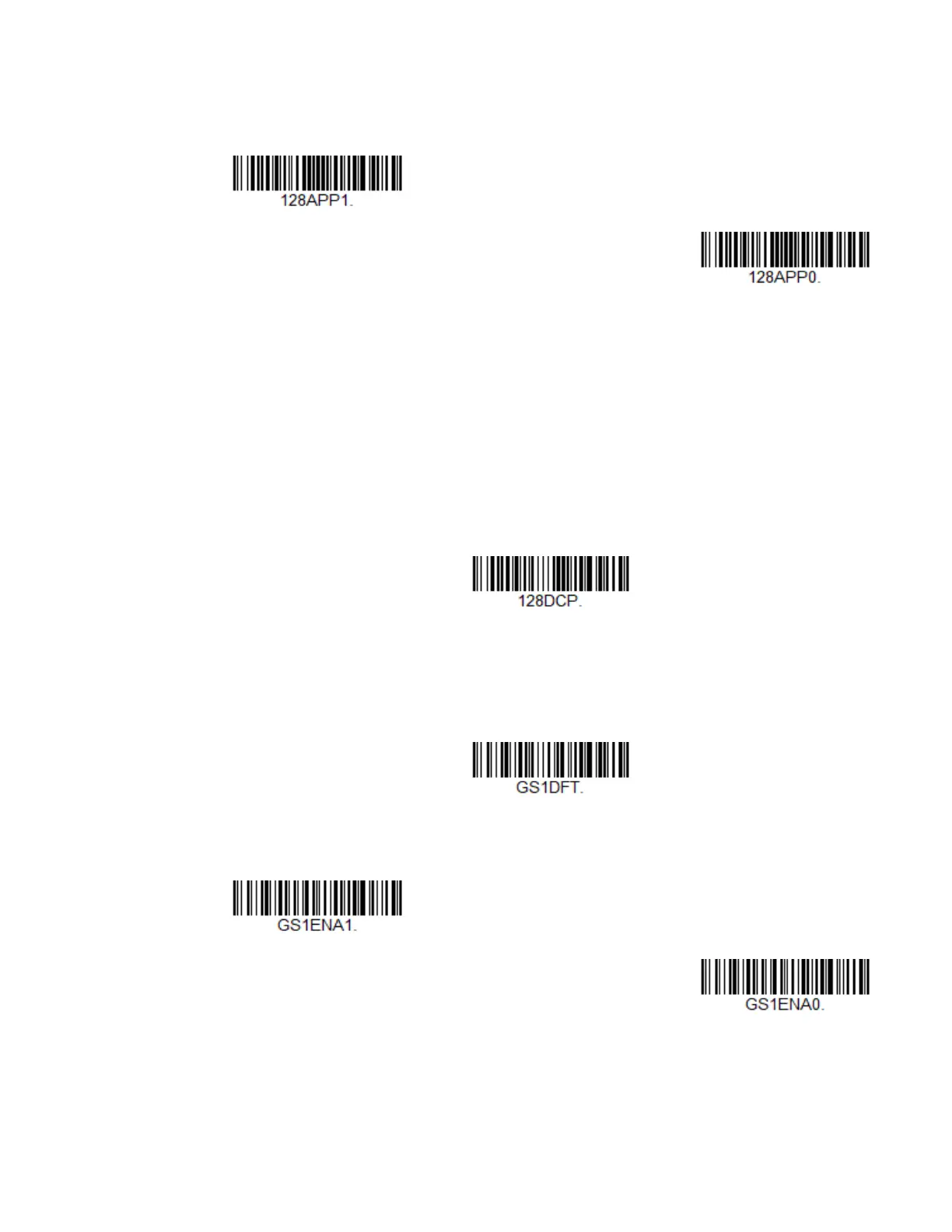

GS1-128
<Default All GS1-128 Settings>
GS1-128 On/Off
On
* Off
Code 128 Code Page
* On
Off

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
