Honeywell Xenon Series User Manual

Xenon/Granit User Guide 45
Replace a Linked Scanner
If you need to replace a broken or lost scanner that is linked to a base or an Access
Point, scan the Override Locked Scanner bar code below with a new scanner and
place that scanner in the base, or scan the Access Point linking bar code. The
locked link will be overridden; the broken or lost scanner’s link with the base or
Access Point will be removed, and the new scanner will be linked.
Communication Between the Cordless System
and the Host
The cordless scanner provides immediate feedback in the form of a “good read”
indication with a green LED on the scanner and an audible beep. If using a Granit
scanner, the scanner also vibrates. This indicates that the bar code has been
scanned correctly and the base or Access Point has acknowledged receiving the
data. This is possible since the cordless system provides two-way communication
between the scanner and the base or Access Point.
When data is scanned, the data is sent to the host system via the base or Access
Point. The cordless scanner recognizes data acknowledgment (ACK) from the base
or Access Point. If it cannot be determined that the data has been properly sent to
the base or Access Point, the scanner issues an error indication. You must then
check to see if the scanned data was received by the host system.

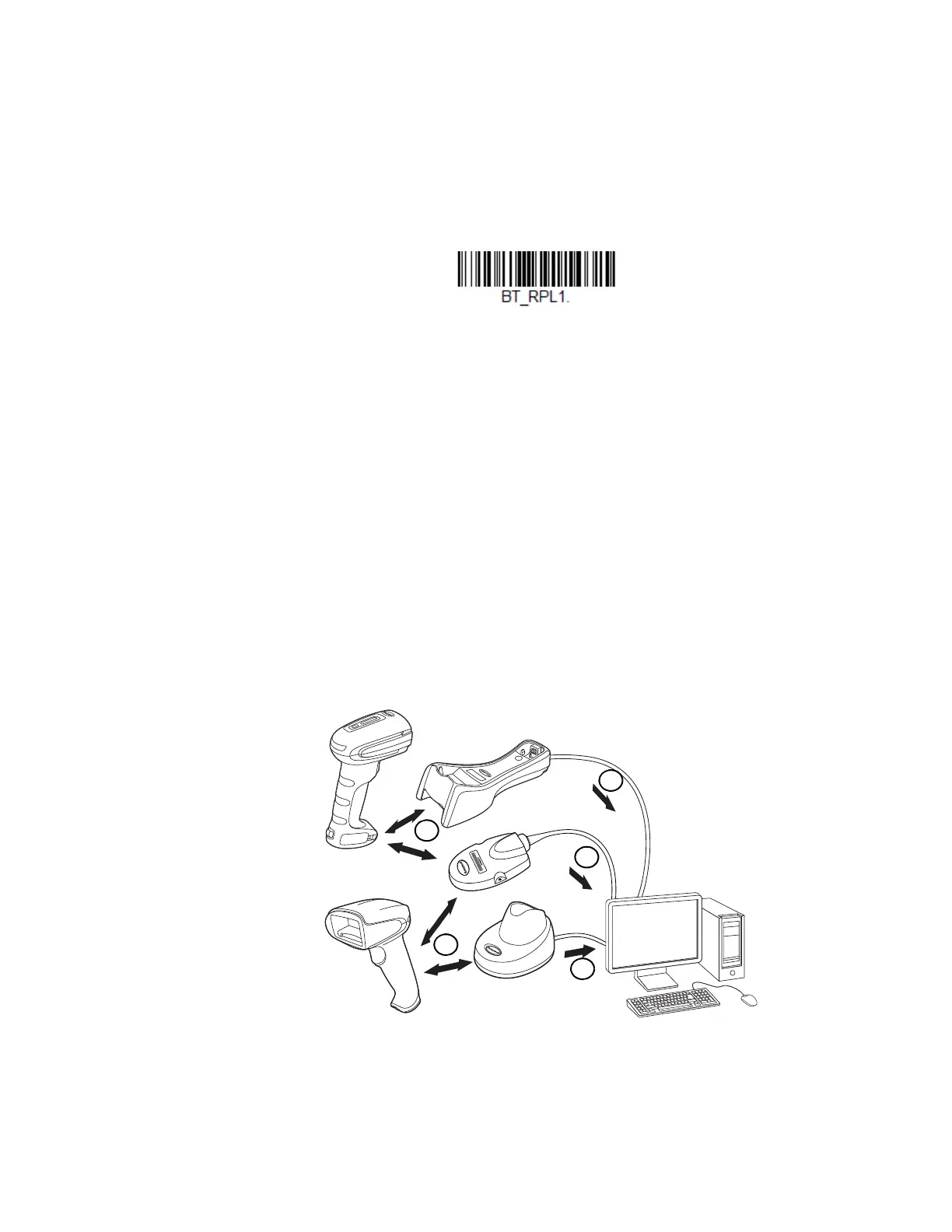

1. Scanner reads code and gets ACK from base or Access Point
2. Base or Access Point sends data to host
Override Locked Scanner
(Single Scanner)
2
1
1
2
2

Honeywell Xenon Series Specifications

General

IP Rating	IP42
Connectivity	USB, RS-232, Keyboard Wedge, IBM 46XX, Synapse, USB-CDC
Decode Capabilities	1D and 2D barcodes
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Light Levels	Ambient light up to 100, 000 lux
Field of View	Horizontal: 41.4°; Vertical: 32.2°
Interface	USB, RS-232, Keyboard Wedge, IBM 46XX
Humidity	5% to 95% (non-condensing)
Dimensions	104 mm x 71 mm x 160 mm (4.1 in x 2.8 in x 6.3 in)
Drop Resistance	Withstands 50 drops at 1.8 m (6 ft) to concrete
Drop Specification	Withstands 50 drops at 1.8 m (6 ft) to concrete
